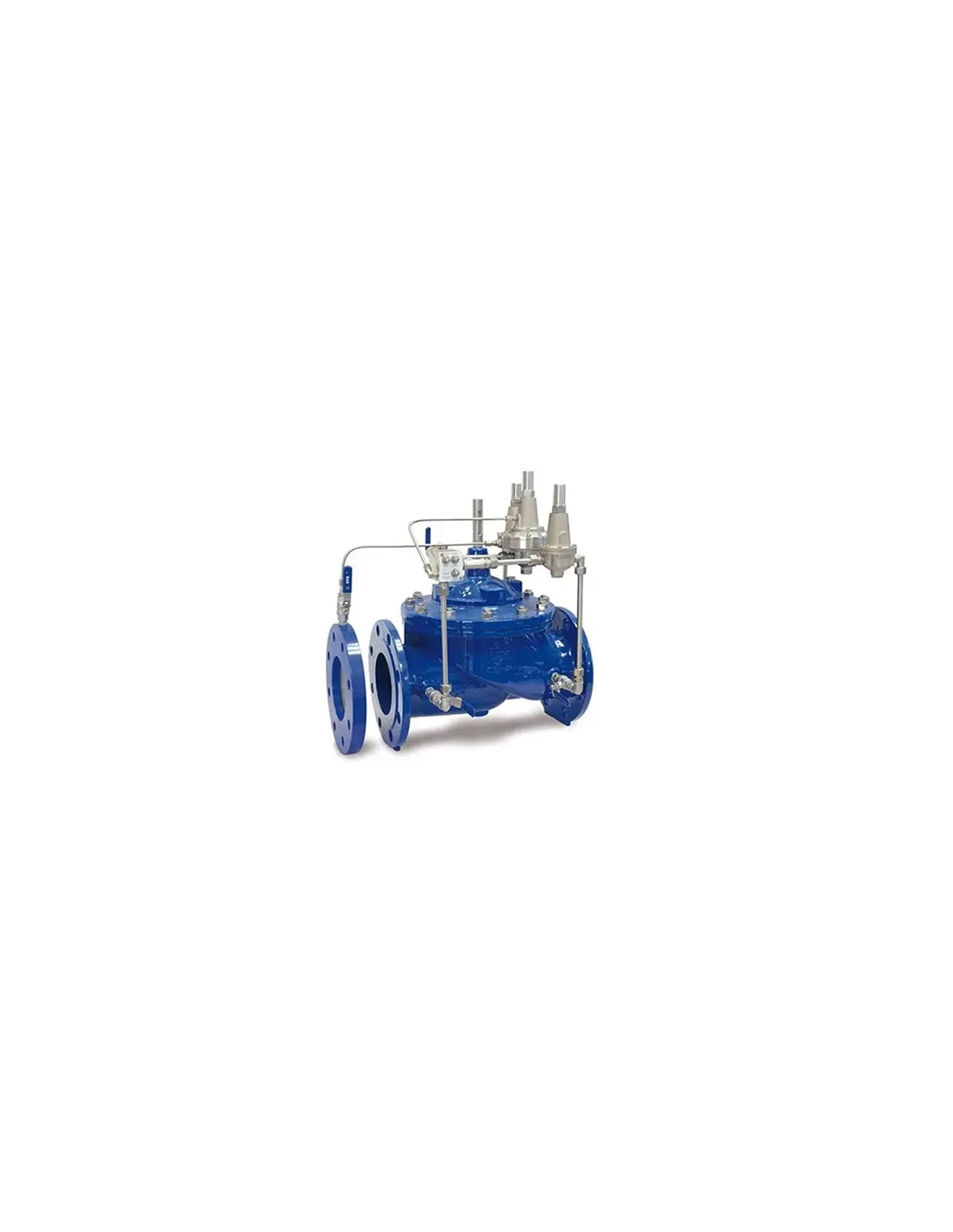

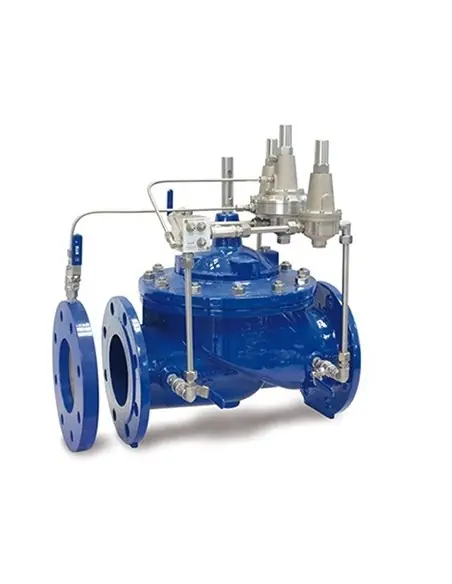

CSA XLC 310/410-ND-H PN16

The CSA XLC 310/410-ND-H is an automatic, hydraulically operated globe-type pressure reducing valve designed for water distribution networks. It features dual preset operating setpoints and enables pressure management based on network hydraulic conditions. This configuration is suitable for applications requiring dynamic downstream pressure adjustment to minimize leakage and optimize network operation.

Operating Principle

The valve integrates pressure reduction with a hydraulic switching system between two distinct setpoints. Transition between setpoints is achieved via a dedicated hydraulic control circuit, allowing downstream pressure adaptation according to network demand profiles.

This arrangement is commonly used in areas with significant consumption fluctuations between day and night operation.

Technical Specifications

  • Nominal pressure: PN16
  • Sizes: DN50 to DN400
  • Flanged connections per EN 1092-2
  • Design in accordance with EN 1074
  • Minimum pilot operating pressure: 0.7 bar
  • Operating temperature: up to 70°C
  • Suitable for treated water

Materials of Construction

  • Body and cover: ductile iron GJS 450-10
  • Seat: stainless steel
  • Internal moving parts: stainless steel and ductile iron
  • Hydraulic control circuit: stainless steel
  • Seals: EPDM elastomers
  • Epoxy coating: RAL 5005

Applications

Water Distribution Networks

  • Pressure management zones (DMA)
  • Areas with elevated night-time leakage
  • Networks with high consumption variability

Water Loss Management

  • Night pressure reduction
  • Limiting pipeline stress
  • Control of network burst frequency

Municipal and Regional Networks

  • Pressure sub-zones
  • Networks with telemetry and remote control
  • Non-revenue water (NRW) management installations

Variant Comparison: ND vs ND-H

The ND-H version is used where switching between two pressure setpoints is performed via hydraulic logic, without requiring external electrical equipment or time-based controllers.

FAQ

When is the XLC 310/410-ND-H selected?

When two distinct operating pressures are required and switching is based on network hydraulic criteria.

Typical applications?

Water supply networks aiming to reduce leakage and optimize pressure management during low demand periods.

Key sizing considerations?

  • Maximum and minimum flow rates
  • Upstream and downstream pressures
  • Required day and night pressure levels
  • Cavitation risk
  • Pipe diameter and flow velocity
  • Network control strategy
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • Ductile Cast Iron
Pressure Rating (Options)
  • PN 10
  • PN 16

Datasheet and documents

Description

Pressure reducing hydraulic valve with two set points

The CSA model XLC 310/410-ND-H is a globe pattern hydraulically operated automatic control valve that reduces and stabilizes the downstream pressure to two pre-set and adjustable values, regardless of variation in demands and upstream pressure conditions, usually corresponding to night and day regulation. The valve switches from one pressure to the other according to the flow rate, within an adjustable range.

Product features

• Body and cover in ductile cast iron GJS 450-10.

• Internals in ductile cast iron GJS 450-10 and stainless steel.

• Position indicator in stainless steel.

• Circuitry in stainless steel.

• Unit flow regulator device in stainless steel.

• Seat in stainless steel.

• Painting with fluidized bed technology RAL 5005.

Applications

• A well-planned pressure management program will extend the life of the system increasing safety and reliability. The automatic control valve CSA XLC Model 310/410-ND-H, thanks to high sensitivity pilots, is designed to automatically per form the downstream pressure regulations in two values, both adjustable, where the lower values usually corresponds to night time low consumption requirements.

Standard and connections

• Certified and tested according to EN 1074.

• Flanges size from DN 50 to DN 400 mm, higher on request.

• Flanges standard EN 1092/2, different on request.

Working conditions

• Pressure range: 10-16 bar.

• Minimum working pressure: 0.7 bar acting on the pilot.

• Treated water maximum 70°C, higher temperature on request.
