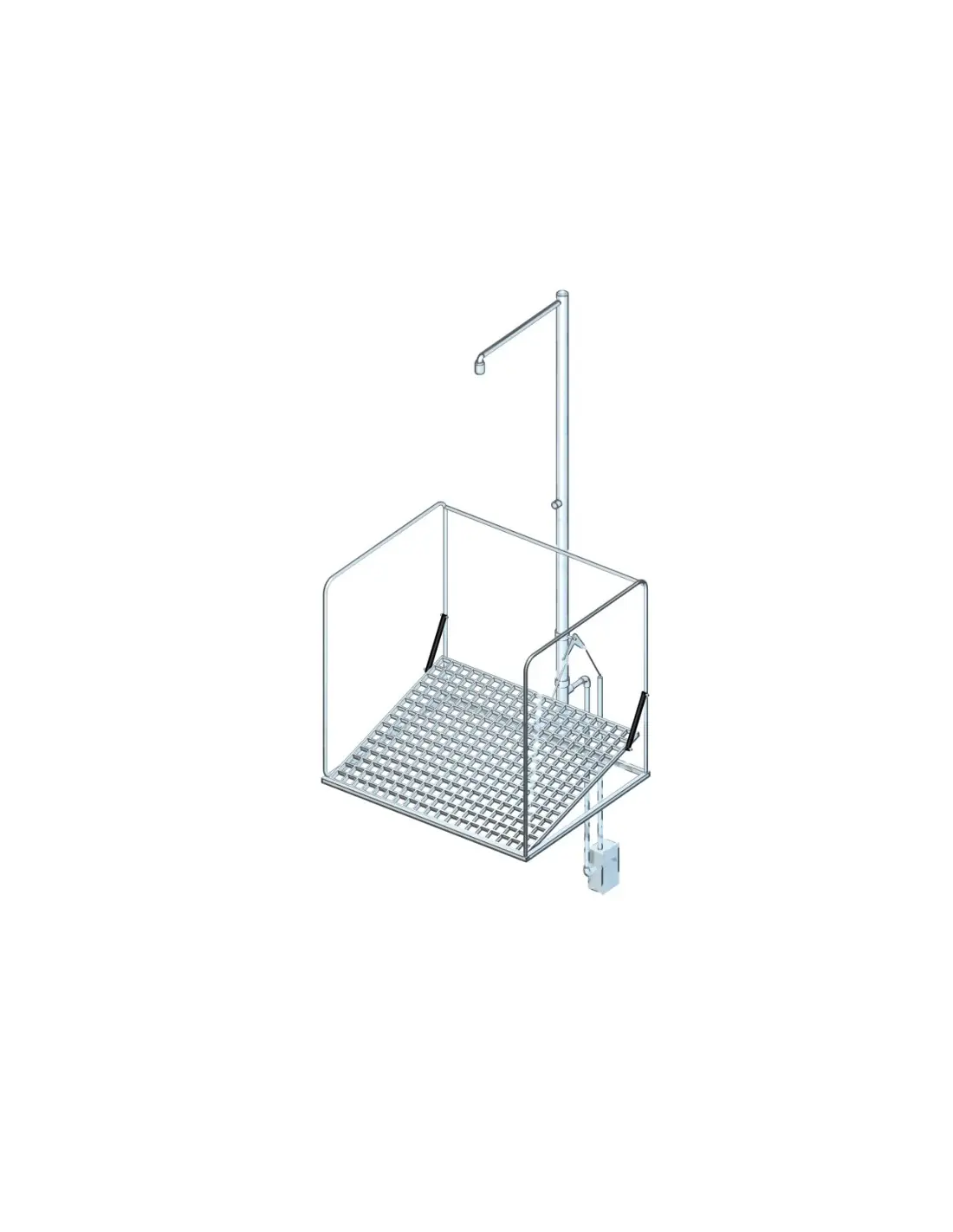

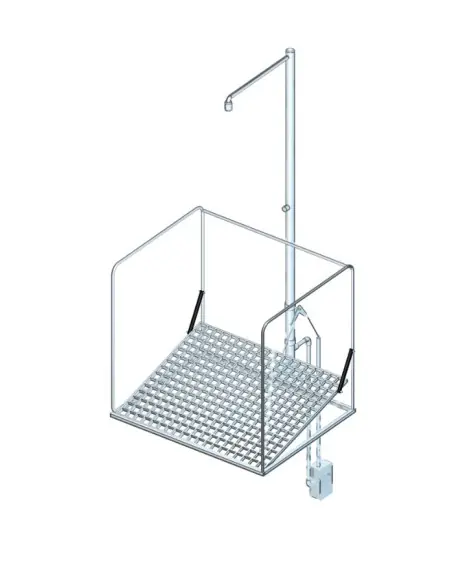

Frostprotected self-draining safety shower station with cage, underfloor actuation - PremiumLine - BR 888 395 | B-Safety

Exceptional Safety and Performance: Frostprotected self-draining safety shower station with cage, underfloor actuation - PremiumLine - BR 888 395 | B-Safety

In environments where safety is non-negotiable, the Frostprotected self-draining safety shower station with cage, underfloor actuation - PremiumLine - BR 888 395 | B-Safety delivers uncompromising reliability and innovative design. Engineered to withstand the harshest industrial climates, this safety shower station ensures critical protection when every second counts.

Key Features & Benefits of Frostprotected self-draining safety shower station with cage, underfloor actuation - PremiumLine - BR 888 395 | B-Safety

  • All-Weather Frost Protection: Built with premium insulation, this shower station won’t freeze, no matter how low temperatures drop. Workers remain protected year-round, even in freezing outdoor conditions.
  • Self-Draining System: After every use, water automatically drains from the pipes, preventing any risk of freezing or contamination. Maintenance is minimal and reliability is maximized.
  • Sturdy Protective Cage: The solid cage surrounds the shower, shielding it from accidental bumps or heavy impacts, while guaranteeing long-lasting durability in high-traffic industrial zones.
  • Hands-Free Underfloor Actuation: The unique foot pedal activation allows instant access—no need for hand contact. This feature ensures a quicker response and maintains hygiene.
  • PremiumLine Construction: Only high-grade, corrosion-resistant materials are used. This means optimal performance, safety, and a longer lifespan even in challenging industrial settings.
  • Designed for Industrial Use: Ideal for production plants, laboratories, chemical factories, and warehouses. Whenever hazardous materials are handled, this station stands ready.

Easy to install and simple to operate, the Frostprotected self-draining safety shower station with cage, underfloor actuation - PremiumLine - BR 888 395 | B-Safety offers peace of mind in any workplace. Its fast-acting, hands-free mechanism reduces reaction time during emergencies. With automatic draining, the risk of blocked or frozen pipes is virtually eliminated, ensuring the shower is always ready to use. The robust protective cage maintains the unit’s integrity, safeguarding both the equipment and those who depend on it.

Choose the Frostprotected self-draining safety shower station with cage, underfloor actuation - PremiumLine - BR 888 395 | B-Safety for reliable, instant safety response – engineered for real-world demands.

Datasheet and documents

Description

Technical Specifications

  • Material: stainless steel
  • Surface: polished
  • Total height: 2330 mm
  • Projection: 600 mm
  • Protection cage dimensions (H x W x D): 960 x 850 x 900 mm
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: ¾“ female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • GOST-R, Certificate-No. 0615463 061546

Product description

The B-SAFETY body safety showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and clean rooms.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification- and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

DVGW
ISO9001_D_72

Technical Description

  • frame made of stainless steel tubes, dimensions (H x W x D): 960 x 850 x 900 mm
  • platform actuation for safety shower made of galvanized steel, mounted with chain on angle diversion, dimensions (W x D): 800 x 800 mm
  • angle diversion made of stainless steel, with stainless steel attachment to the standpipe
  • ball valve made of stainless steel as underfloor actuation, mounted in stainless steel cabinet, with pull rod activation 1000 mm, DIN-DVGW tested and certificated, with automatic self-draining in 1000 mm depth
  • base plate with 4 mounting holes of stainless steel, polished, dimensions 200 x 200 mm
  • stand pipe 1 ¼” of stainless steel three-part, polished, total height 2330 mm
  • wall shower arm ¾“ of stainless steel, polished, projection 600 mm
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated
