Reliable Protection, Even in Tough Conditions: Features & Benefits of Frost-protected Self-draining Body Safety Shower - ClassicLine - BR 885 085 | B-Safety

The Frost-protected self-draining body safety shower - ClassicLine - BR 885 085 | B-Safety is engineered for demanding industrial environments. Designed to deliver immediate and effective emergency rinsing, this safety shower provides crucial protection for workers exposed to hazardous materials, especially in outdoor or unheated spaces.

All-weather reliability: The integrated frost protection system ensures reliable operation, even in cold climates. No need to worry about freezing temperatures interfering with emergency response—this shower performs when it’s needed most.
Self-draining mechanism: After every use, the system automatically drains, preventing water from remaining in the pipes and freezing. Maintenance is minimal and there is no risk of costly repairs due to frost damage.
Instant activation: The easy-to-use pull rod activates a powerful and consistent water flow, ensuring fast and efficient rinsing in emergency situations. Seconds count—this safety shower is designed for immediate action.
Durable construction: Built with robust, industrial-grade materials, the ClassicLine BR 885 085 stands up to heavy use and harsh environments. The high-visibility design also ensures it is easily located during emergencies.
Compliance and peace of mind: Developed to meet strict workplace safety standards, this shower helps fulfill legal and regulatory requirements for emergency equipment in industrial settings.

With its smart engineering, the shower is ideal for chemical plants, warehouses, or any industrial site where extreme temperatures and hazardous substances are present. The frost protection and self-draining features mean it’s always ready for use, while the simple, intuitive controls make it accessible to everyone—no training needed.

The Frost-protected self-draining body safety shower - ClassicLine - BR 885 085 | B-Safety is your reliable partner in workplace safety. Choose advanced performance that you can trust, no matter what the weather brings.

Datasheet and documents

Description

Technical Specifications

Material: stainless steel, plastic
Color: green, black
Projection: 470 mm
Installation height: 2345 mm
Operating pressure: 1.5 to 3 bar
Flow rate: 50 l/min (75/110 l/min)
Water inlet: ¾“ female

Norms / Approvals

EN 15154-2:2006
EN 15154-5:2019
ANSI Z358.1-2014
GOST-R, Certificate-No. 0615463 0615463

Product description

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification- and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

The integrated automatic flow regulator ensures a standard-compliant spray pattern regardless of the water pressure on site. With the enclosed safety sign according to EN ISO 7010 and ASR A1.3, the B-SAFETY emergency shower is marked and visibility is improved. The viewing distance is 15 meters

Technical Description

3-way-ball-valve ¾” of brass that automatically drains the shower downwards when not in use, water inlet ¾” female
spindle extension, standard length 800 mm, can be shortened to the appropriate length on site

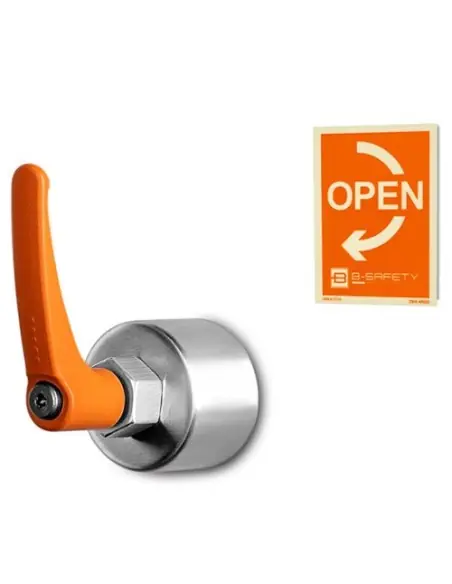

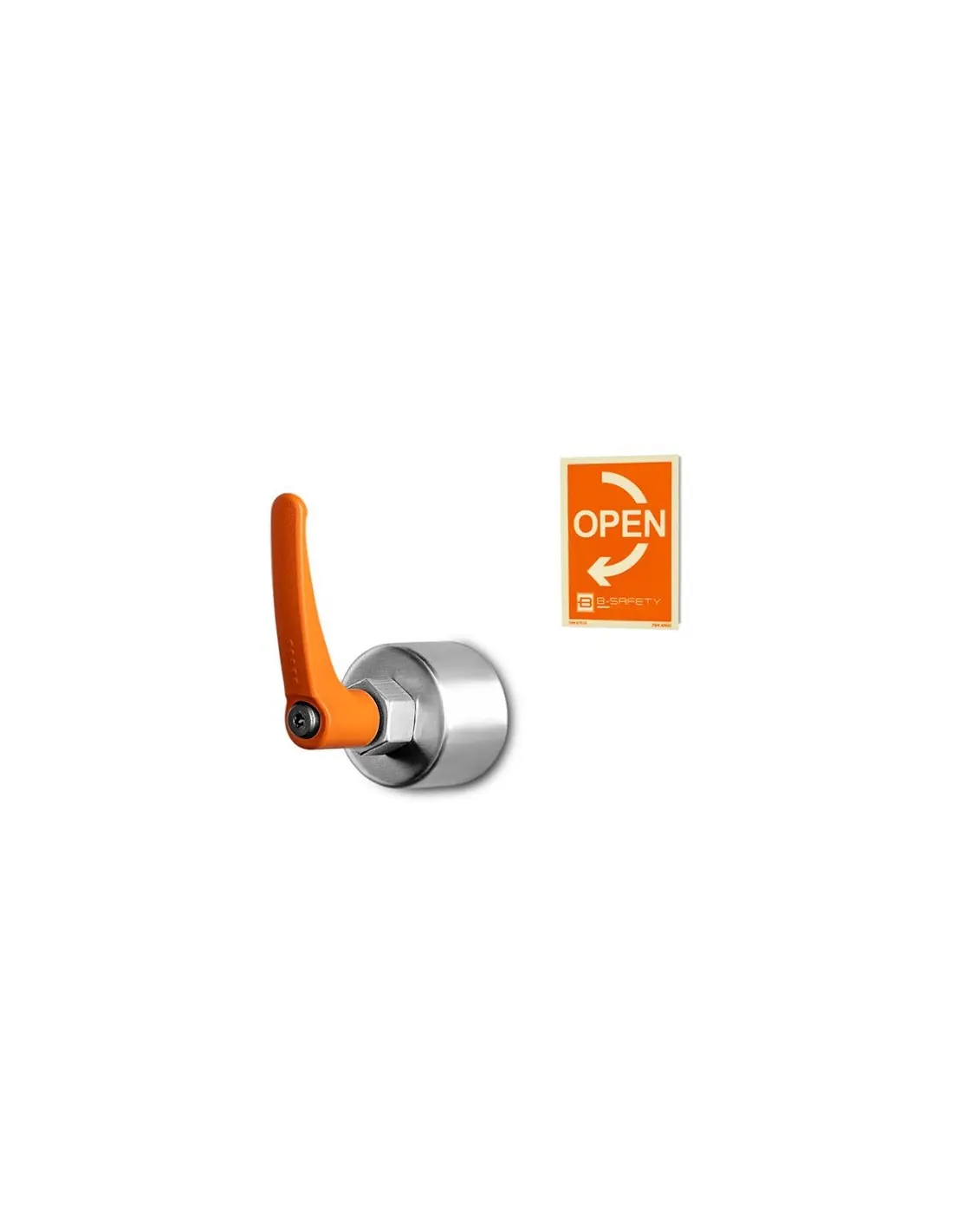

lever for ball valve
integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
push-on rosette of polyamide to cover the installation

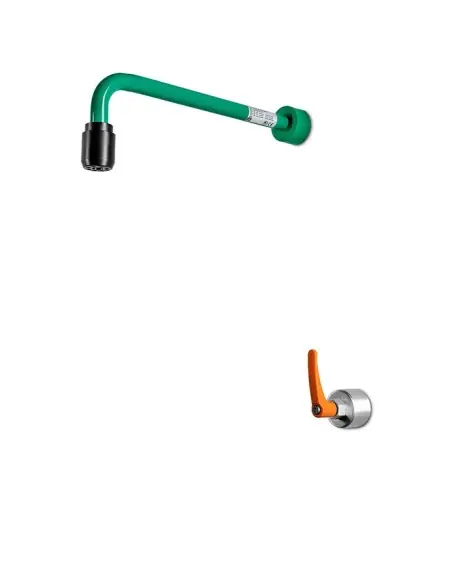

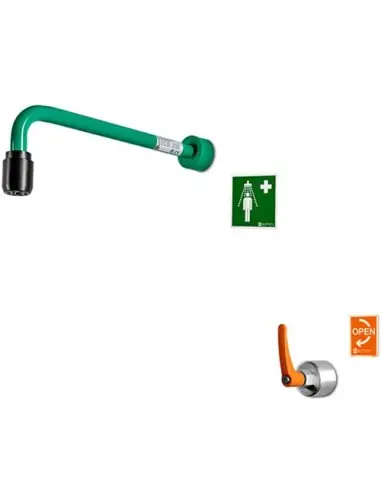

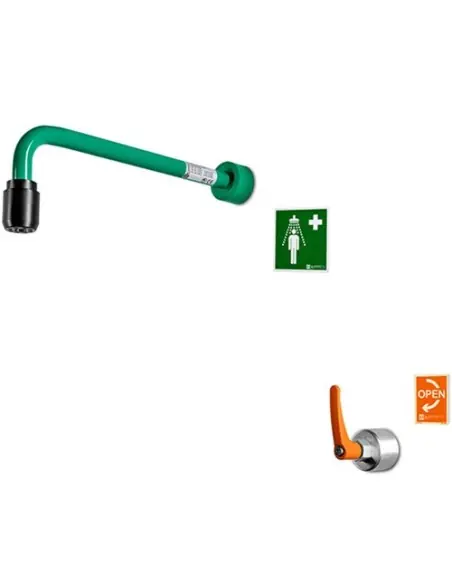

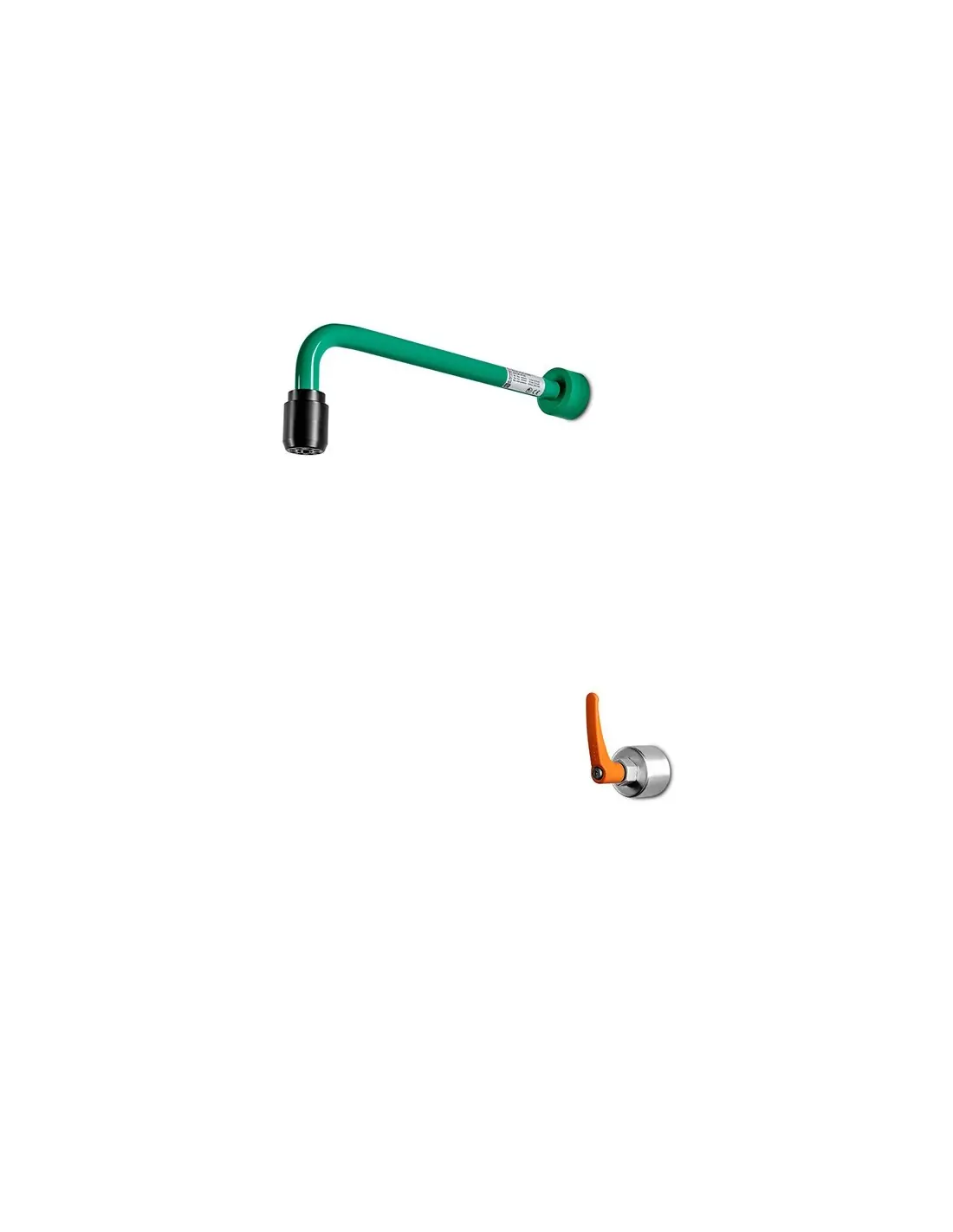

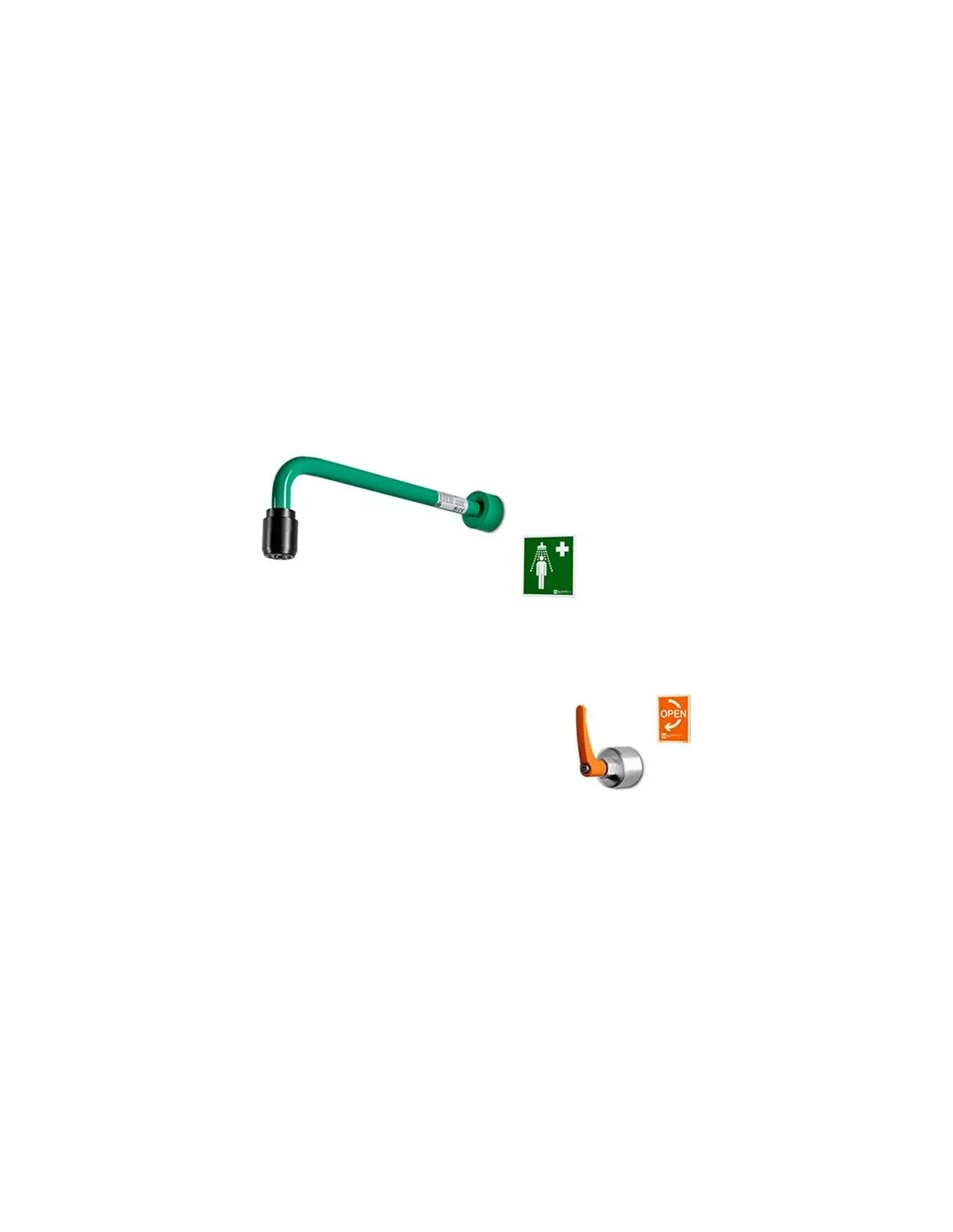

wall shower arm ¾“ of stainless steel, chemical resistant green powder coated, projection 470 mm
high-performance shower head of chemical resistant plastics, black, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
mounting height 2345 mm (± 100 mm)
according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
according to ANSI Z358.1-2014, EN 15154-1:2006 and EN 15154-5:2019

Certification

DVGW ISO9001_D_72
