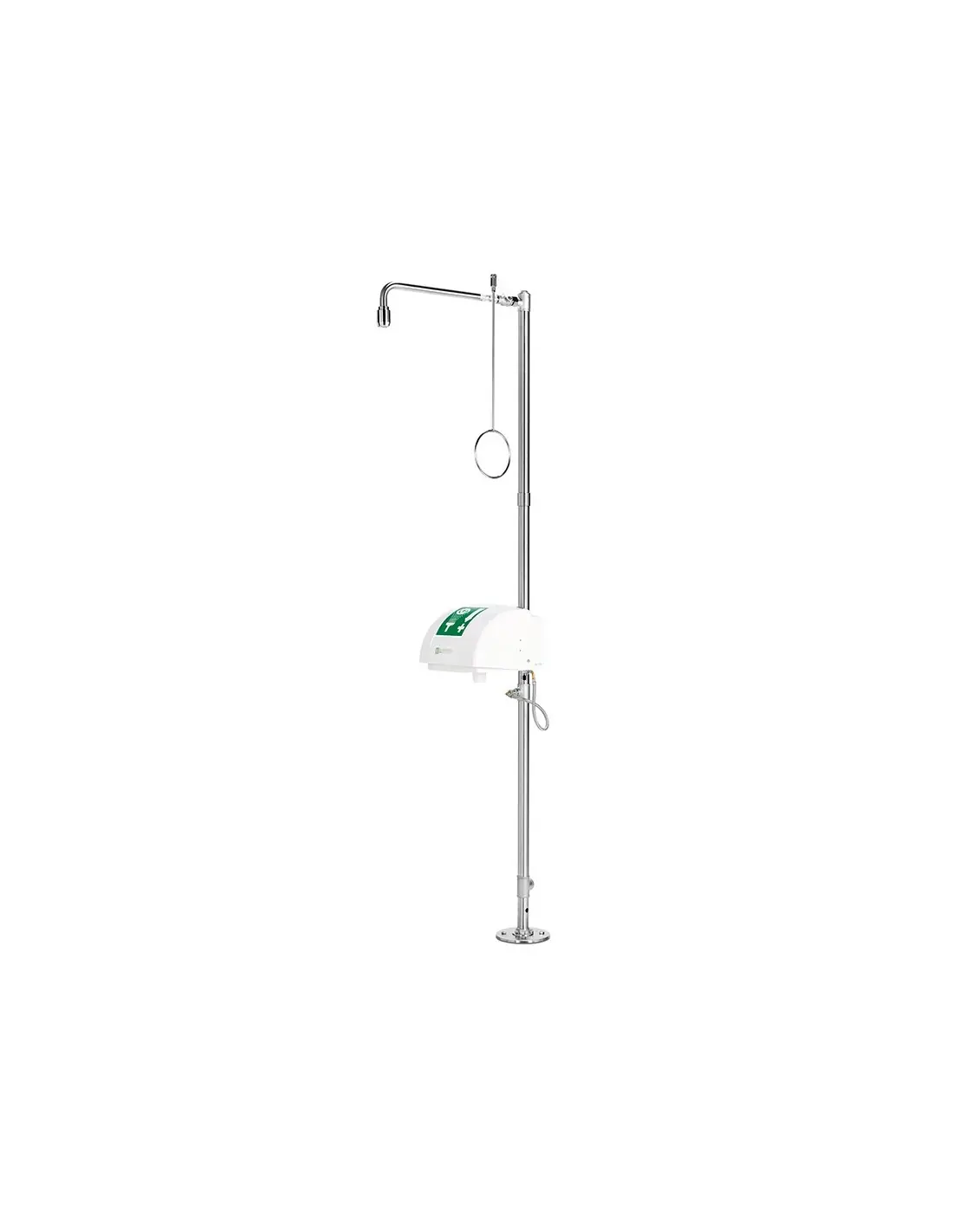

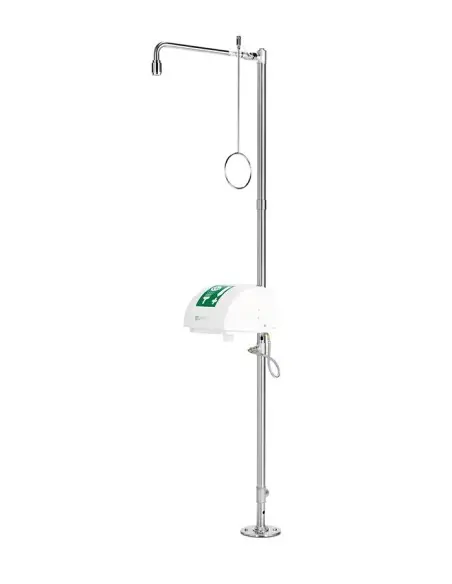

Industrial safety shower, freestanding, with eye/face wash unit with bowl & lid - PremiumLine - BR 838 095 | B-Safety | Phili...
Industrial safety shower, freestanding, with eye/face wash unit with bowl & lid - PremiumLine - BR 838 095 | B-Safety | Phili...

Industrial safety shower, freestanding, with eye/face wash unit with bowl & lid - PremiumLine - BR 838 095 | B-Safety

Top Features and Benefits of the Industrial Safety Shower, Freestanding, with Eye/Face Wash Unit with Bowl & Lid – PremiumLine – BR 838 095 | B-Safety

The Industrial safety shower, freestanding, with eye/face wash unit with bowl & lid - PremiumLine - BR 838 095 | B-Safety is designed to offer maximum protection for workers in industrial environments. This robust safety solution delivers immediate first-aid for chemical splashes or other hazardous incidents, providing peace of mind and reliable safety performance in critical moments.

  • Comprehensive Safety Coverage: Featuring both a full-body shower and an integrated eye/face wash station with a convenient bowl and lid, this unit ensures rapid and effective decontamination for the entire body, eyes, and face.
  • Freestanding Design: The sturdy freestanding construction allows for flexible placement anywhere in your facility, without the need for wall mounting. Position it exactly where it’s needed most for fast, easy access.
  • Premium Durability: Built from high-quality, industrial-grade materials, this safety shower resists corrosion and withstands the harshest workplace environments, reducing maintenance and replacement costs.
  • Protective Bowl & Lid: The eye/face wash unit includes a bowl and lid to keep the nozzles clean and free of dust or debris, ensuring swift, hygienic operation whenever emergencies occur.
  • Easy-to-Activate Controls: Intuitive, user-friendly levers and foot pedals empower anyone to operate the unit quickly without hesitation, even under stress.
  • Consistent Flow Rates: Engineered with advanced controls to deliver a steady, gentle flow of water to affected areas, reducing further injury and supporting effective rinsing.
  • High Visibility: Bright, distinctive coloring makes the unit easy to spot, even in low-light or crowded conditions, saving precious seconds in an emergency.

The Industrial safety shower, freestanding, with eye/face wash unit with bowl & lid - PremiumLine - BR 838 095 | B-Safety is your dependable partner in workplace safety. Whether you manage a laboratory, chemical plant, manufacturing facility, or warehouse, this safety station provides the rapid response and robust protection your team needs. Keep your team safe, comply with safety regulations, and ensure swift assistance is never out of reach.

Description

Technical Specifications

  • Material: stainless steel
  • Surface: polished
  • Total height: 2300 mm
  • Projection: 630 mm
  • Operating pressure: 1.5 to 3 bar
  • Flow rate: 50 l/min (75/110 l/min)
  • Water inlet: 1 ¼” female

Norms / Approvals

  • EN 15154-2:2006
  • EN 15154-2:2006
  • EN 15154-5:2019
  • ANSI Z358.1-2014
  • DIN-DVGW, DVGW, NW-0416CL0425
  • DIN-DVGW, DVGW, NW-0417CL0263
  • GOST-R, Certificate-No. 0615463 0615463

Product description

The B-SAFETY body safety showers of the PremiumLine series are made of stainless steel and are just as suitable for use in laboratories and research as for rough use in industry. The polished stainless steel surface is not only resistant to many chemicals, but also offers a modern design for laboratories and clean rooms.

The body safety showers are equipped with the B-SAFETY high-performance shower head, which not only meets the specifications of ANSI Z358.1 and EN 15154, but is also self-draining, largely free of calcification-and maintenance, and very robust and corrosion-resistant. The limited, uniform and above all soft water jet is optimized for rinsing off chemicals on the skin.

DVGW
ISO9001_D_72

Technical Description

  • including top and bottom water inlet 1 ¼” female for installation in circulation lines, plug 1 ¼” of stainless steel
  • base plate with 4 mounting holes of stainless steel, polished, diameter 200 mm
  • stand pipe 1 ¼” of stainless steel three-part, polished, with top and bottom water inlet 1 ¼” female, total height 2300 mm
  • connection piece of stainless steel, for easy installation and alignment of the shower
  • ball valve ¾” of stainless steel, with quick connect system and pull rod actuation, DIN-DVGW tested and certificated
  • pull rod with ring handle of stainless steel, polished, length 700 mm
  • wall shower arm ¾“ of stainless steel, polished, projection 630 mm
  • integrated automatic flow regulation 50 l/min. for a spray pattern acc. to the norms at a specified operating range of 1.5 to 3 bar dynamic water pressure
  • high-performance shower head of stainless steel, polished, with improved spray pattern, corrosion resistant, largely calcification- and maintenance-free, very robust, self-draining
  • sign for body safety shower according to EN ISO 7010 und ASR A1.3, self-adhesive PVC-film, 150 x 150 mm, viewing distance 15 metre
  • integrated PremiumLine eye-/face wash unit with bowl and lid for mounting on standpipe, position and orientation freely selectable
  • housing, lid and bowl made of UV and impact resistant ABS plastics, water outlet 1 ½“ male
  • integrated protective cover against dust
  • actuation by pulling down the lid
  • ball valve 3/8“ of brass with lever actuation by lid, DIN-DVGW tested and certificated
  • aerators made of brass with a very limited spray pattern, chrome-plated
  • with integrated flow regulation valve 3/8” for setting the desired spray height and flow rate, water inlet 3/8” male
  • inclusive sign for eye shower according to EN ISO 7010 und ASR A1.3 on the lid, dimensions 170 x 170 mm, viewing distance 17 metre
  • according to BGI/GUV-I 850-0, DIN 1988 and EN 1717
  • according to ANSI Z358.1-2014, EN 15154-1:2006, EN 15154-2:2006 and EN 15154-5:2019
  • DIN-DVGW tested and certificated

Certification

DVGW    ISO9001_D_72
