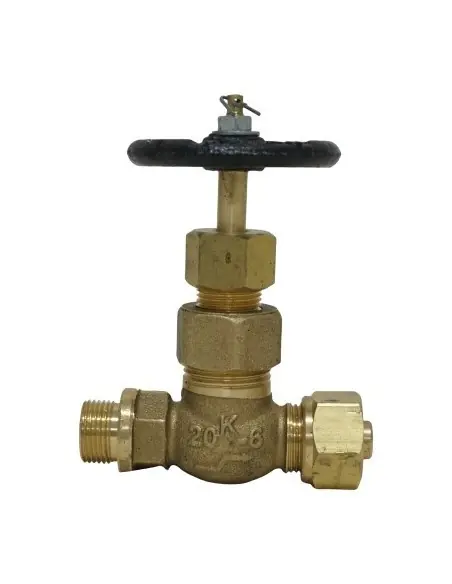

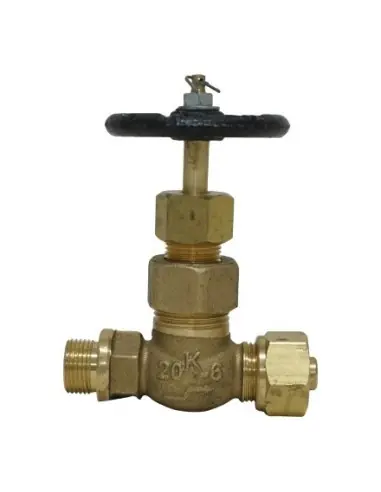

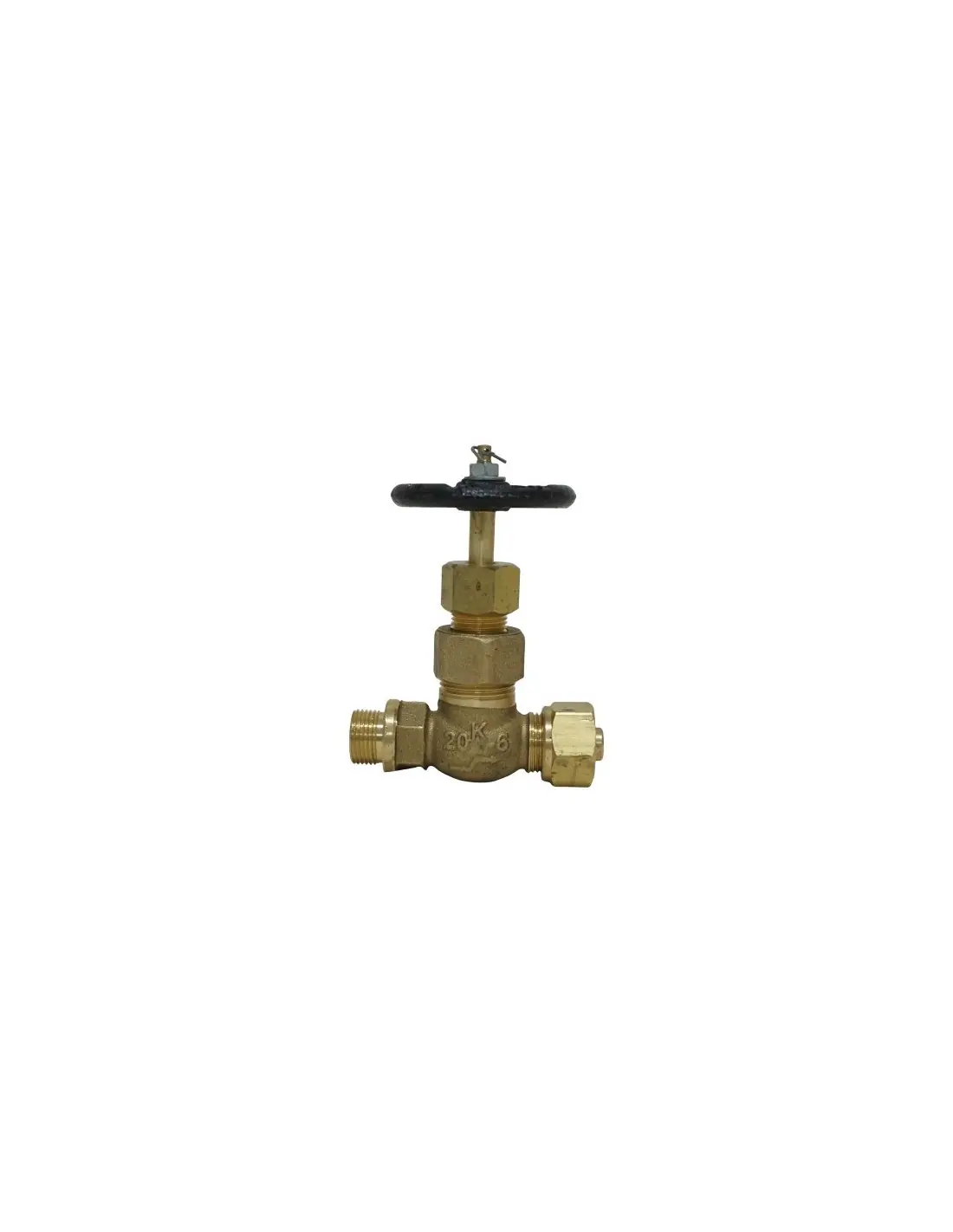

Cock Bronze Type S - JIS 16K - F7388
Brass S-Type Cock JIS 16K F7388
Manual straight-flow cock for marine auxiliary piping systems. Product documentation specifies JIS standard, construction material brass, nominal pressure rating 16K, and straight-through flow configuration.
Operation
S-type cocks are used for local isolation or manual control of small-bore lines. Operation is by rotary handle, providing direct transition between open and closed positions. No throttling capability is intended.
Key selection criteria include:
- connection class JIS 16K
- brass compatibility with process media
- operating pressure and temperature
- leak-tightness in closed position
- access for operation and maintainability
Typical Applications
- auxiliary fresh water networks
- service water lines on vessels
- drain, vent, and small bypass lines
- sampling or instrument isolation points
- marine installations with JIS piping specification
Specification Note
This product is listed as F7388 / 16K / cock type S. In JIS technical catalogs, F7388 may also refer to bronze globe valve S & U type, JIS 20K. For procurement or technical submittals, always confirm execution, DN, pressure class, and end connections from drawing or datasheet.
Maintenance
Periodic inspection should include smooth handle rotation, leakage in closed position, sealing surface wear, and scale deposits. For seawater lines, verify material compatibility and perform more frequent functional testing.
