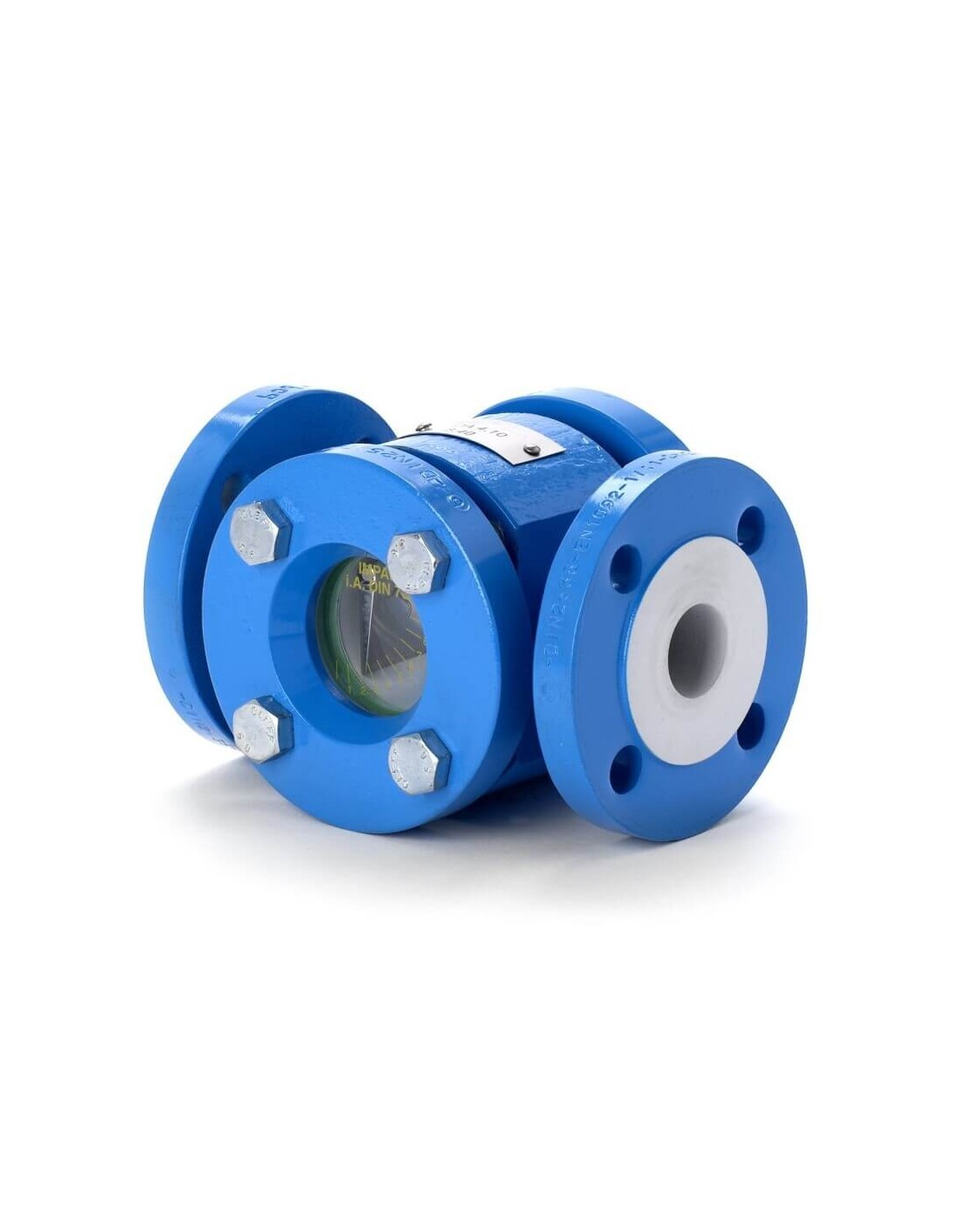

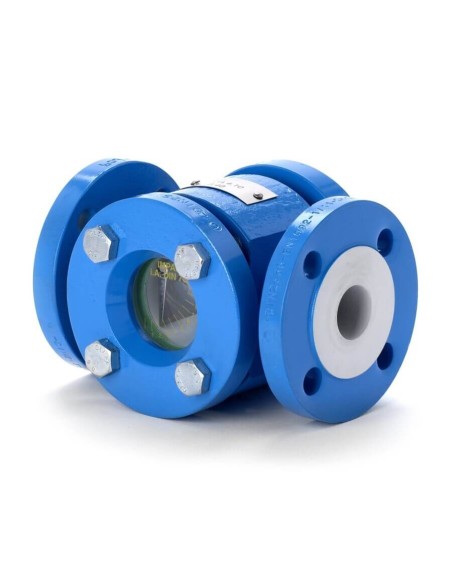

The Sight Glass & Flow Indicator DA 4.00 - 4.40 by Mankenberg is a high-quality device designed for monitoring the flow of liquids in various industrial applications. It features a robust construction that ensures durability and reliability in demanding environments. The sight glass allows for clear visual inspection of the fluid flow, while the flow indicator provides accurate measurement and monitoring. This product is ideal for use in pipelines where visual confirmation of flow is essential, and it is suitable for a wide range of industries, including chemical processing, water treatment, and food and beverage production.

Datasheet and documents

Description

Product features

Sight glasses and flow indicators indicate media and flow conditions in pipeline systems and plant.

Standard

  • With flag, vane, impeller or without indicator device
  • Two borosilicate glasses
  • Body made of forged steel
  • Inner parts made of stainless steel
  • Impeller made of PBTP, ball made of PA

Options

  • Impeller made of PTFE
  • Body made of stainless steel or special material such as Duplex, Superduplex, Hastelloy® or titanium
  • Elastomer materials suitable for your medium
  • ANSI or JIS flanges, NPT, welding ends

Technical data

DN

DA 4.00, 4.10 DN 15 - 100
DA 4.30 DN 15 - 50

G
DA 4.00 - DA 4.30 G 3/8 - 2
PN
16 - 40
T
280 °C

liquids, gases and steam up to 280 °C | 2 borosilicate glasses | with flag, vane, impeller or without indicator device | body made of forged steel, optional stainless steel or special material such as Duplex, Superduplex, Hastelloy® or titanium
