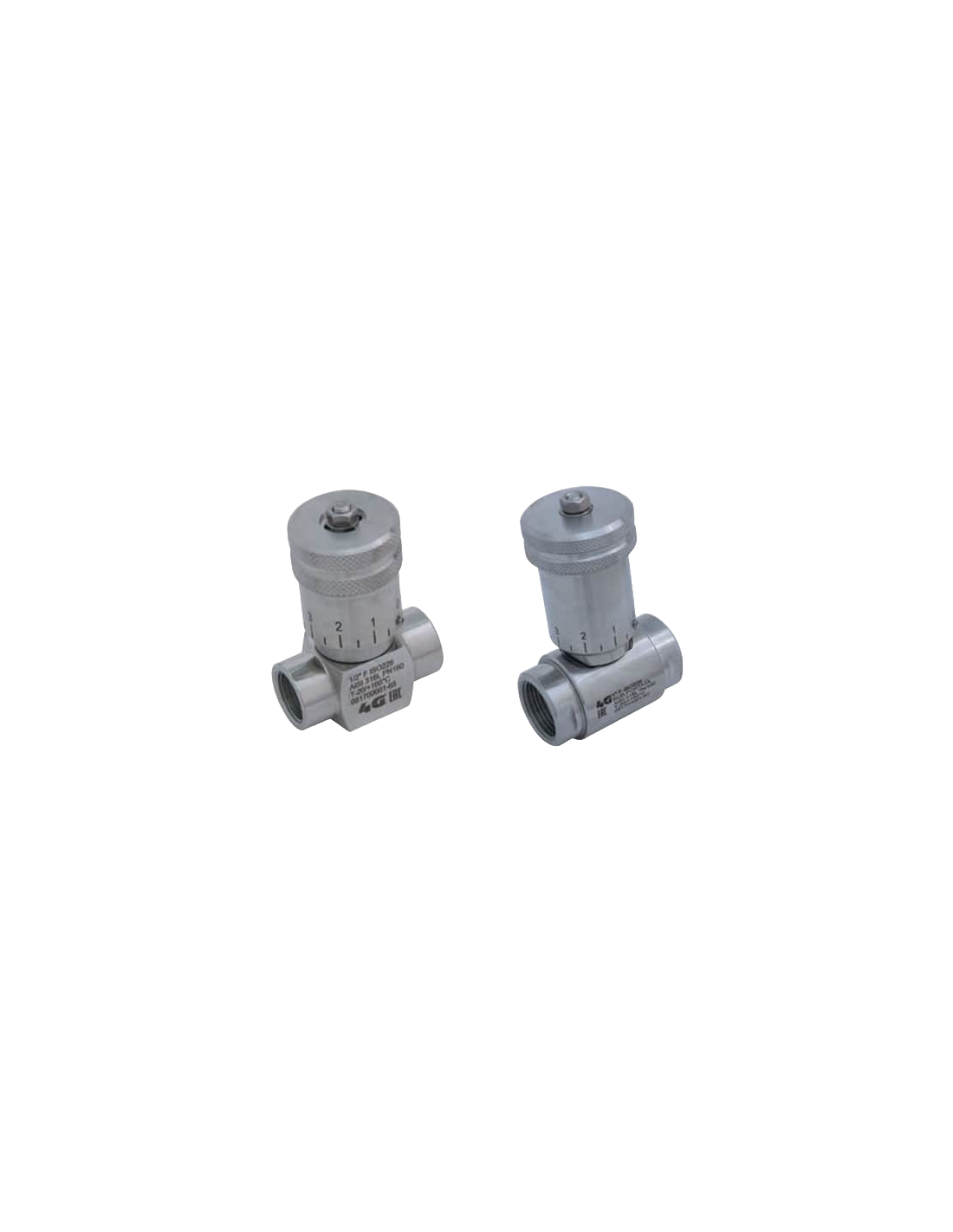

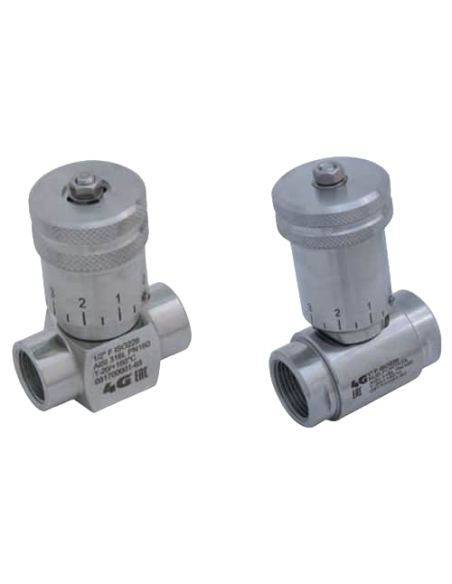

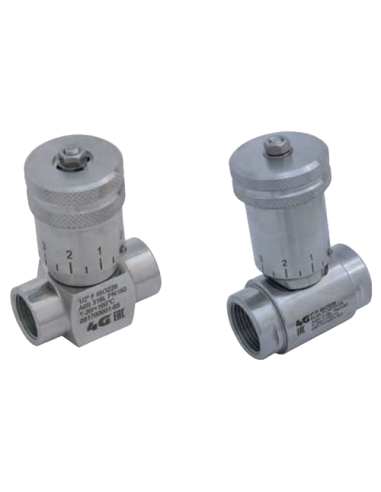

The Needle Valve NPT F - GRADUATE HANDWHEEL - 658204 by 4G Ghidini is a precision-engineered valve designed for precise flow control. It features a graduate handwheel for easy operation and is constructed from high-quality Aisi 316L (1.4404) stainless steel, ensuring durability and resistance to corrosion. The valve is available in sizes ranging from 1/4” to 1”1/2 and is equipped with NPT female/female threading for secure connections. It operates efficiently within a temperature range of -20°C to +160°C and boasts a polished outer finish for a sleek appearance. Optional features include an antistatic device compliant with ATEX standards (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db) and M.O.C.A. certification according to CE 1935/2004.
Standard (Options)
  • DIN
Connection (Options)
  • NPT
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 100
  • PN 160

Datasheet and documents

Description

Drive: GRADUATE Handwheel

Connection: NPT female/female thread

Material: Aisi 316L (1.4404)

Measure: from 1/4” to 1”1/2

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004
