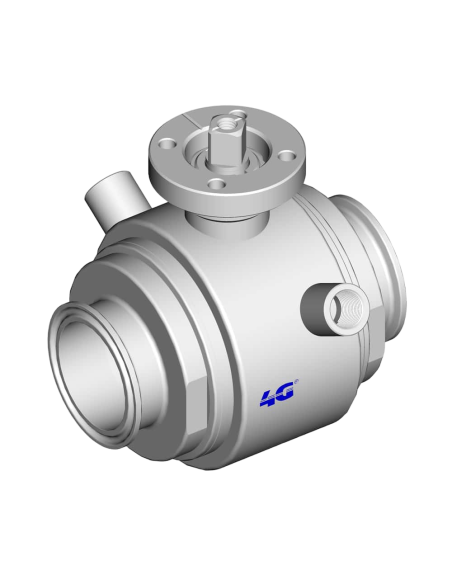

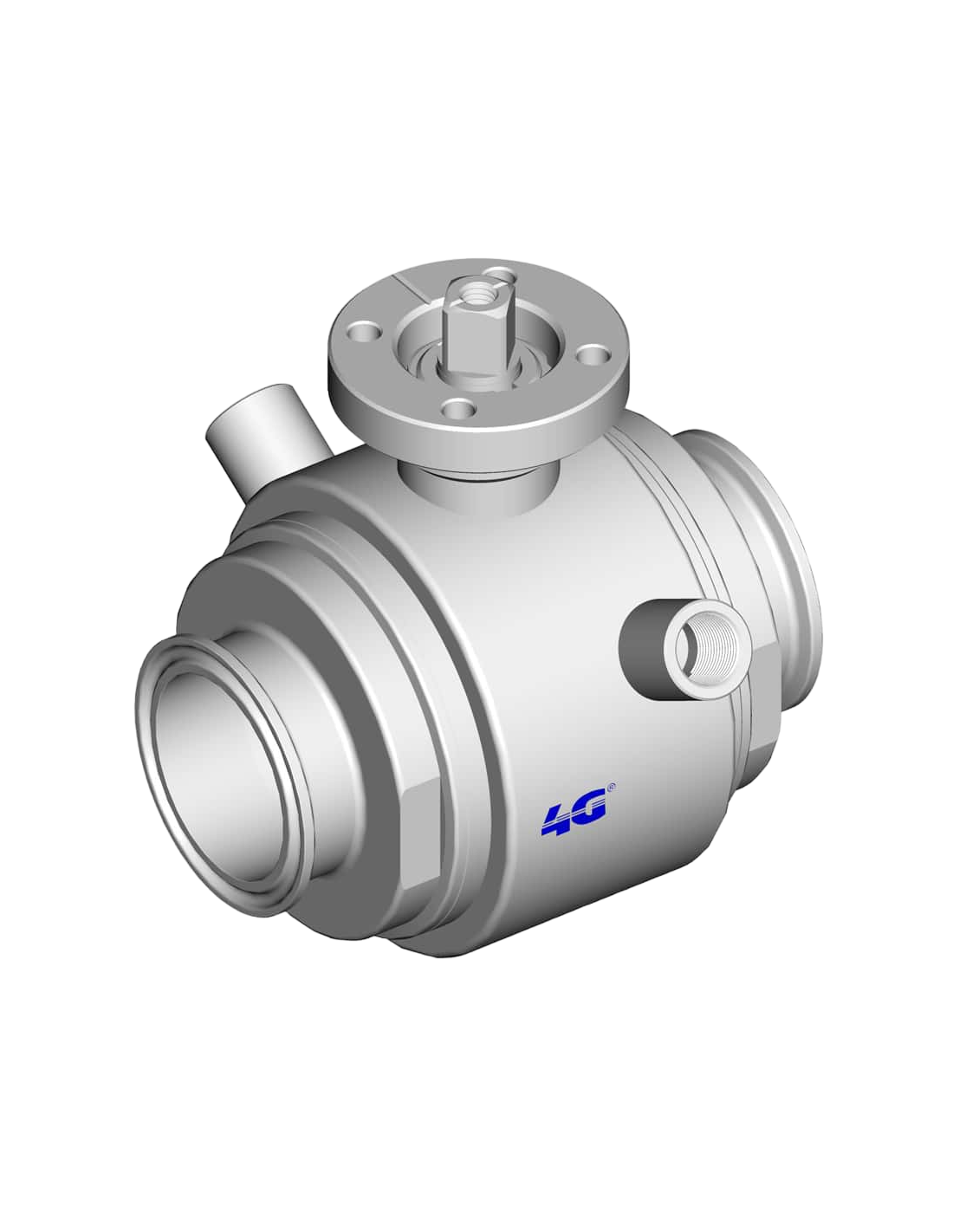

The Ball Valve - HEATING JACKET - 133030C by 4G Ghidini is a two-way ball valve featuring an "Integral Seal" design with a heating jacket. It is equipped with an ISO 5211 – DIN 3337 flange for actuator drive. The valve supports various clamp connections compliant with DIN 32676 standards for tubes according to BS/OD (ASTM A270), DIN 11850, and ISO 1127. It offers both full and reduced flow options and is constructed from AISI 316L (1.4404) stainless steel. Available in sizes ranging from 1” to 4” (DN25 to DN100), it features virgin P.T.F.E. seals and operates within a temperature range of -20°C to +160°C. The valve has a polished outer finish and includes screws for mounting an actuator. Optional features include an antistatic device with ATEX certification (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db) and M.O.C.A. compliance (CE 1935/2004). Seals can also be made from PTFE with glass, extending the temperature range to -20°C to +170°C.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal” with HEATING JACKET

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850
  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure:

  • from 1” to 4”
  • from DN25 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
