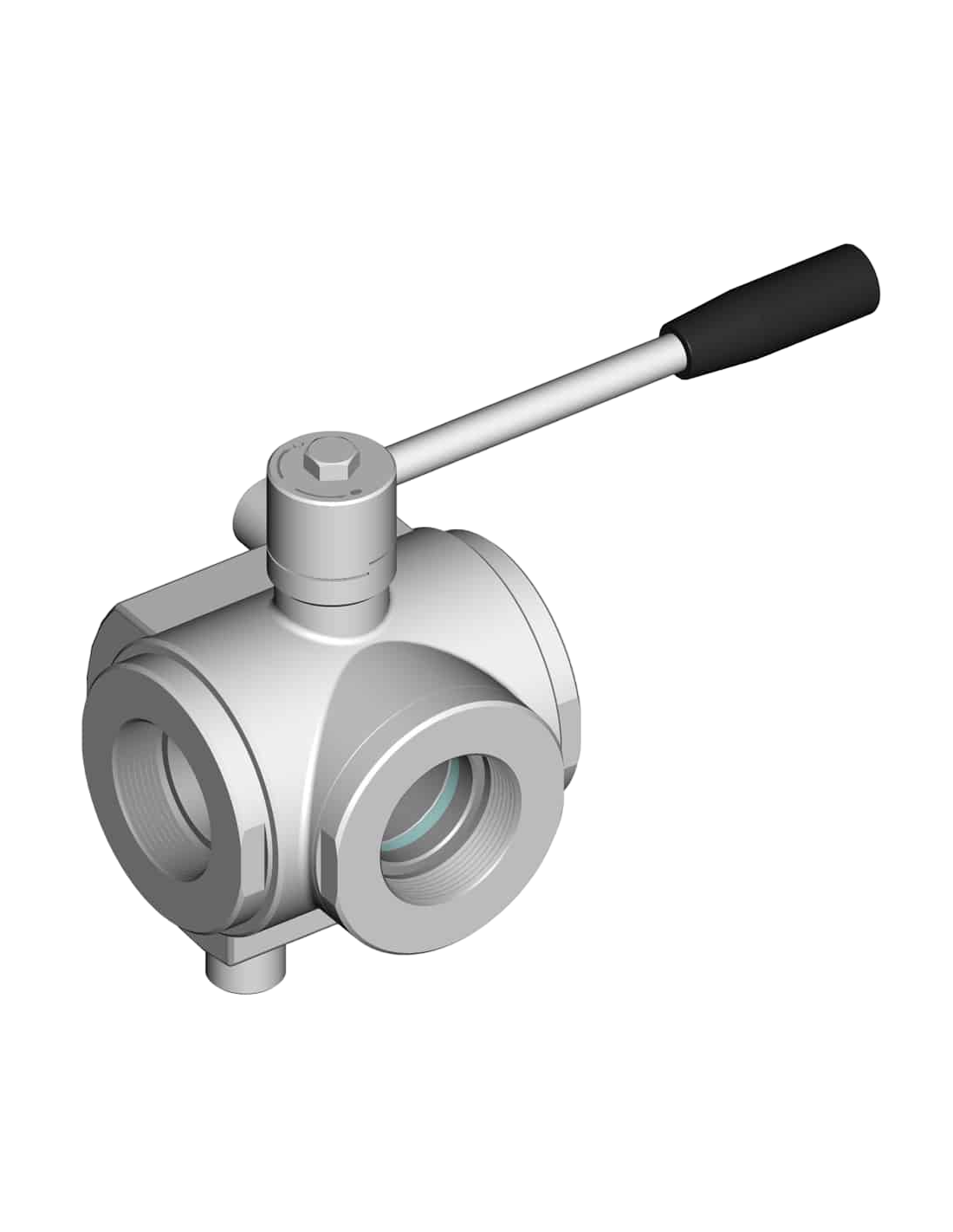

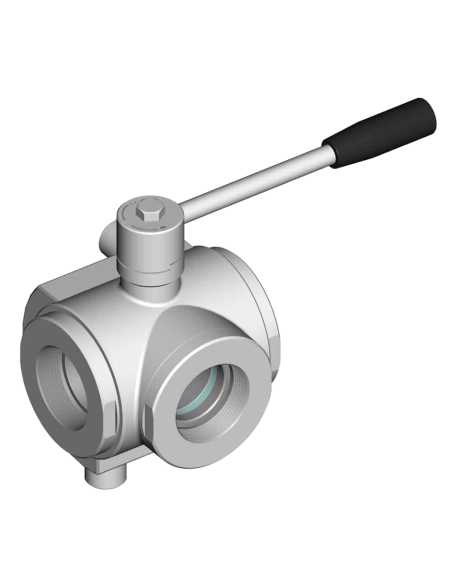

The 3 Way (T) Ball Valve by 4G Ghidini, model 300101C, is a versatile valve designed for efficient fluid control. It features a "T" port configuration and is equipped with a heating jacket, making it suitable for applications requiring temperature regulation. The valve is operated via an inox lever and connects through ISO 228 female threads. Constructed from durable Aisi 304L and Aisi 316L stainless steel, it offers full flow capabilities and is available in sizes ranging from 1/4” to 4”. The standard seals are made from modified virgin P.T.F.E., supporting operating temperatures from -20°C to +170°C. The valve's polished outer finish enhances its durability and aesthetic appeal. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges, such as PTFE with glass, carbographite, or inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port with HEATING JACKET

Drive: Inox lever

Connection: ISO 228 female/female/female thread

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
