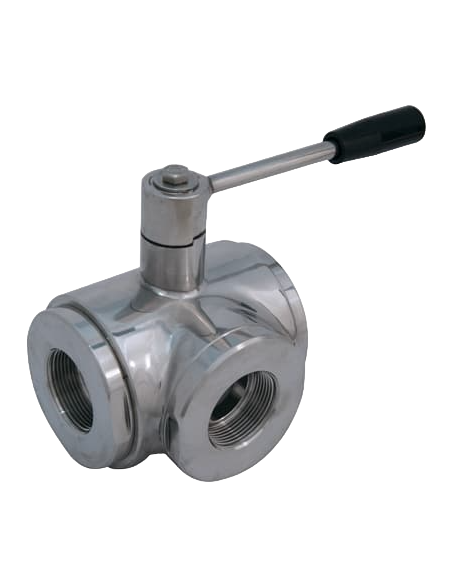

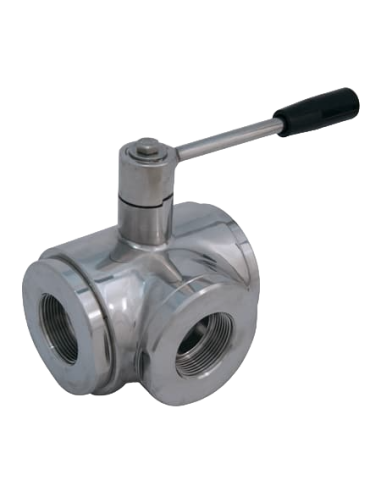

The 3 Way (T) Ball Valve by 4G Ghidini, model 300104, is a versatile valve designed for efficient fluid control. It features a three-way configuration with a "T" port and is equipped with four standard seals. The valve is operated using an inox lever and has female NPT threads for easy connection. Constructed from durable AISI 316L stainless steel, it offers full flow capabilities and is available in sizes ranging from 1/4” to 4”. The seals are made from modified virgin P.T.F.E., suitable for operating temperatures between -20°C and +170°C. The valve has a polished outer finish and can be customized with an antistatic device for ATEX compliance. Optional seal materials include PTFE with glass, carbographite, inox, and UHMW polyethylene, each offering different temperature ranges and properties.
Standard (Options)
  • DIN
Connection (Options)
  • NPT
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T”

Drive: Inox lever

Connection: NPT female/female/female thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
