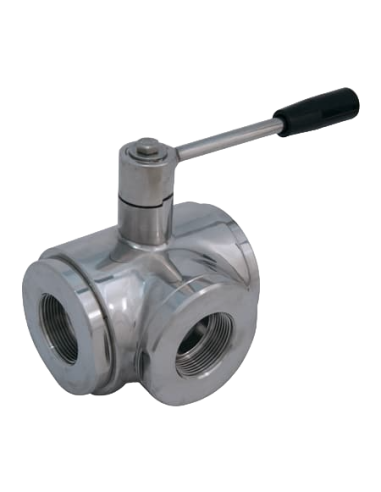

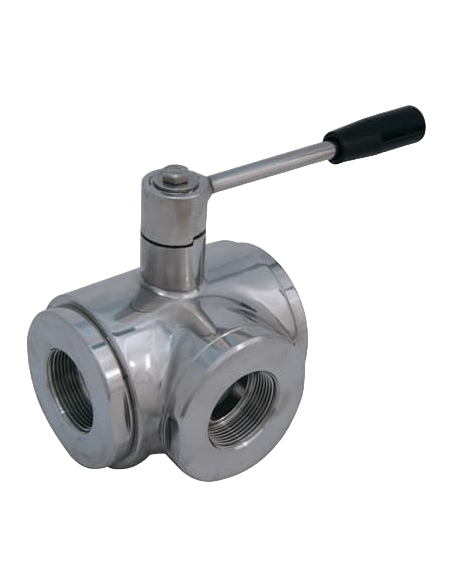

The 3 Way (T) Ball Valve by 4G Ghidini, model 300101, is a versatile valve featuring a "T" port design with four seals, suitable for both full and reduced flow applications. It is operated via an inox lever and connects using ISO 228 female threads. Constructed from durable Aisi 304L and Aisi 316L stainless steel, it is available in sizes ranging from 1/4” to 4” and 1/2” to 2”1/2. The valve is equipped with modified virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +170°C. It boasts a polished outer finish and offers optional features such as an antistatic device compliant with ATEX standards and various seal materials for enhanced performance under different conditions.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve 4 seals with “T” port

Drive: Inox lever

Connection: ISO 228 female/female/female thread

Flow:

  • Full
  • Reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • from 1/4” to 4”
  • from 1/2” to 2”1/2

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
