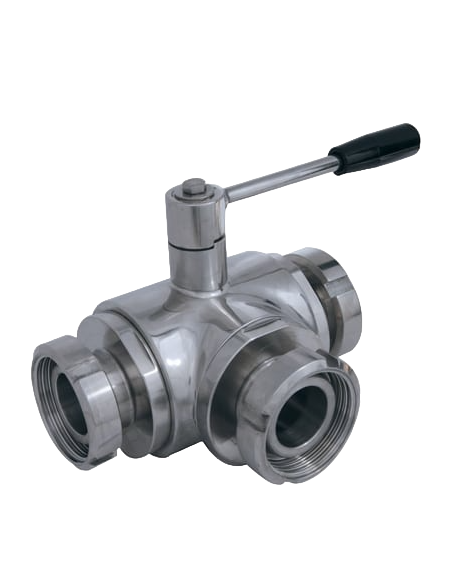

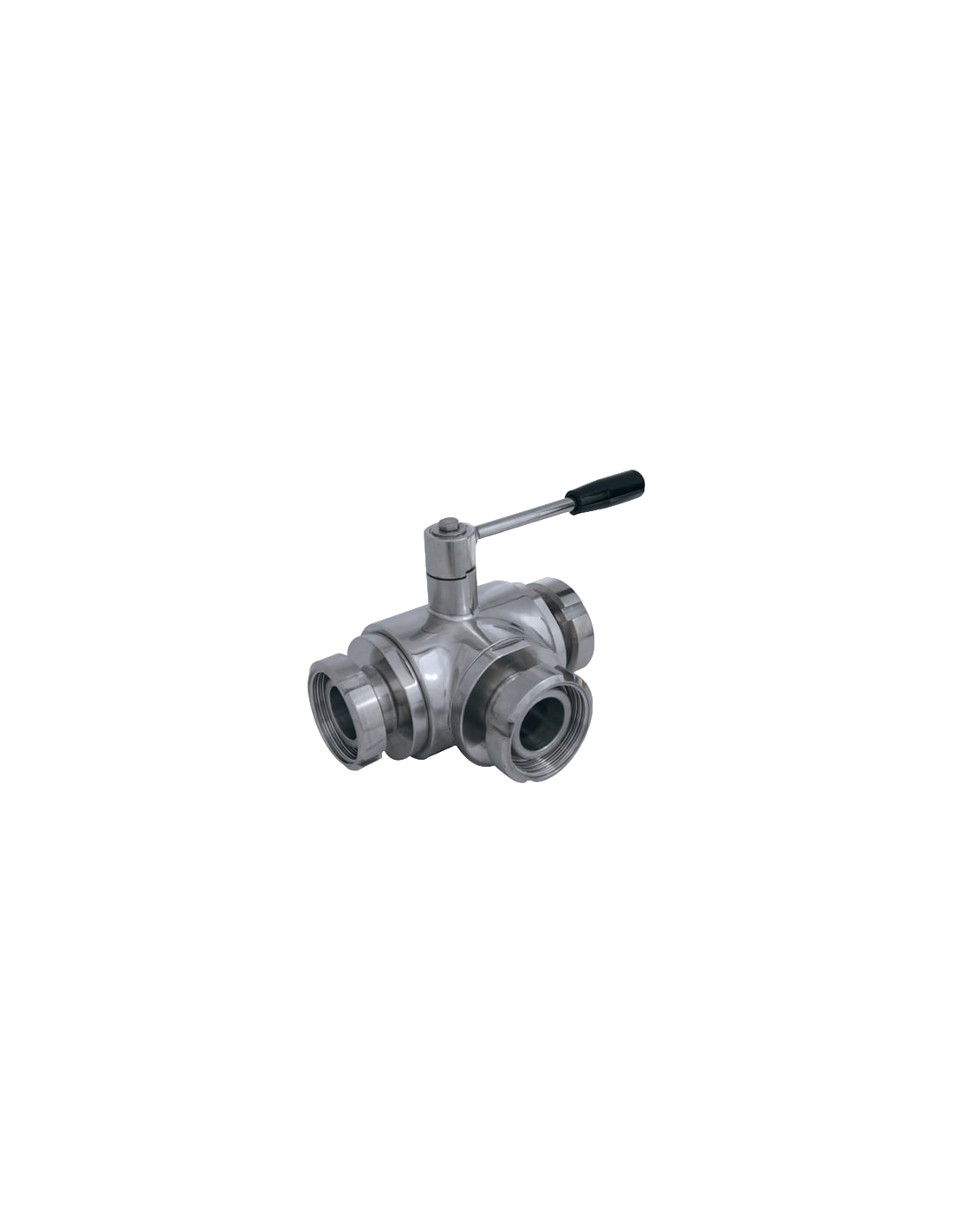

The 3 Way (T) Ball Valve by 4G Ghidini, model 360146, is a versatile valve designed for efficient flow control with a "T" port configuration. It features three seals and is operated via an inox lever. The valve is constructed from high-quality Aisi 316L (1.4404) stainless steel, ensuring durability and resistance to corrosion. It is available in sizes ranging from DN65 to DN100 and offers full flow capacity. The standard seals are made from Modified Virgin P.T.F.E., suitable for operating temperatures between -20°C and +170°C. The valve has a polished outer finish and SMS male/male/male connections. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges, such as PTFE with glass, carbographite, inox, and UHMW polyethylene. The valve also meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve THREE seals with “T” port

Drive: Inox lever

Connection: SMS male/male/male

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
