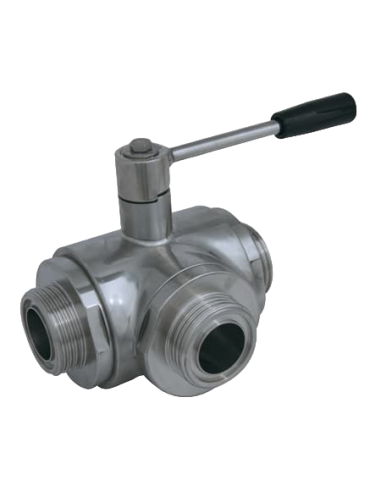

The 3 Way (T) Ball Valve by 4G Ghidini, model 360144, is a versatile valve designed for efficient fluid control. It features a three-seal system with a "T" port configuration, allowing for flexible flow management. The valve is operated using a durable stainless steel (Inox) lever and connects via SMS female/female/female fittings. Constructed from high-quality Aisi 316L (1.4404) stainless steel, it ensures robust performance and corrosion resistance. Available in sizes ranging from DN65 to DN100, it supports full flow and operates within a temperature range of -20°C to +170°C. The valve is polished for a sleek finish and can be customized with various seal materials, including PTFE with glass, carbographite, or inox, and UHMW polyethylene, to suit different temperature and chemical resistance requirements. Optional features include an antistatic device compliant with ATEX standards and M.O.C.A. CE 1935/2004 certification for food contact applications.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “T” port

Drive: Inox lever

Connection: SMS female/female/female

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
