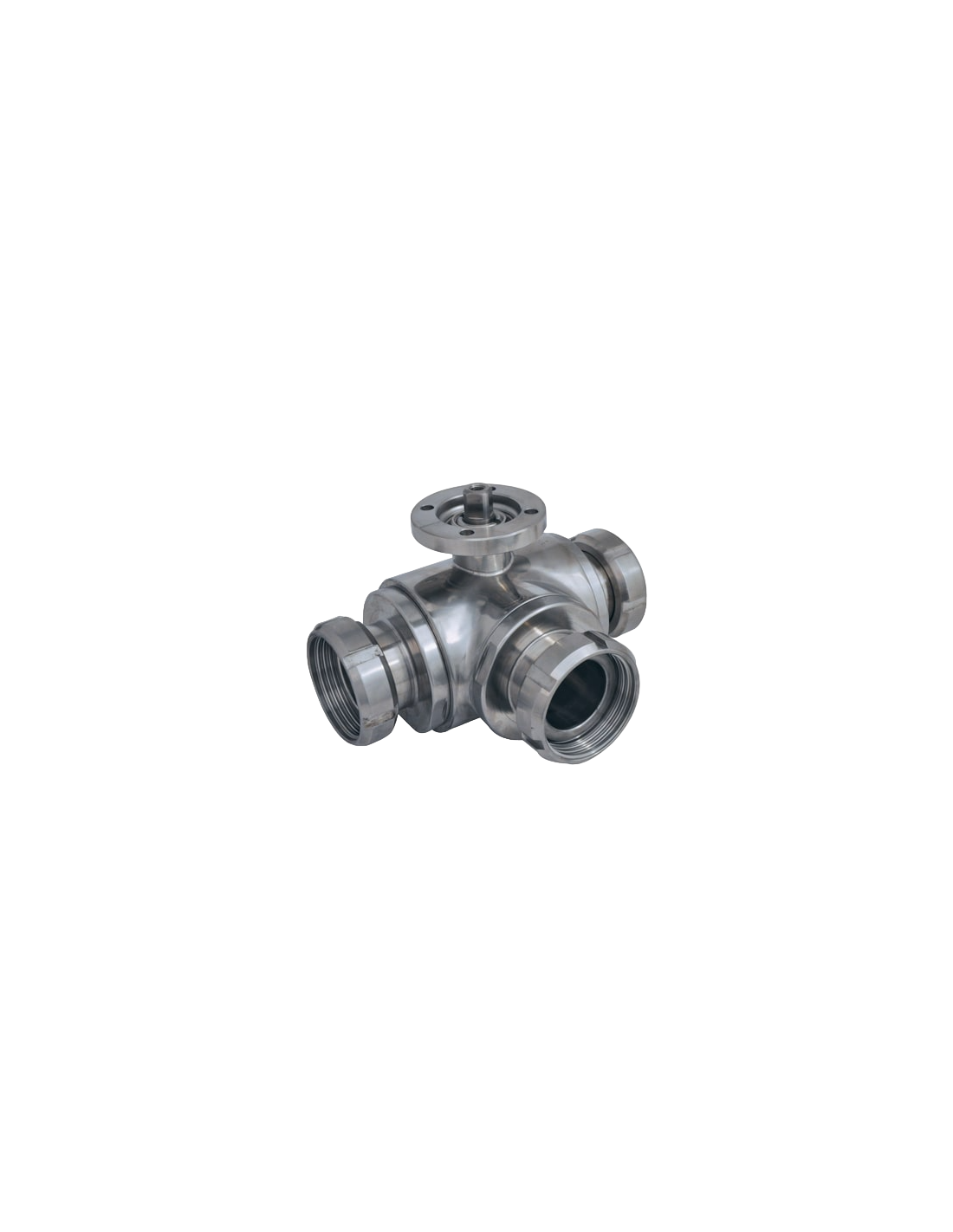

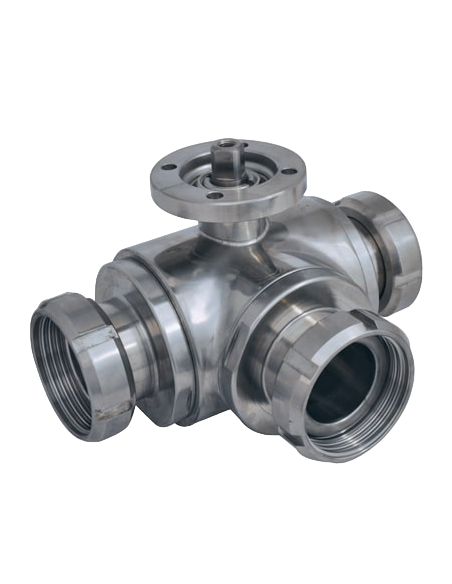

The 3 Way (L) Ball Valve by 4G Ghidini, model 373046, features a three-seal design with an "L" port configuration. It is equipped with an ISO 5211 – DIN 3337 flange for actuator drive and has SMS male/male/male connections. The valve supports full flow and is constructed from AISI 316L (1.4404) stainless steel, available in sizes ranging from DN65 to DN100. The standard seals are made from Modified Virgin P.T.F.E., suitable for operating temperatures between -20°C and +170°C. The valve has a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials such as PTFE with glass, carbographite, or inox, and UHMW polyethylene, each offering different temperature ranges. The valve also complies with M.O.C.A. CE 1935/2004 regulations.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve THREE seals with “L” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: SMS male/male/male

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
