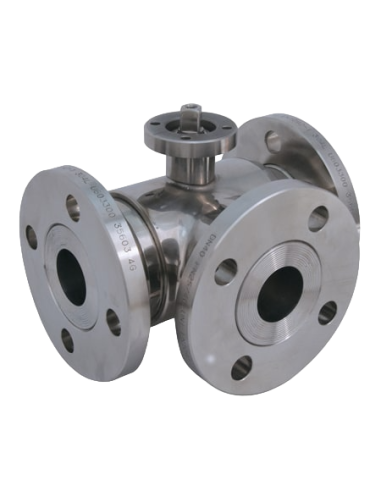

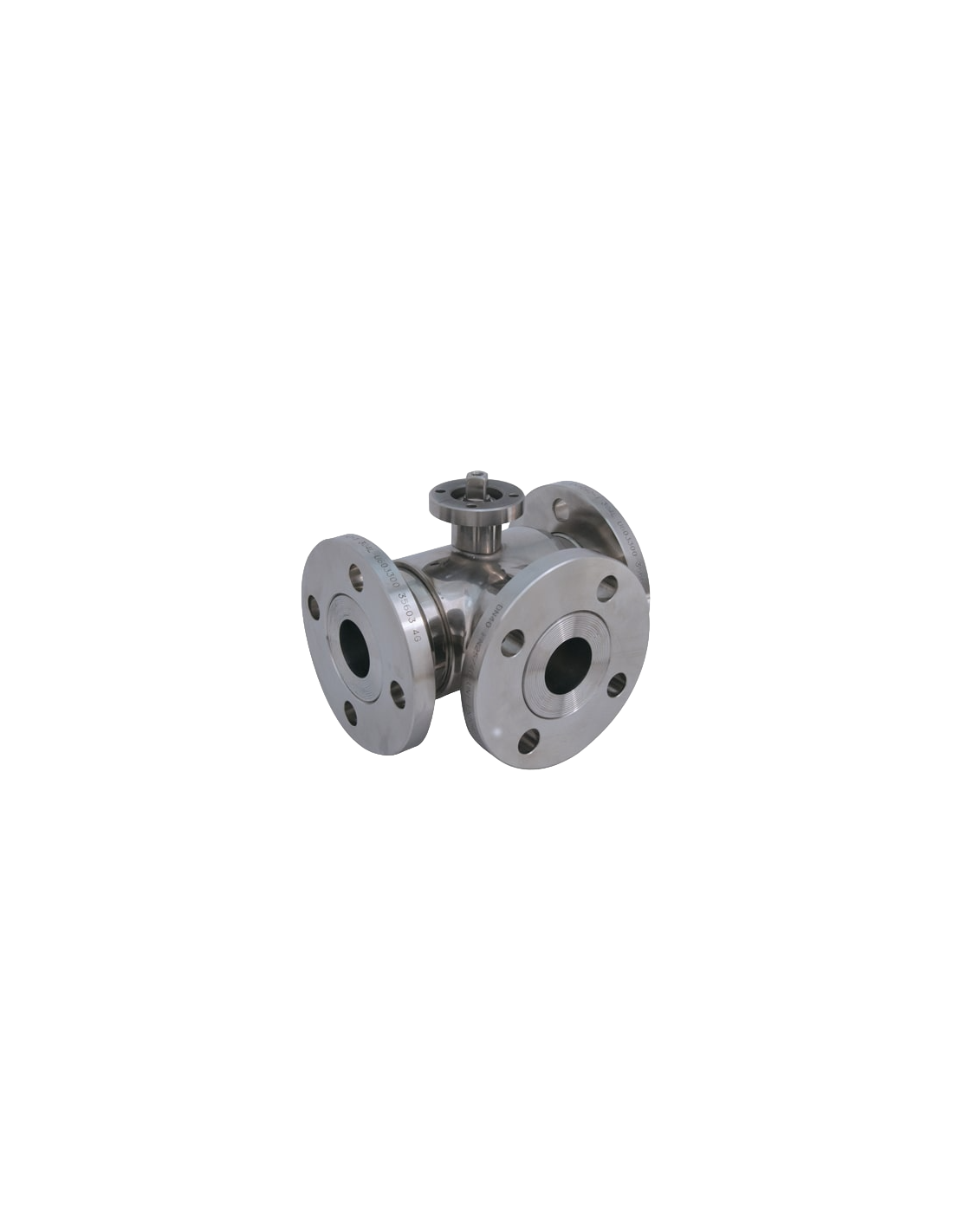

3 Way (L) Ball Valve - 3 SEALS STANDARD SEALS REVOLVING THREADED FLANGES UNI EN 1092-1 - 373050 | 4G Ghidini
3 Way (L) Ball Valve - 3 SEALS STANDARD SEALS REVOLVING THREADED FLANGES UNI EN 1092-1 - 373050 | 4G Ghidini

3 Way (L) Ball Valve - 3 SEALS STANDARD SEALS REVOLVING THREADED FLANGES UNI EN 1092-1 - 373050 | 4G Ghidini

The 3 Way (L) Ball Valve by 4G Ghidini is a versatile valve designed for efficient flow control. It features a three-seal system with an "L" port configuration, suitable for various industrial applications. The valve is equipped with a drive flange compatible with ISO 5211 and DIN 3337 standards for actuator mounting. It connects via revolving threaded flanges conforming to UNI EN 1092-1 standards, offering both full and reduced flow options. Constructed from durable Aisi 304L and Aisi 316L stainless steel, it is available in sizes ranging from DN65 to DN100. The valve operates effectively within a temperature range of -20°C to +170°C and is finished with a polished exterior. The standard seals are made from modified virgin P.T.F.E., with optional seals available in materials such as PTFE with glass, carbographite, or inox, and UHMW polyethylene, catering to specific temperature and application needs. Additionally, the valve can be equipped with an antistatic device compliant with ATEX standards and meets M.O.C.A. CE 1935/2004 regulations for safety and performance.
Standard (Options)
  • DIN
Connection (Options)
  • Revolving Threaded Flanges
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “L” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: Revolving threaded flanges UNI EN 1092-1

Flow: Full and reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
