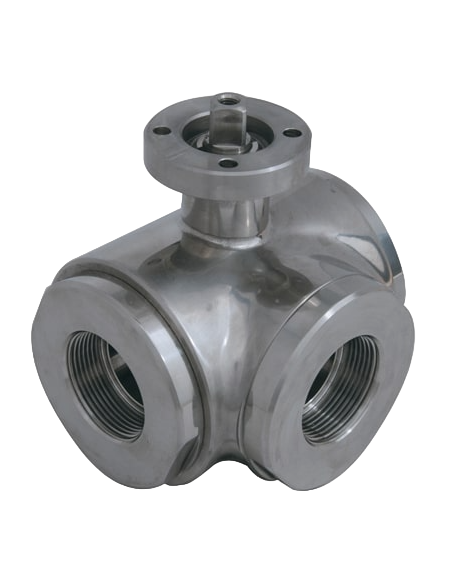

The 3 Way (L) Ball Valve by 4G Ghidini, model 373001, is a versatile valve designed for efficient fluid control. It features a three-seal system with an "L" port configuration, ensuring reliable operation. The valve is equipped with an ISO 5211 – DIN 3337 flange for actuator compatibility and has ISO 228 female threads for easy connection. Constructed from durable Aisi 304L and Aisi 316L stainless steel, it offers full flow capabilities and is available in sizes ranging from 2”1/2 to 4”. The standard seals are made from Modified Virgin P.T.F.E., suitable for operating temperatures between -20°C and +170°C. The valve boasts a polished outer finish and can be customized with an antistatic device for ATEX environments, as well as various seal materials for specific temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228-1
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “L” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: ISO 228 female/female/female thread

Flow: Full

Material: Aisi 304L (1.4307) –  Aisi 316L (1.4404)

Measure: from 2”1/2 to 4”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
