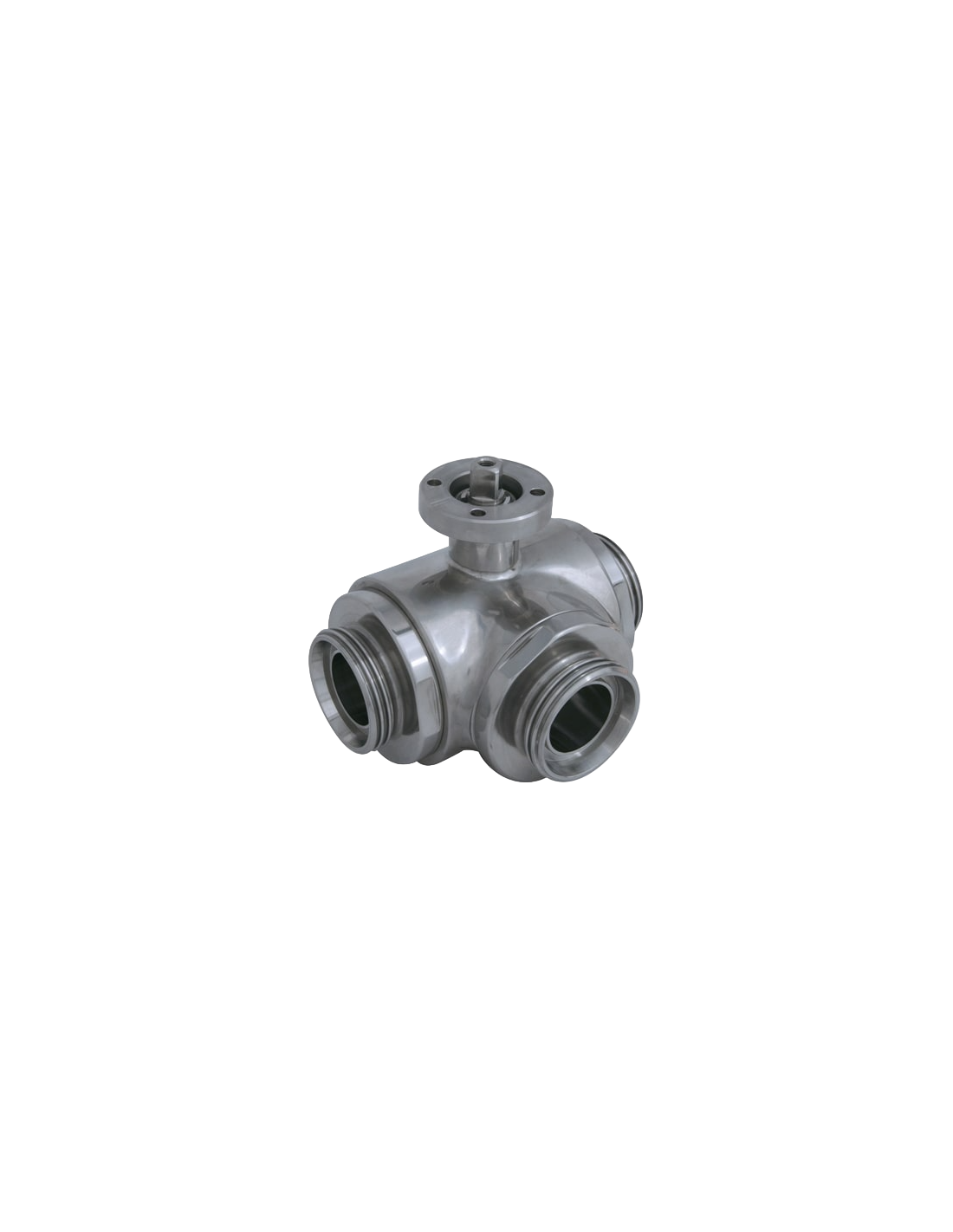

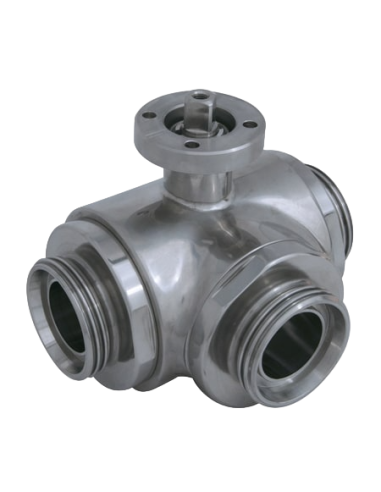

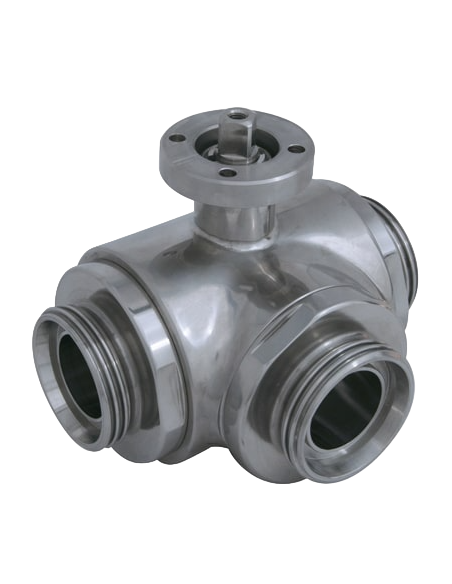

The 3 Way (L) Ball Valve by 4G Ghidini, model 373025, is a versatile valve designed for efficient fluid control. It features a three-seal system with an "L" port configuration, allowing for flexible flow direction. The valve is equipped with an ISO 5211 – DIN 3337 flange for actuator compatibility and has a full flow capacity. It is constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, ensuring durability and corrosion resistance. Available in sizes ranging from DN65 to DN100, the valve uses modified virgin P.T.F.E. seals and operates within a temperature range of -20°C to +170°C. The polished outer finish enhances its aesthetic and hygienic properties. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “L” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: DIN 11851 female/female/female

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
