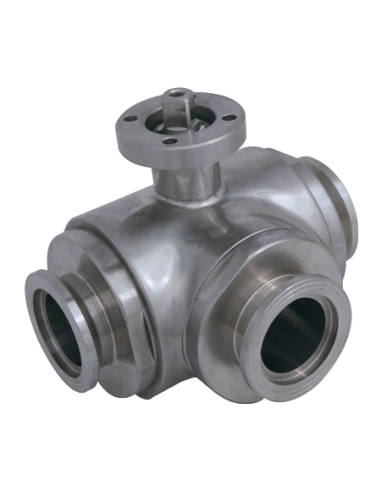

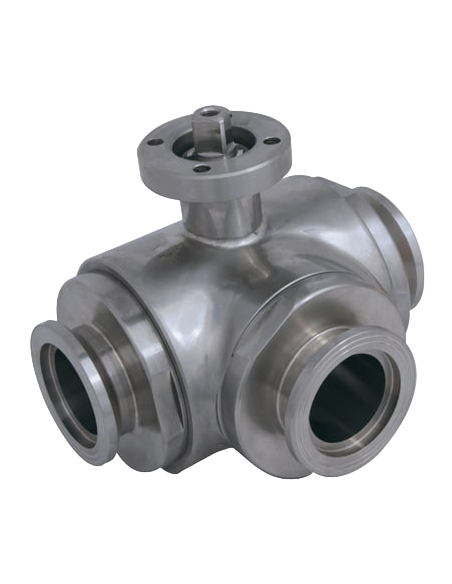

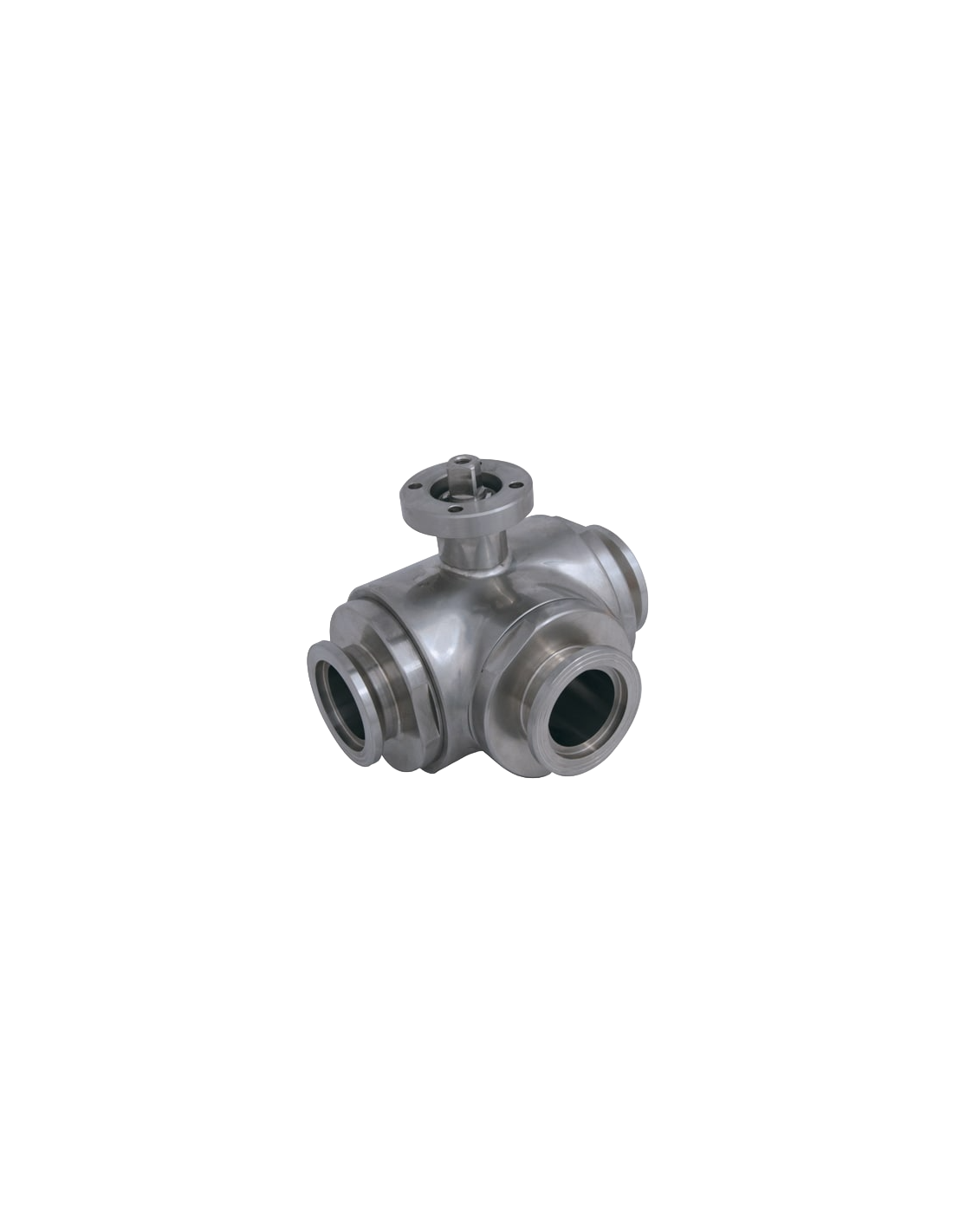

The 3 Way (L) Ball Valve by 4G Ghidini, model 373031, is a versatile valve designed for efficient flow control. It features a three-seal system with an "L" port configuration, suitable for full and reduced flow applications. The valve is constructed from durable Aisi 316L stainless steel and is available in sizes ranging from DN65 to DN100. It is equipped with a polished outer finish and can operate within a temperature range of -20°C to +170°C. The valve is compatible with ISO 5211 and DIN 3337 actuator flanges and connects via GAROLLA fittings. Standard seals are made from Modified Virgin P.T.F.E., with optional seals available in various materials for different temperature ranges. Additional features include an optional antistatic device compliant with ATEX standards and M.O.C.A. CE 1935/2004 certification.
Standard (Options)
  • DIN
Connection (Options)
  • Garolla
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “L” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: GAROLLA

Flow: Full and reduced

Material: Aisi 316L (1.4404)

Measure: from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°CPTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -200°C+80°C
