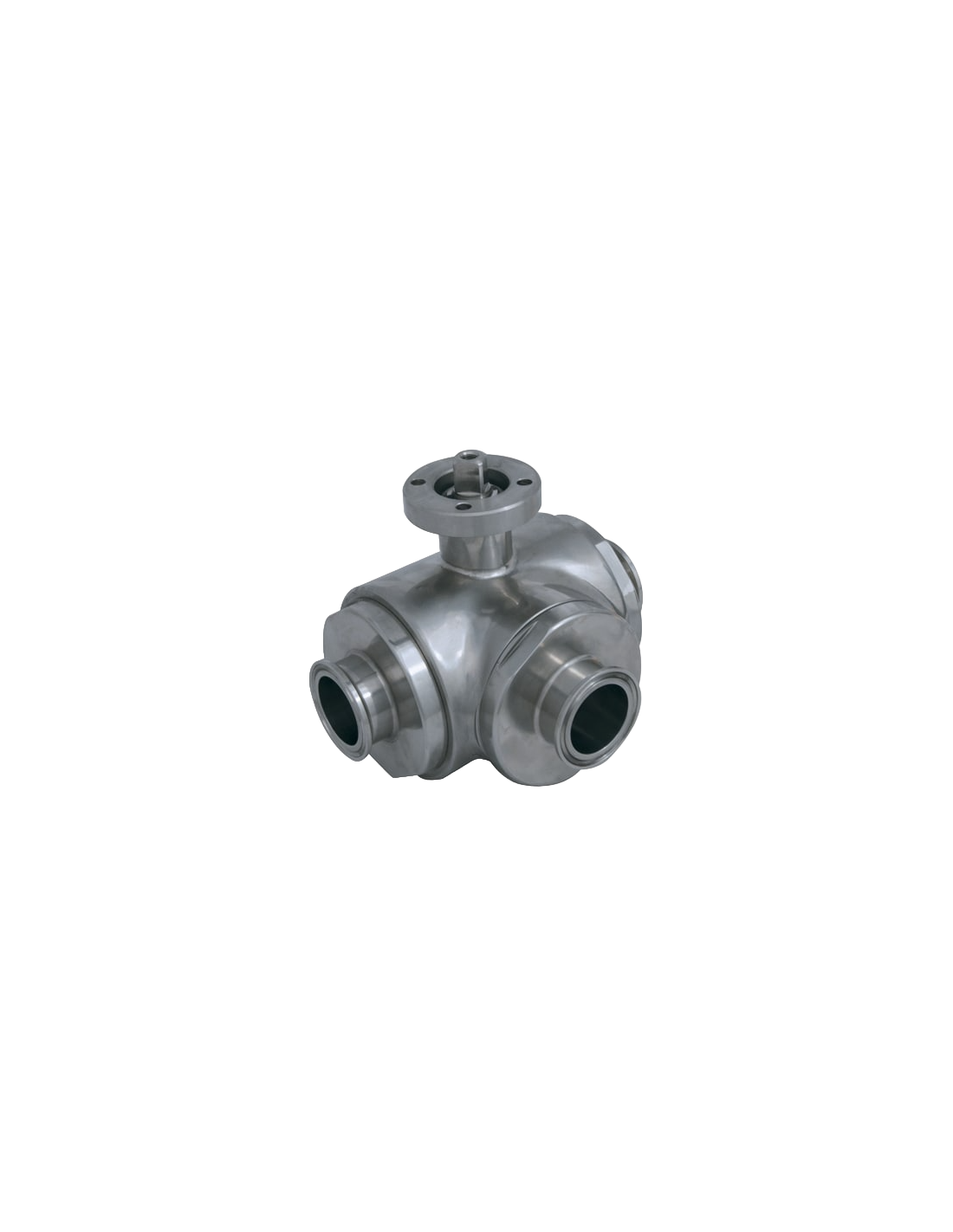

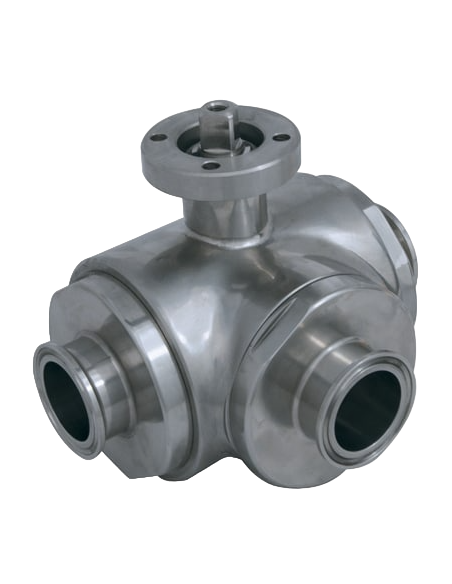

The 3 Way (L) Ball Valve - 3 SEALS - 373030 by 4G Ghidini is a versatile valve designed for efficient fluid control with an "L" port configuration. It features a drive compatible with ISO 5211 and DIN 3337 flanges for actuator integration. The valve offers connections via CLAMP norms DIN 32676 TAB.4 REIHE C for BS/OD tubes and DIN 32676 TAB.3 REIHE B for ISO 1127 tubes. It supports both full and reduced flow and is constructed from durable Aisi 304L and Aisi 316L stainless steel. Available in sizes ranging from 2″1/2 to 4” and DN65 to DN100, it operates within a temperature range of -20°C to +170°C. The valve is equipped with modified virgin P.T.F.E. seals and features a polished outer finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for specific temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 10
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

THREE-way ball valve three seals with “L” port

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.3 REIHE B For TUBE according to normative ISO 1127

Flow: Full and reduced

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • from 2″1/2 to 4”
  • from DN65 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
