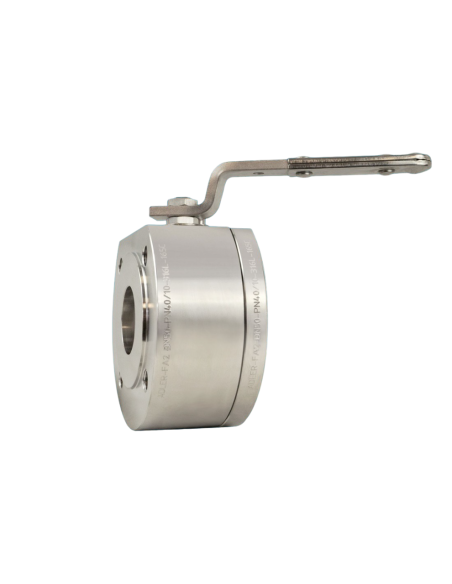

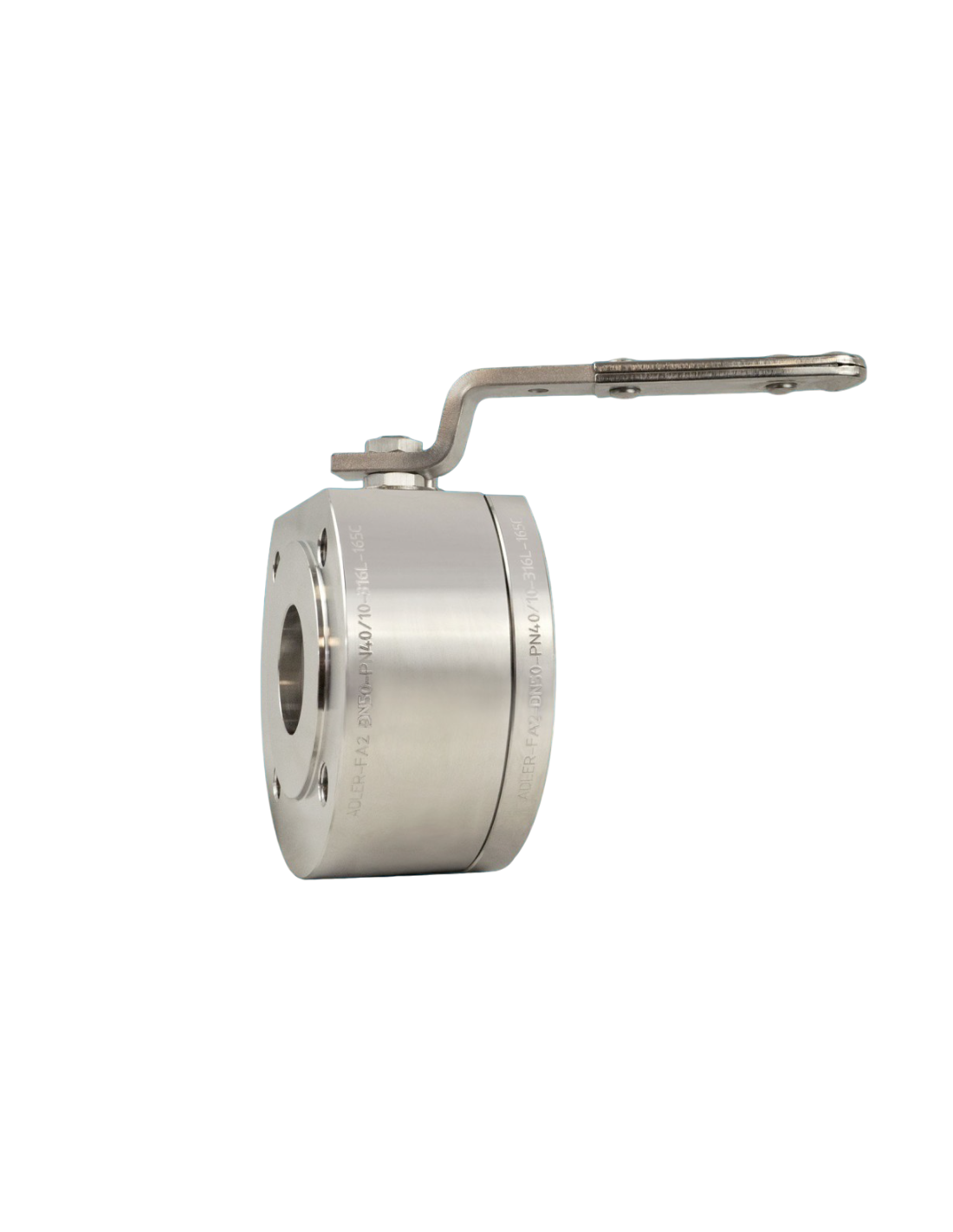

The Ball Valve Wafer - FA2 by ADLER is a full bore, wafer-type valve crafted from round bar, adhering to standards such as EN 12516.2, ASME B16.34, and ISO 14313. It is available in sizes ranging from DN 10 to DN 250 and is constructed from carbon steel, stainless steel, or special steel. The valve is rated for PN 6 / PN 10 ÷ 40 / ANSI 150 ÷ 300 and features double seals on the body/end junction, with a chevron ring on the stem. Optional features include an o-ring on the stem, fire-safe execution, cryogenic execution, and compliance with various directives like PED, TPED, and ATEX. It is certified for safety system S.I.L. 3 and fugitive emission class “A” ISO 15848. Standard features include an anti blow-out proof stem, antistatic device, and top flange ISO 5211. The valves are 100% air tested under water at 100 psi. Accessories available on demand include PTFE seats, stem extensions, various actuators, and positioners.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105
  • ASTM A479 Type 304
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Ball valve “wafer type” full bore, manufactured from round bar, according to EN 12516.2; ASME B16.34; ISO 14313; EN 1092-1; EN1759-1; ASME B16.5 ANSI B1.1; ISO 14313; EN 558 (Basic series 100)

Available size from DN 10 to DN 250 in carbon steel,  stainless steel and special steel

Rating PN 6 / PN 10 ÷ 40 / ANSI 150 ÷ 300.

Double seals on body/end junction (patent n°00216919)

Chevron ring on stem.

On request :

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution BS6755 API 607/6FA (patent n° 00219617)

– cryogenic execution ISO 28921

– according to PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX14/34/UE directive

– degrease according to ISO 23208 oxige service

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device BS5146/74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic extension

oval handle

pneumatic actuator double/single acting

electric actuator

manual gear box

pneumatic/electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3.

– certified for fugitive emission in class “A” ISO 15848.

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V
