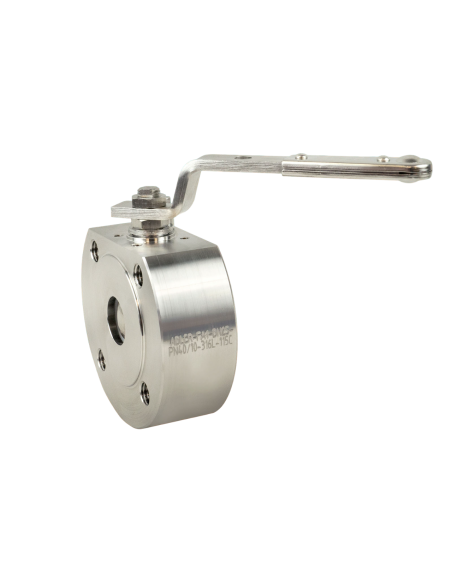

The Ball Valve Wafer - FA1 by ADLER is a high-performance, full-bore valve designed for various industrial applications. Manufactured from round bar, it complies with multiple international standards, including EN 12516.2, ASME B16.34, and ISO 14313. Available in sizes DN 10 to DN 50, it is constructed from carbon steel, stainless steel, and special steel, with pressure ratings of PN 6 / PN 10 ÷ 40 / ANSI 150 ÷ 300. The valve features double seals at the body/insert junction and a chevron ring on the stem for enhanced sealing. Optional features include an O-ring on the stem, fire-safe execution, cryogenic execution, and compliance with various directives such as PED, TPED, and ATEX. It is certified for safety system S.I.L. 3 and fugitive emission class “A” ISO 15848. Standard features include an anti blow-out proof stem, antistatic device, and top flange ISO 5211. The valve is 100% air tested under water at 100 psi. Optional accessories include PTFE seats, stem extensions, various actuators, and positioners.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged (Wafer)
Material (Options)
  • ASTM A105N
  • ASTM A479 Type 304
  • ASTM A479 Type 316
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE
  • RPTFE

Datasheet and documents

Description

Ball valve “wafer type”, full bore, manufactured from round bar, according to EN 12516.2; ASME B16.34; ISO 14313; EN 1092-1; EN 1759-1; ASME B16.5; ANSI B1.1.; ISO14313; EN 558 (basic series 100)

Available size from DN 10 to DN 50 in carbon steel, stainless steel and special steel

Rating PN 6 / PN 10 ÷ 40 / ANSI 150 ÷ 300.

Double seals on body/insert junction

Chevron ring on stem

On request :

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution according to BS6755 API 607/6FA (patent n° 00219617)

– cryogenic excution ISO 28921

– according to PED 14/68/UE directive

– according to TPED 2010/35/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 oxigen service

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-polyammidic RAL 5012 35 microns

antistatic device BS5146/74

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic extension

oval handle

pneumatic actuator double/single acting

electric actuator

manual gear box

pneumatic/electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
