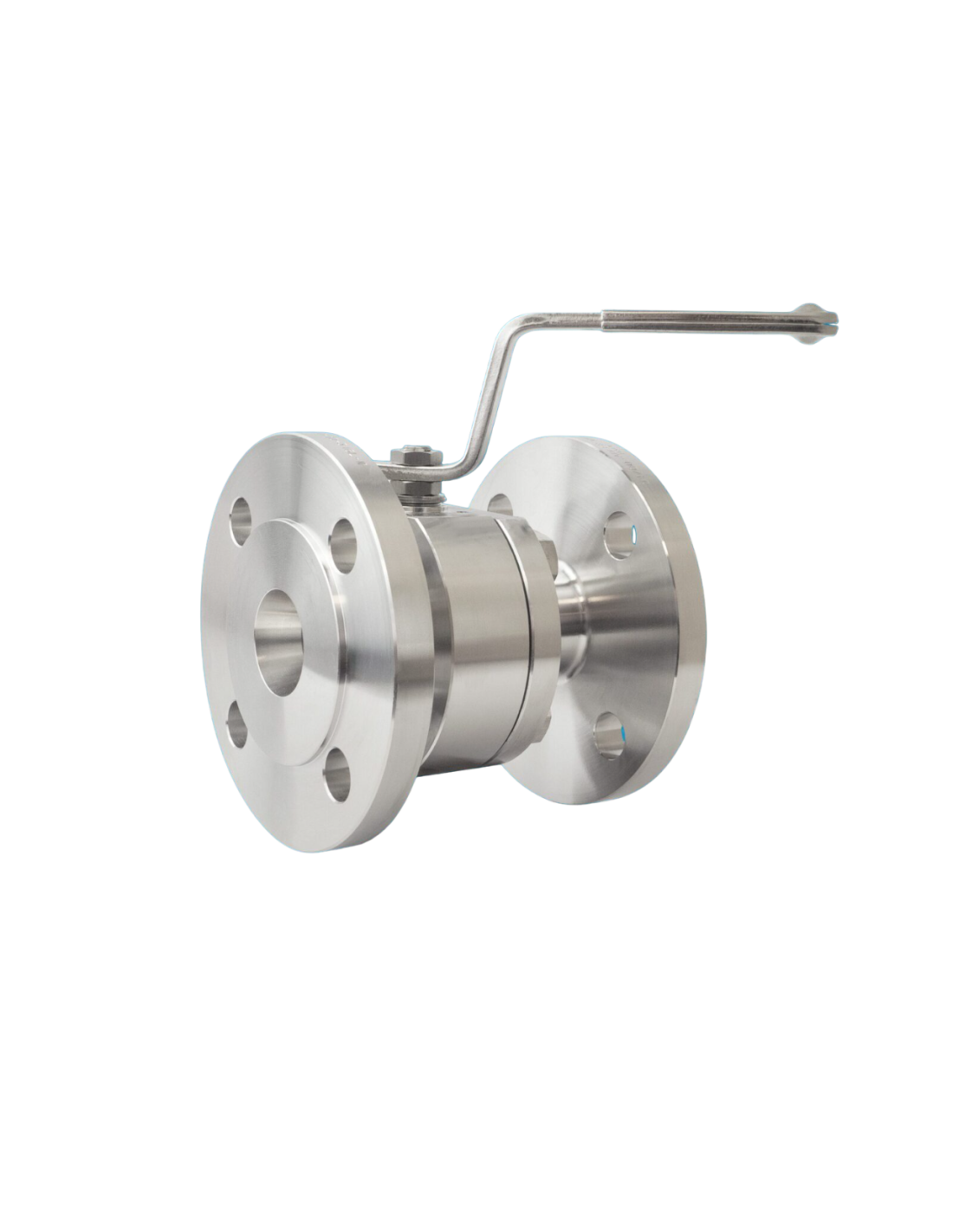

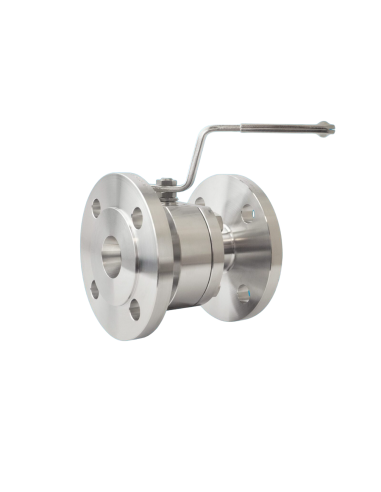

The Ball Valve Venturi Port - VM2 by ADLER is a high-performance, two-piece "SPLIT BODY" ball valve designed for precision and durability. Constructed from either round bar or casted materials, it adheres to multiple international standards, including EN 12516.2, ASME B16.34, and ISO 14313. Available in sizes ranging from DN 40 to DN 200, the valve is offered in carbon steel, stainless steel, and special steel, with a pressure rating of PN 10 to 40. It features a patented double seal on the body/end junction and a chevron ring on the stem for enhanced reliability. Optional features include an O-ring on the stem, fire-safe execution, and compliance with PED and ATEX directives. The valve is also certified for safety system S.I.L. 3 and fugitive emission class "A" ISO 15848. Standard features include an anti blow-out proof stem, antistatic device, and top flange ISO 5211. Each valve undergoes rigorous testing, being 100% air tested under water at 100 psi. Additional accessories such as PTFE seats, stem extensions, and various actuators are available upon request.
Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • ASTM A105
  • ASTM A351 CF8M
  • ASTM A479 Type 304
  • ASTM A479 Type 304L
  • ASTM A479 Type 316
  • ASTM A479 Type 316L
Pressure Rating (Options)
  • PN 10
  • PN 16
  • PN 25
  • PN 40
Seat (Options)
  • PTFE

Datasheet and documents

Description

Ball valve 2 piece “SPLIT BODY” type Venturi port, manufactured from round bar or casted, construction in according to EN 12516.2; ASME B16.34; EN 1759-1 ; ASME B16.5; ISO 14313; EN 558 (Basic series 27).

Available size from DN 40 to DN 200 in carbon steel, stainless steel and special steel

Rating PN 10 ÷ 40.

Double seals on body/end junction (patent n°00216919)

chevron ring on stem.

On request :

– with o’ring on stem (patent n°00219688).

– fire-safe execution according to ISO 10497 API 607

– fire safe execution according to  BS6755 API 607/6FA (patent n° 00219617)

– according to PED 14/68/UE directive

– according to ATEX 14/34/UE directive

– degreased according to ISO 23208 oxigen service

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848Available with o’ring on stem (patent n°00219688).

Standard productions

anti blow out proof stem

construction and marking BS 5351

carbon steel valves painted with first coat of epoxy-

polyammidic RAL 5012 35 microns

antistatic device

top flange ISO 5211

all valves 100% air tested under water at 100 psi

On demand accessories

PTFE / glass renforced PTFE half shell

PTFE seats filled glass – carbon – S.S. – bronze, metal core

stem extension

cryogenic  extension

oval handle

pneumatic actuator double/single acting

electric  actuator

manual gear box

pneumatic / electro-pneumatic positioner

Certificates

– certified in safety system S.I.L. 3

– certified for fugitive emission in class “A” ISO 15848Available with o’ring on stem (patent n°00219688).

– ISO 9001 by L.R.

– PED DIR. 2014/68/UE by L.R.

– ATEX DIR. 2014/34/UE by B.V.

– FIRE SAFE EXECUTION BS6755/API 607 by L.R.

– FIRE SAFE TESTED ISO 10497 by L.R.

– ISO 15848 by TÜV

– ANTISTATIC DEVICE by L.R.

– EAC CERTIFICATION by B.V.
