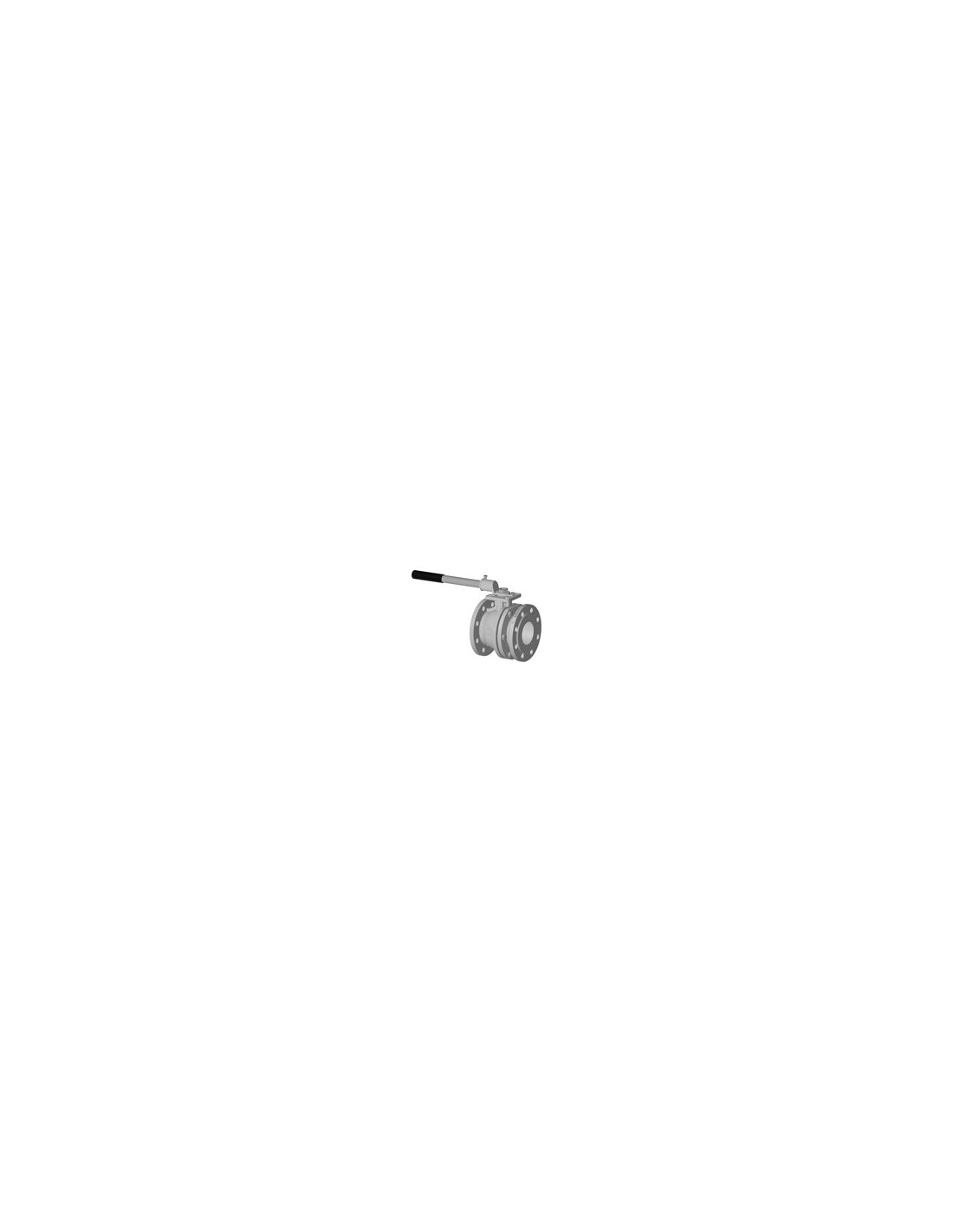

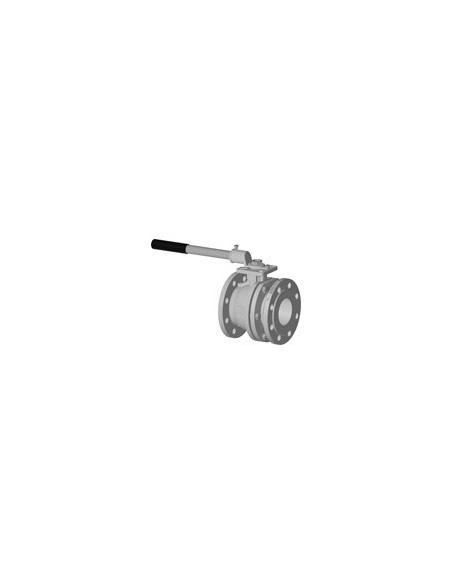

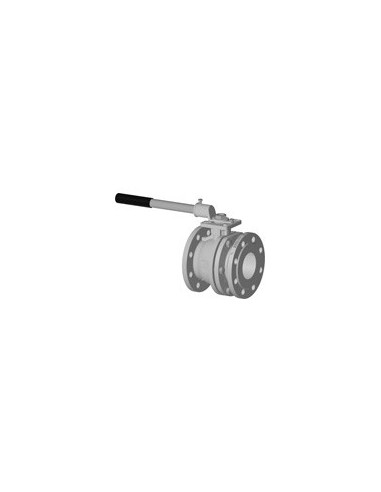

The Ball Valve - UNIFLOW Fig. BV4M by Comeval is a high-quality floating ball valve designed for efficient flow control in various process applications. It features a split body construction with flanges and is made from investment casting stainless steel 316, ensuring durability and resistance to corrosion. The valve includes a PTFE seat and is bidirectional, allowing for versatile flow management. It is available in nominal sizes ranging from DN15 to DN200, with design pressures of PN40 for DN15-50 and PN16 for DN65-200. The valve can be operated manually via a hand lever, or automatically using gear or diverse pneumatic and electric actuators. It is suitable for applications involving water, HVAC systems, lubrication, gases, compressed air, and other process fluids. The valve is certified with declarations of conformity, including ATEX and EAC certifications, ensuring compliance with international standards.
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • Flanged
Material (Options)
  • 1.0619
  • 1.4408
Pressure Rating (Options)
  • PN 16
  • PN 40

Datasheet and documents

Description

Floating ball valves, split body, with flanges, construction in investment casting st. steel 316, PTFE seat, bidirectional, direct mounting design, for stopping the flow in process applications. Operated by hand lever, gear or actuator.

Specification of the range:

Nominal size range DN15-200, design pressure PN40 (DN15-50) / PN16 (DN65-200), operated by hand lever, gear or diverse pneumatic and electric actuators styles and accessories.

Other typical denominations: Flanged steel floating ball valves

Applications: Water, HVAC, lubrication, gases, compressed air, process, etc.

Certifications: Flanged steel floating ball valves declaration of conformity, Flanged steel floating ball valves declaration of conformity atex, Eac declaration 010, Eac declaration 032

Certificates

Flanged steel floating ball valves declaration of conformity

Flanged steel floating ball valves declaration of conformity atex

Eac declaration 010

Eac declaration 032
