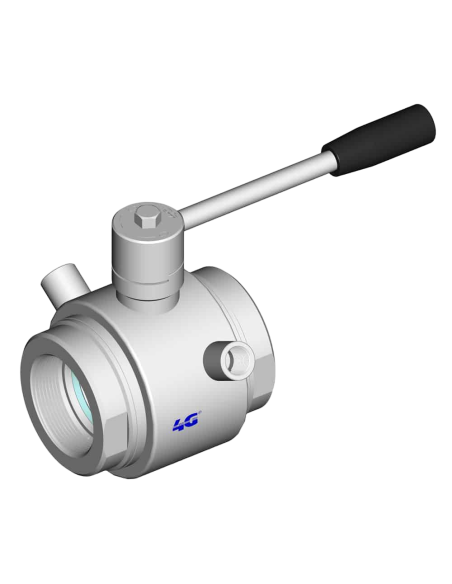

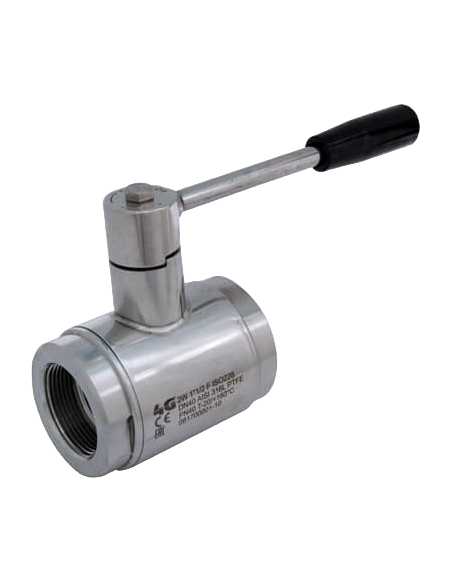

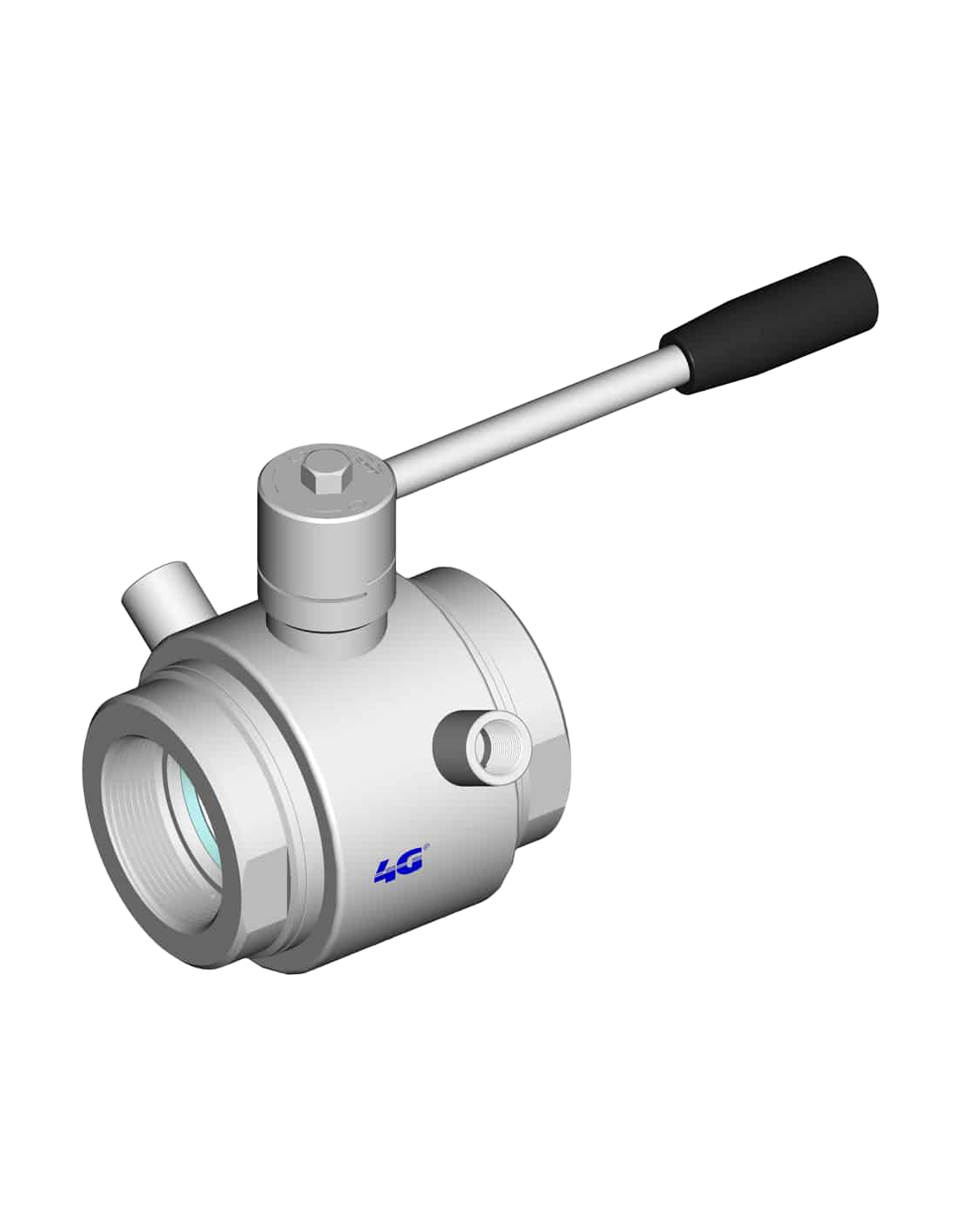

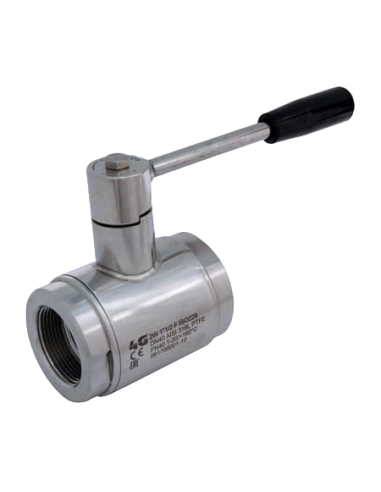

The Ball Valve ISO 228 F/F - 100101 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an inox lever for operation and connects via ISO 228 female/female threads. The valve supports full flow and is constructed from durable Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, with sizes ranging from 1/4” to 4”. It is equipped with modified virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +170°C. The valve has a polished outer finish for enhanced durability and aesthetics. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • ISO 228 F/F
Material (Options)
  • S.S. 304L
  • S.S. 316L
Pressure Rating (Options)
  • PN 100
Seat (Options)
  • PTFE + Fiber Glass
  • PTFE + Carbographite
Heating Jacket
  • No
  • Yes

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection: ISO 228 female/female thread

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
