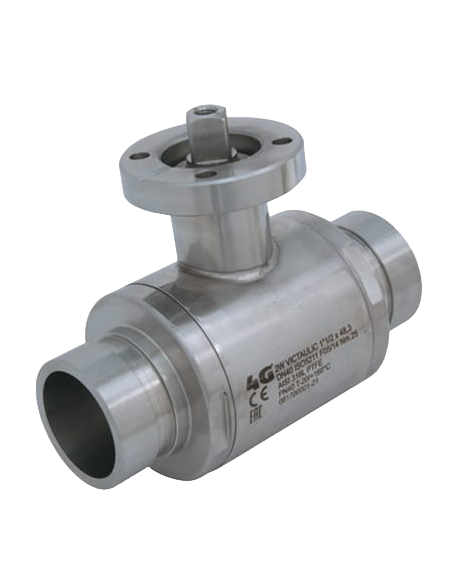

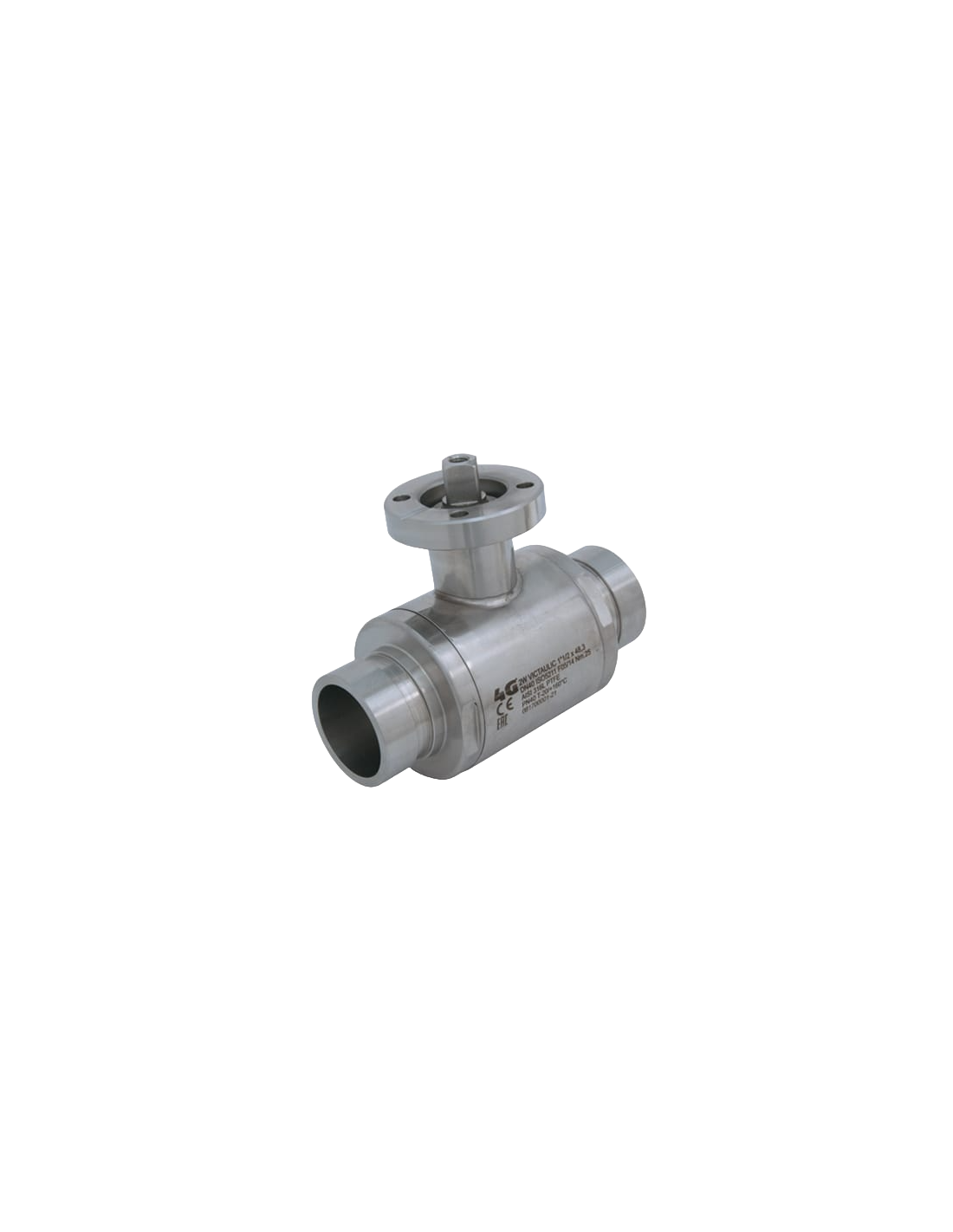

The Ball Valve STANDARD SEALS - VICTAULIC - 213060 | 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an ISO 5211 – DIN 3337 flange for actuator compatibility and connects via a VICTAULIC system. The valve offers full flow and is constructed from durable Aisi 316L (1.4404) stainless steel, available in sizes ranging from DN20 to DN100. It is equipped with modified virgin P.T.F.E. seals and operates within a temperature range of -20°C to +170°C. The valve has a sandblasted outer finish and includes screws for mounting an actuator. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature and chemical resistance requirements.
Standard (Options)
  • DIN
Connection (Options)
  • Victaulic
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: VICTAULIC

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN20 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Sandblasted

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
