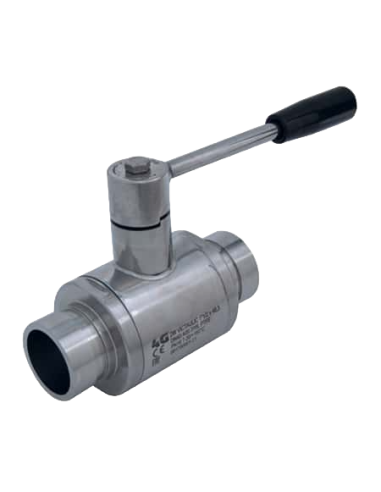

The Ball Valve STANDARD SEALS - VICTAULIC - 210160 | 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an Inox lever drive and VICTAULIC connection, ensuring reliable operation and easy installation. The valve is constructed from high-quality Aisi 316L (1.4404) stainless steel, offering excellent corrosion resistance. It supports full flow and is available in sizes ranging from DN20 to DN100. The seals are made from Modified Virgin P.T.F.E., suitable for operating temperatures between -20°C and +170°C. The valve's outer finish is sandblasted for durability. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges, such as PTFE with glass, carbographite, inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • Victaulic
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: Inox lever

Connection: VICTAULIC

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from da DN20 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Sandblasted

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
