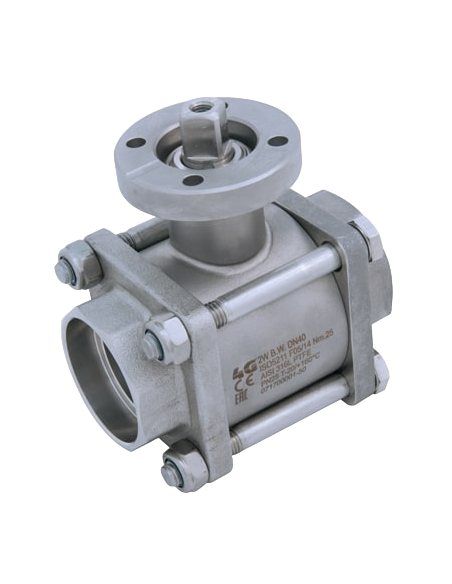

The Ball Valve STANDARD SEALS SOCKET WELDING - 503040 by 4G Ghidini is a two-way, three-piece ball valve designed for efficient flow control. It features a drive with ISO 5211 and DIN 3337 flange compatibility for actuators and utilizes socket-welding connections. The valve offers full flow capacity and is constructed from durable Aisi 316L (1.4404) stainless steel, suitable for a range of sizes from DN8 to DN100. It is equipped with virgin P.T.F.E. seals and operates within a temperature range of -20°C to +160°C. The outer finish is sandblasted for enhanced durability. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature requirements, such as PTFE with glass, carbographite, inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • Socket Weld
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: Socket-welding

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN8 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Sandblasted

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
