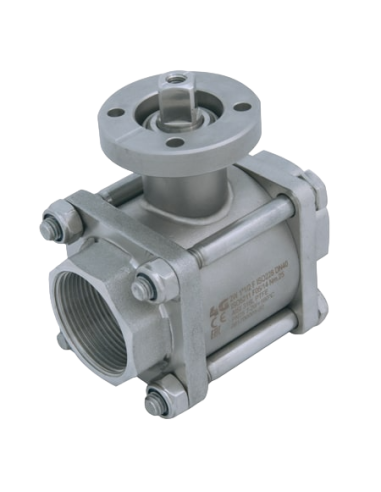

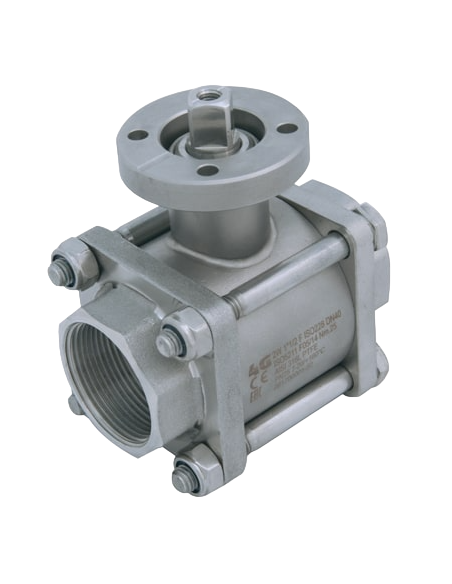

The Ball Valve STANDARD SEALS - NPT F/F - 503004 by 4G Ghidini is a robust two-way ball valve designed with a three-piece construction. It features an Inox lever for operation and connects via NPT female/female threads, ensuring a full flow. Constructed from durable Aisi 316L (1.4404) stainless steel, this valve is available in sizes ranging from 1/4” to 4”. It is equipped with virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +160°C. The valve's exterior is sandblasted for a refined finish. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges, such as PTFE with glass, carbographite, inox, and UHMW polyethylene.
Standard (Options)
  • DIN
Connection (Options)
  • NPT
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16
  • PN 25
  • PN 40
  • PN 64
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve, Three Pieces

Drive: Inox lever

Connection: NPT female/female thread

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Sandblasted

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
