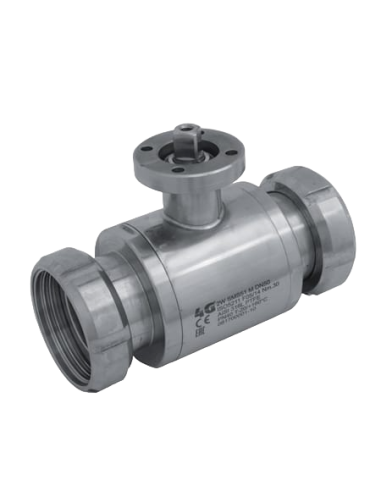

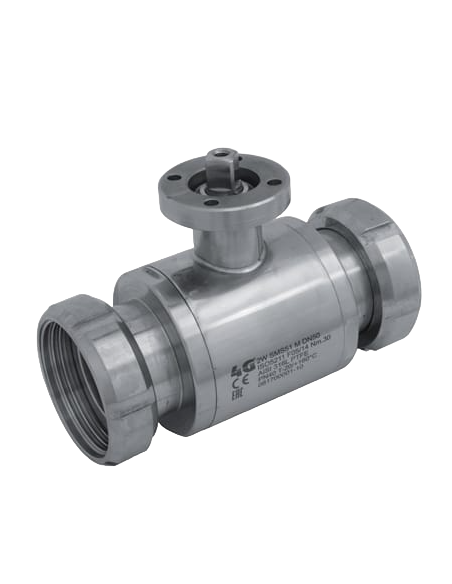

The Ball Valve STANDARD SEALS - SMS M/M - 103046 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an ISO 5211 – DIN 3337 flange for actuator drive and SMS male/male connections, ensuring compatibility and ease of installation. The valve offers full flow and is constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, available in sizes ranging from DN20 to DN100. It is equipped with modified virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +170°C. The valve's polished outer finish enhances its durability and aesthetic appeal. Screws for mounting the actuator are included. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature ranges, such as PTFE with glass, carbographite, inox, and UHMW polyethylene. The valve also meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: SMS male/male

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN20 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
