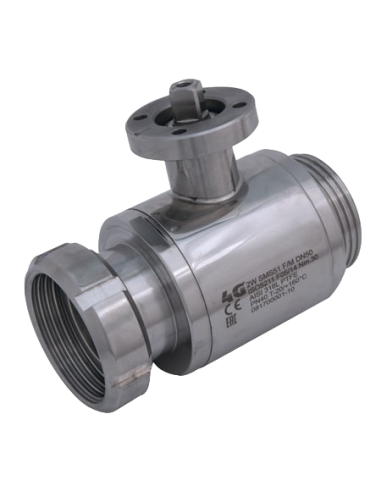

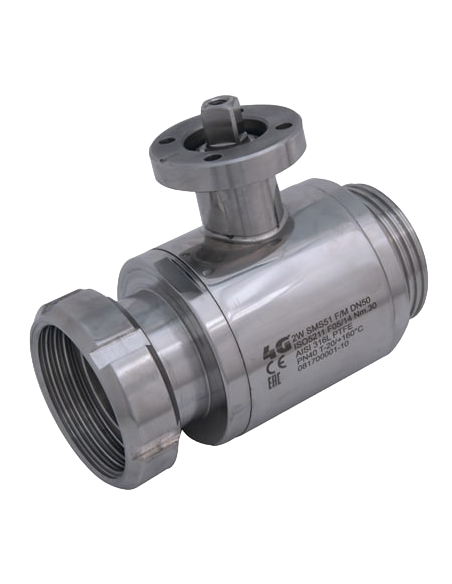

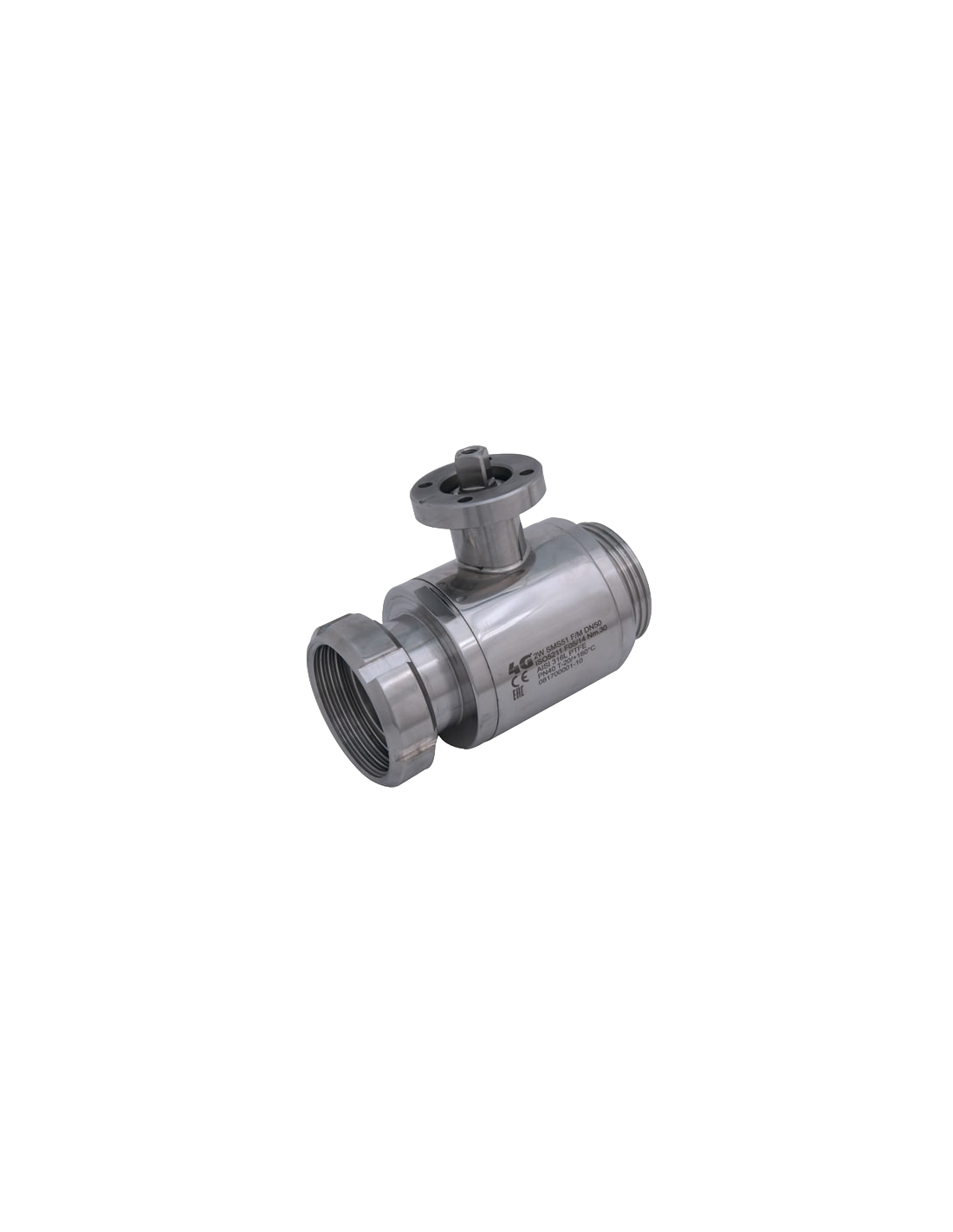

The Ball Valve STANDARD SEALS - SMS F/M - 103045 by 4G Ghidini is a two-way ball valve designed for efficient fluid control. It features an ISO 5211 – DIN 3337 flange for actuator drive and SMS female/male connections, ensuring compatibility and ease of installation. The valve supports full flow and is constructed from high-quality materials, including 304L (1.4307) and Aisi 316L (1.4404) stainless steel, with a polished outer finish for enhanced durability and aesthetics. Available in sizes ranging from DN20 to DN100, it operates effectively within a temperature range of -20°C to +170°C. The valve includes modified virgin P.T.F.E. seals, with optional seal materials available upon request for specific applications, such as PTFE with glass, carbographite, or inox, and UHMW polyethylene. Additionally, it offers optional features like an antistatic device compliant with ATEX standards and M.O.C.A. CE 1935/2004 certification. Screws for mounting the actuator are included for convenience.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: SMS female/male

Flow: Full

Material: 304L (1.4307) – Aisi 316L (1.4404)

Measure: from DN20 to DN100

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

Screws for mounting actuator included

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
