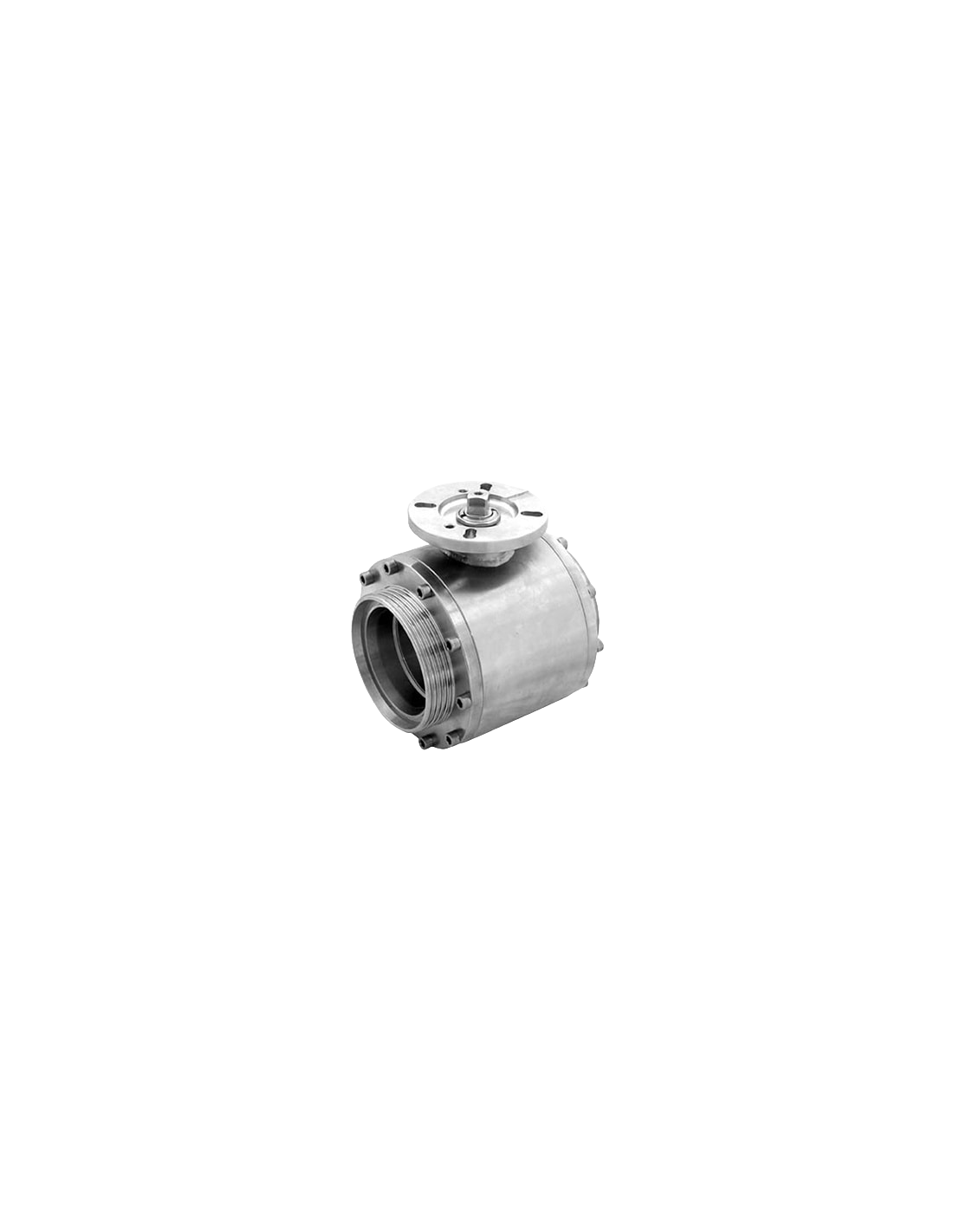

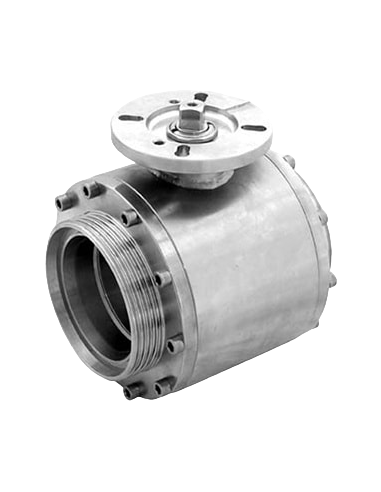

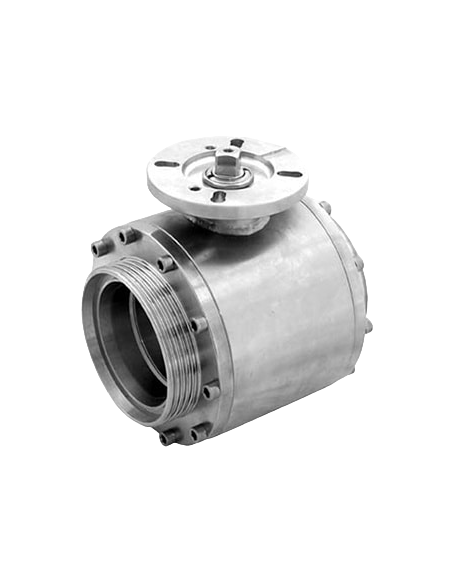

The Ball Valve STANDARD SEALS - DIN 11851 F/F - 113025 by 4G Ghidini is a two-way ball valve designed for efficient fluid control. It features an ISO 5211 – DIN 3337 flange for actuator compatibility and DIN 11851 female/female connections, ensuring secure and reliable installation. The valve offers full flow capacity and is constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, providing excellent durability and corrosion resistance. It measures 5 inches and is equipped with modified virgin P.T.F.E. seals, suitable for operating temperatures ranging from -20°C to +170°C. The valve's outer finish is turned, and it includes screws for mounting an actuator. Additionally, it features an antistatic device compliant with ATEX standards (II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db). Optional M.O.C.A. CE 1935/2004 certification is available upon request.
Standard (Options)
  • DIN
Connection (Options)
  • DIN 11851
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection: DIN 11851 female/female

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: 5”

Seals: Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Turned

Screws for mounting actuator included

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

On request:

M.O.C.A. CE 1935/2004
