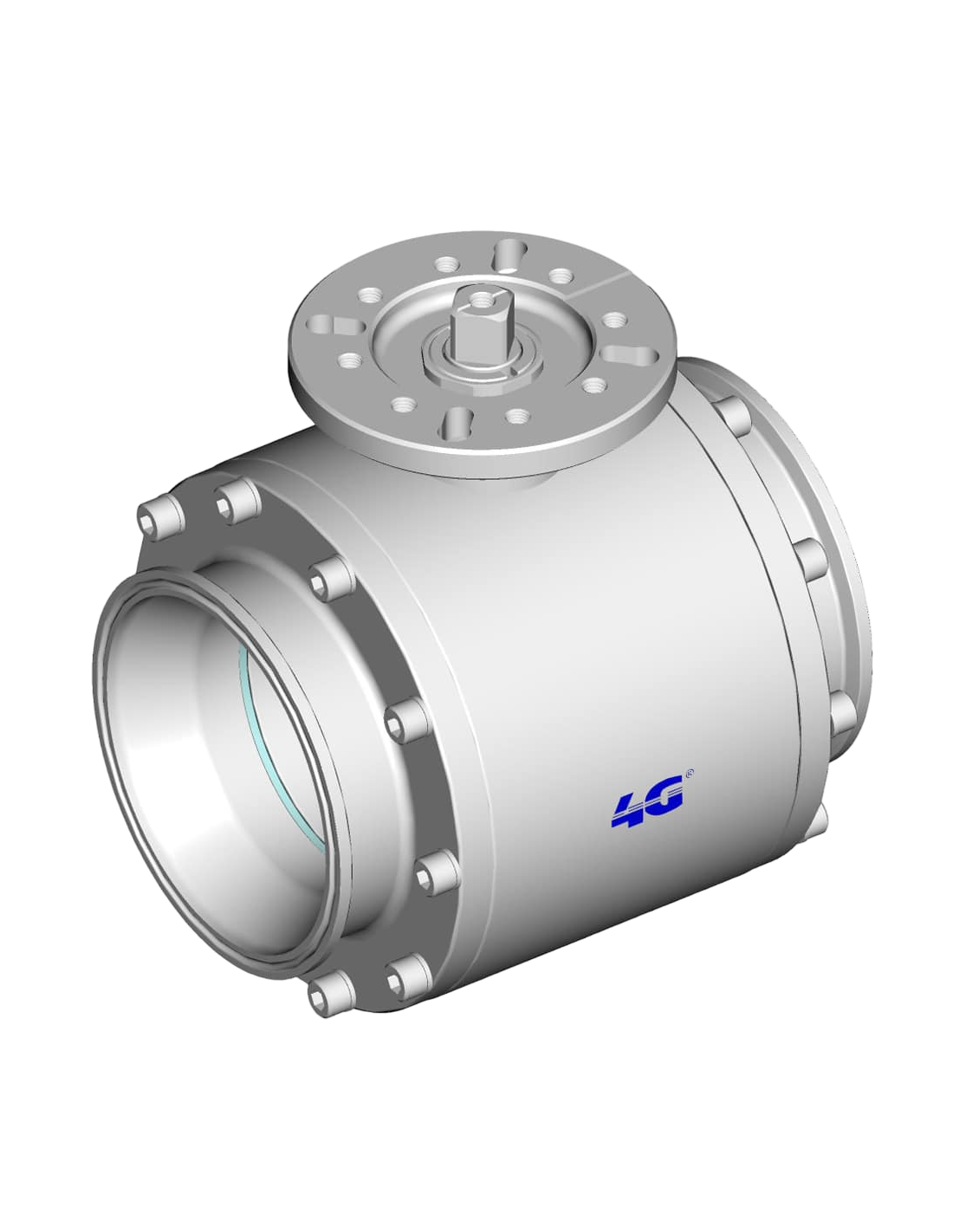

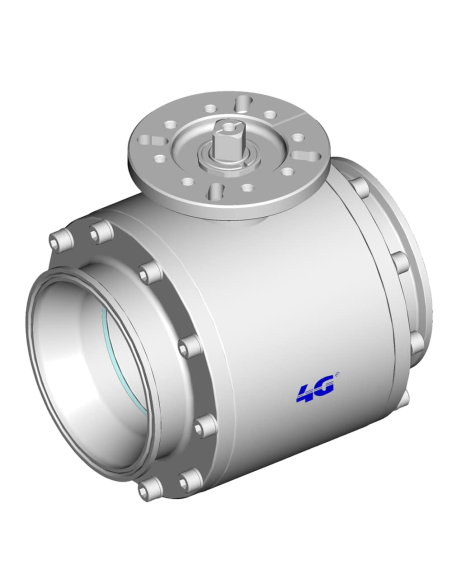

The Ball Valve - 113030 | 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an ISO 5211 – DIN 3337 flange for actuator drive, ensuring compatibility with various actuators. The valve offers connections via CLAMP norms DIN 32676 TAB.4 REIHE C and TAB.2 REIHE A, suitable for tubes conforming to BS/OD (ASTM A270) and DIN 11850 standards, respectively. Constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, it is available in sizes 5” and DN125. The valve is equipped with P.T.F.E. Vergine Modificato seals and operates within a temperature range of -20°C to +170°C. It features a turned outer finish and includes screws for mounting an actuator. Additionally, it is equipped with an antistatic device compliant with ATEX standards II 2G Ex h IIC T4 Gb and II 2D Ex h IIIC T135°C Db. Optional M.O.C.A. CE 1935/2004 certification is available upon request.
Standard (Options)
  • DIN
Connection (Options)
  • Clamp
Material (Options)
  • 1.4307
  • 1.4404
Pressure Rating (Options)
  • PN 16
Seat (Options)
  • PTFE Virgin (Modified)

Datasheet and documents

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Connection:

  • CLAMP normative DIN 32676 TAB.4 REIHE C For TUBE according to normative BS/OD (ASTM A270)
  • CLAMP normative DIN 32676 TAB.2 REIHE A For TUBE according to normative DIN 11850

Flow: Totale

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure:

  • 5”
  • DN125

Seals: P.T.F.E. Vergine Modificato

Operating temperature: -20°C+170°C

Outer finish: Turned

Screws for mounting actuator included

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

On request:

M.O.C.A. CE 1935/2004
