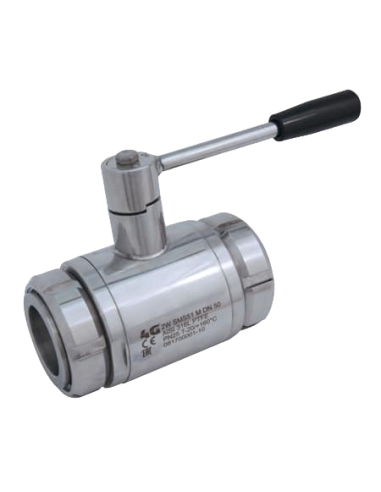

The Ball Valve INTEGRAL SEALS - SMS M/M - 130146 by 4G Ghidini is a two-way ball valve designed for efficient fluid control. It features an inox lever for operation and SMS male/male connections, ensuring secure and reliable installation. The valve offers full flow capacity and is constructed from durable Aisi 316L stainless steel, with sizes ranging from DN20 to DN100. It is equipped with virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +160°C. The valve's outer finish is polished for a sleek appearance. Optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass, extending the temperature range to -20°C to +170°C. Additionally, it meets M.O.C.A. CE 1935/2004 standards for materials in contact with food.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seals”

Drive: Inox lever

Connection: SMS male/male

Flow: Full

Material: Aisi 316L

Measure: from DN20 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
