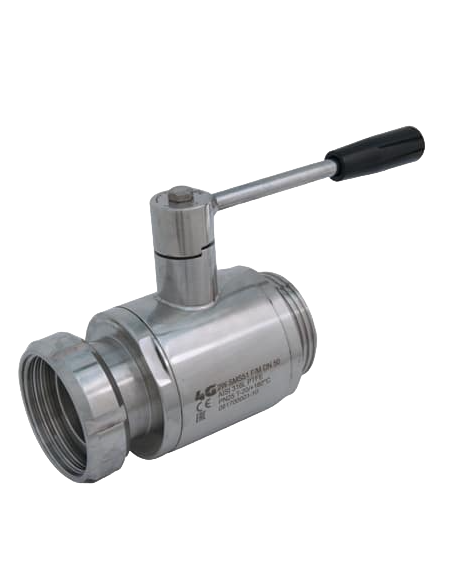

The Ball Valve INTEGRAL SEALS - SMS F/M - 130145 by 4G Ghidini is a two-way ball valve designed for efficient fluid control. It features an inox lever drive and SMS female/male connections, ensuring a secure and reliable fit. The valve offers full flow capacity and is constructed from high-quality Aisi 316L (1.4404) stainless steel, available in sizes ranging from DN20 to DN100. It is equipped with virgin P.T.F.E. seals, suitable for operating temperatures between -20°C and +160°C, and boasts a polished outer finish for enhanced durability and aesthetics. Optional features include an antistatic device compliant with ATEX standards and seals made of PTFE with glass, extending the temperature range to -20°C to +170°C. The valve also meets M.O.C.A. CE 1935/2004 regulations, ensuring safety and compliance for use in various applications.
Standard (Options)
  • DIN
Connection (Options)
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin

Datasheet and documents

Description

TWO-way ball valve “Integral Seal”

Drive: Inox lever

Connection: SMS female/male

Flow: Full

Material: Aisi 316L (1.4404)

Measure: from DN20 to DN100

Seals: Virgin P.T.F.E.

Operating temperature: -20°C+160°C

Outer finish: Polished

On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C
