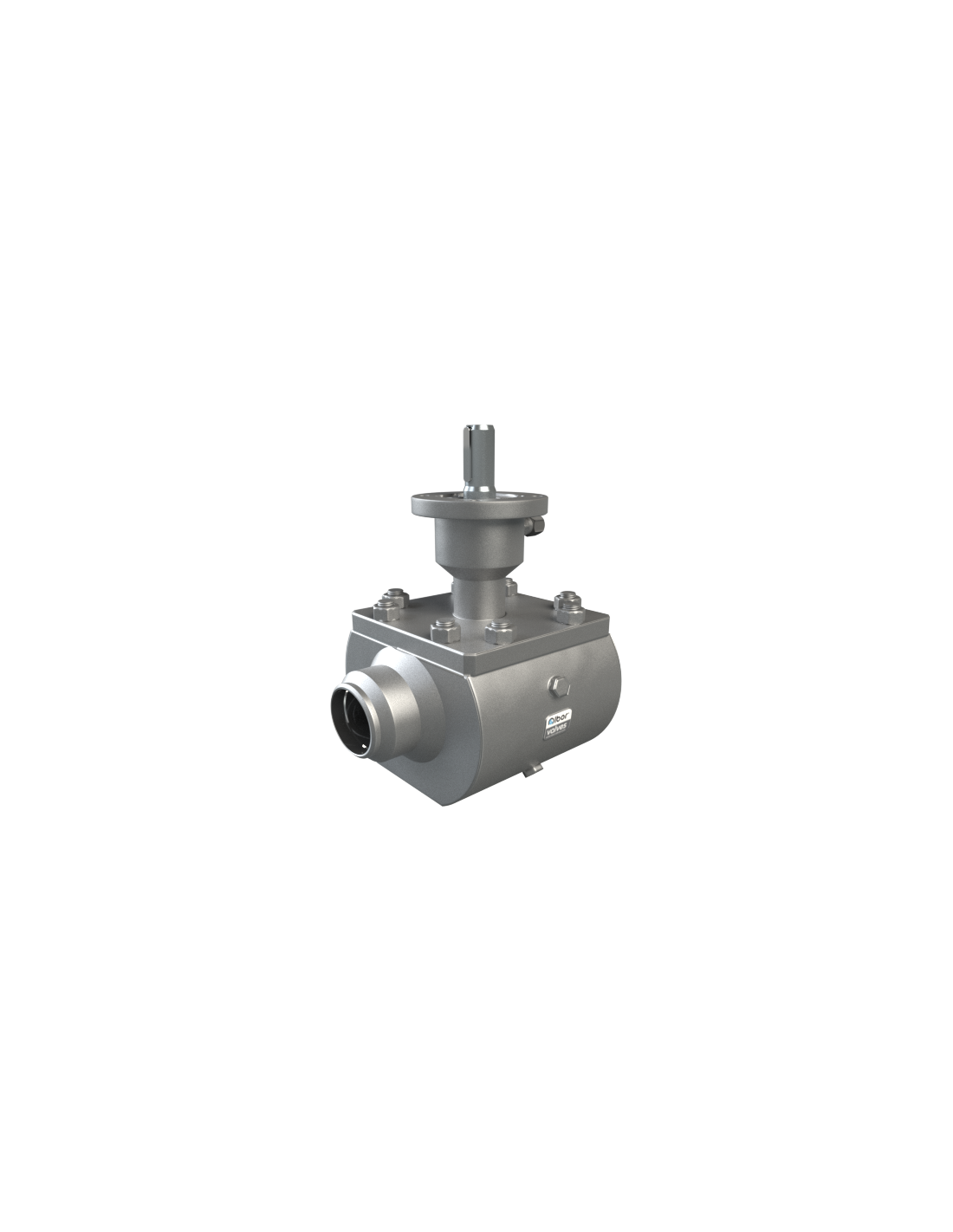

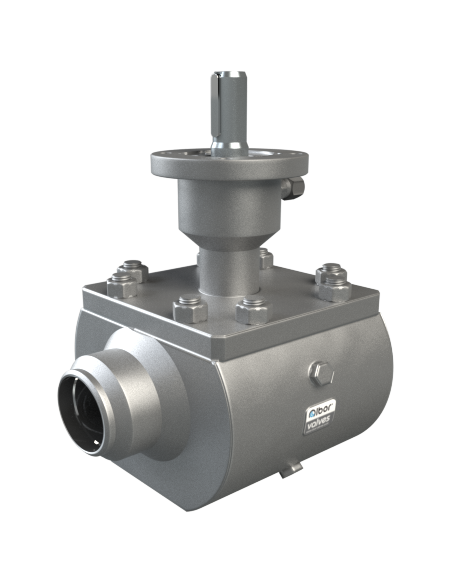

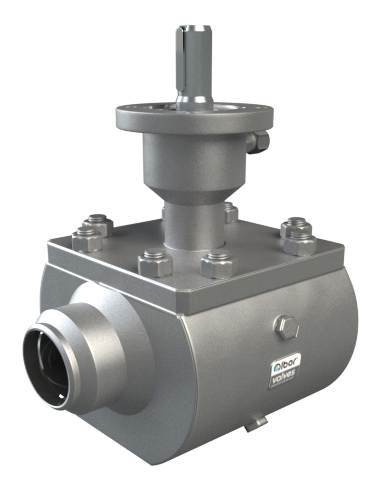

The Ball Valve - 37005 by Ibor Valves is a high-performance valve designed for various industrial applications. It features a sophisticated seat design with options for a double piston effect both downstream and upstream (DIB I) or a double piston effect downstream with a single piston effect upstream (DIB II). The valve is equipped with a stem sealing injector and a locking device for enhanced security and reliability. Additional features include a nipple and needle, overlay on the seat area or all wetted parts, and an optional heating jacket for temperature control. The valve offers versatile connection options, including flanged ends compliant with ASME B16.5, GOST 12815-80, and EN 1092.1 standards, as well as butt weld ends per ASME B16.25. Integral nipples are also available for specific requirements.

Description

Seat design

  • Double piston effect downstream & upstream – DIB I
  • Double piston effect downstream & single piston effect upstream – DIB II

Stem

  • Stem sealing injector
  • Locking device

Others

  • Nipple & Needle
  • Overlay on seat area or on all wetted parts
  • Heating jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Butt Weld End: ASME B16.25

**integral nipples and available

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 14313

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 2.1, 3.1, (3.2 upon request)
