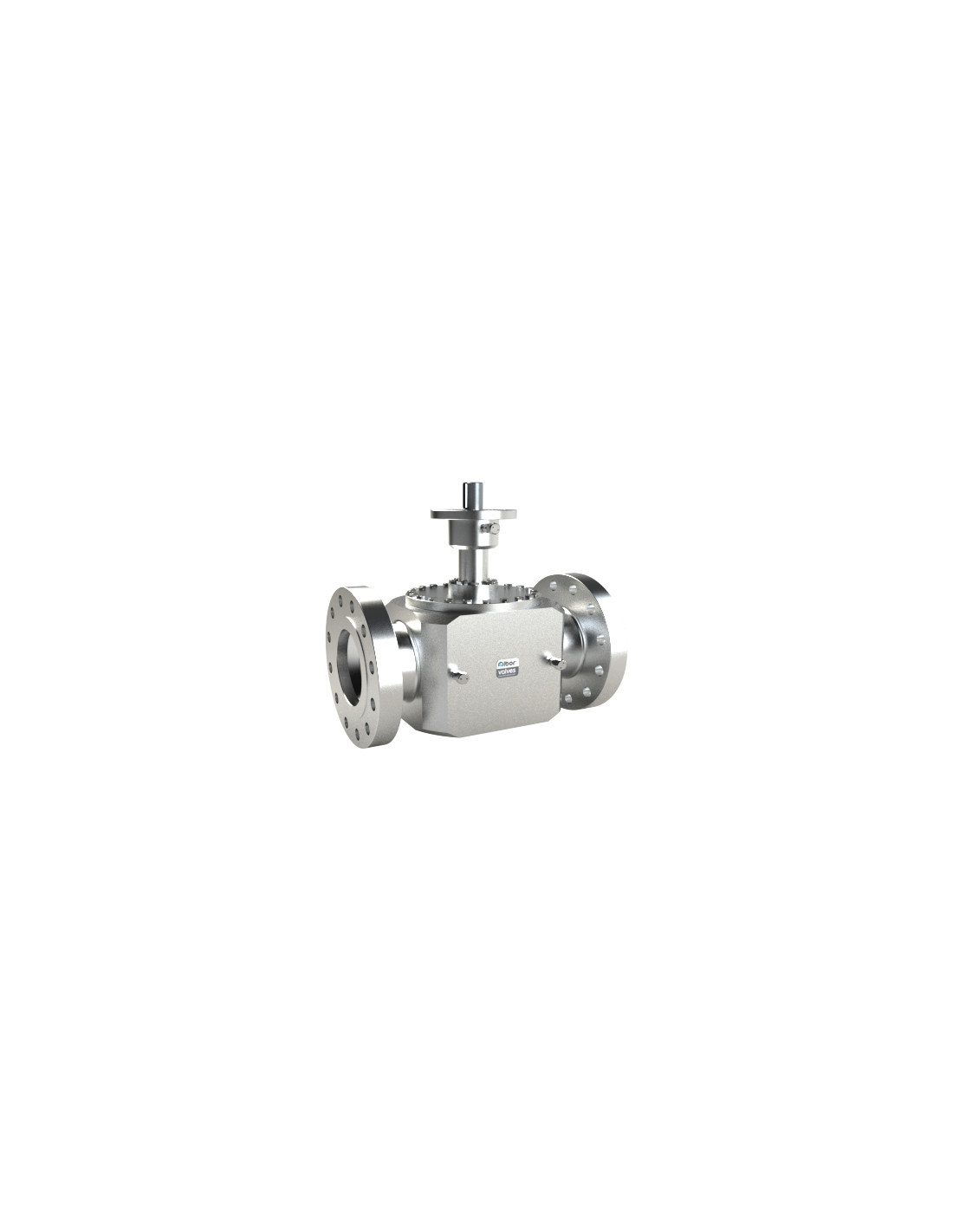

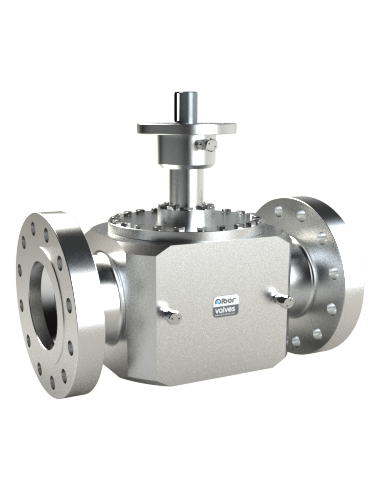

The Ball Valve - 37002 from Ibor Valves is designed with advanced seat and stem features to ensure reliable performance and safety. It offers a double piston effect for both downstream and upstream (DIB I) or a combination of double piston effect downstream and single piston effect upstream (DIB II) for enhanced sealing capabilities. The valve includes a seat sealing injector for added security. The stem is equipped with a sealing injector and can be extended with a stem or bonnet extension, designed to minimize fugitive emissions and includes a locking device for safety. The valve supports various connection types, including Flanged End (ASME B16.5 / GOST 12815-80 / EN 1092.1), Socket Weld End (ASME B16.11), Butt Weld End (ASME B16.25), and Threaded Ends (NPT: ASME B1.20.1, BSPP or BSPT: BS21), with integral nipples available for certain configurations.

Description

Seat design

  • Double piston effect downstream & upstream-DIB I
  • Double piston effect downstream & single piston effect upstream-DIB II
  • Seat sealing injector

Stem

  • Stem sealing injector
  • Stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 14313

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / BS 6364

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
