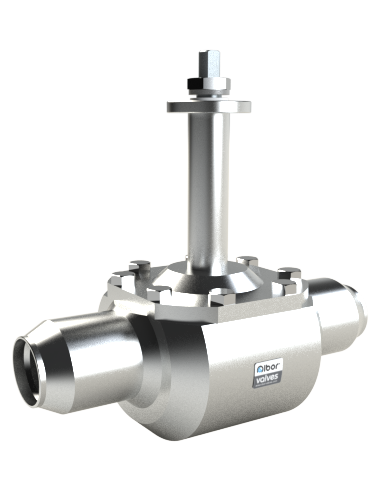

The Ball Valve - 36002 from Ibor Valves is designed with a self-relieving seat for cavity relief, ensuring efficient operation. It features a stem or bonnet extension, is designed to minimize fugitive emissions, and includes a locking device for enhanced security. The valve also comes with a drain plug for added functionality. It offers various connection options, including Flanged End (ASME B16.5 / GOST 12815-80 / EN 1092.1), Socket Weld End (ASME B16.11), Butt Weld End (ASME B16.25), Threaded NPT End (ASME B1.20.1), and Threaded BSPP or BSPT (BS21), providing versatility for different piping systems. Integral nipples are available for certain connection types.

Description

Seat design

  • Self-relieving seat (cavity relief)

Stem

  • Stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Other

  • Drain plug

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 17292

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / BS 6755 Part 1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
