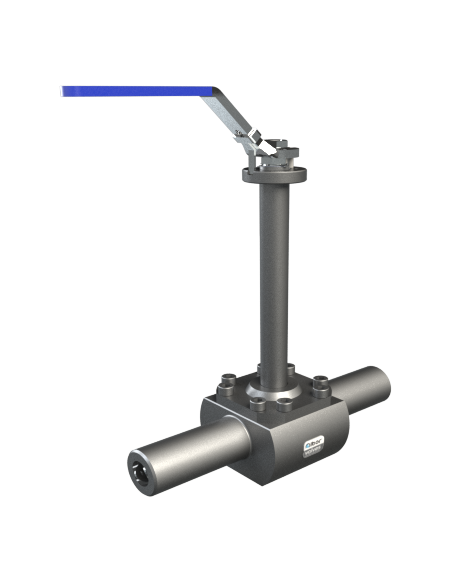

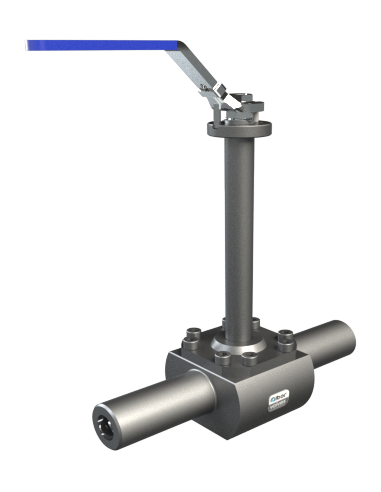

The Ball Valve - 36001 by Ibor Valves is a versatile and robust valve designed for various industrial applications. It features a self-relieving seat with cavity relief, allowing for bidirectional flow and includes a secondary soft seat for enhanced sealing. The stem is equipped with a thermic extension and can be extended with a bonnet, designed to minimize fugitive emissions and includes a locking device for secure operation. Additional features include a drain plug, overlay on the seat area or all wetted parts, and an optional heating jacket for temperature control. The valve offers multiple connection options, including flanged ends (ASME B16.5, GOST 12815-80, EN 1092.1), socket weld ends (ASME B16.11), butt weld ends (ASME B16.25), and threaded ends (NPT ASME B1.20.1, BSPP or BSPT BS21), with integral nipples available for certain configurations.

Description

Seat design

  • Self-relieving seat (cavity relief)
  • Bidirectional
  • Secondary Soft Seat

Stem

  • Thermic extension, stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Others

  • Drain plug
  • Overlay on seat area or on all wetted parts
  • Heating jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 17292

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 3.1, (3.2 upon request)
