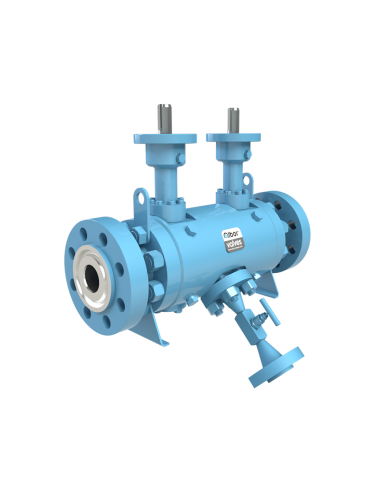

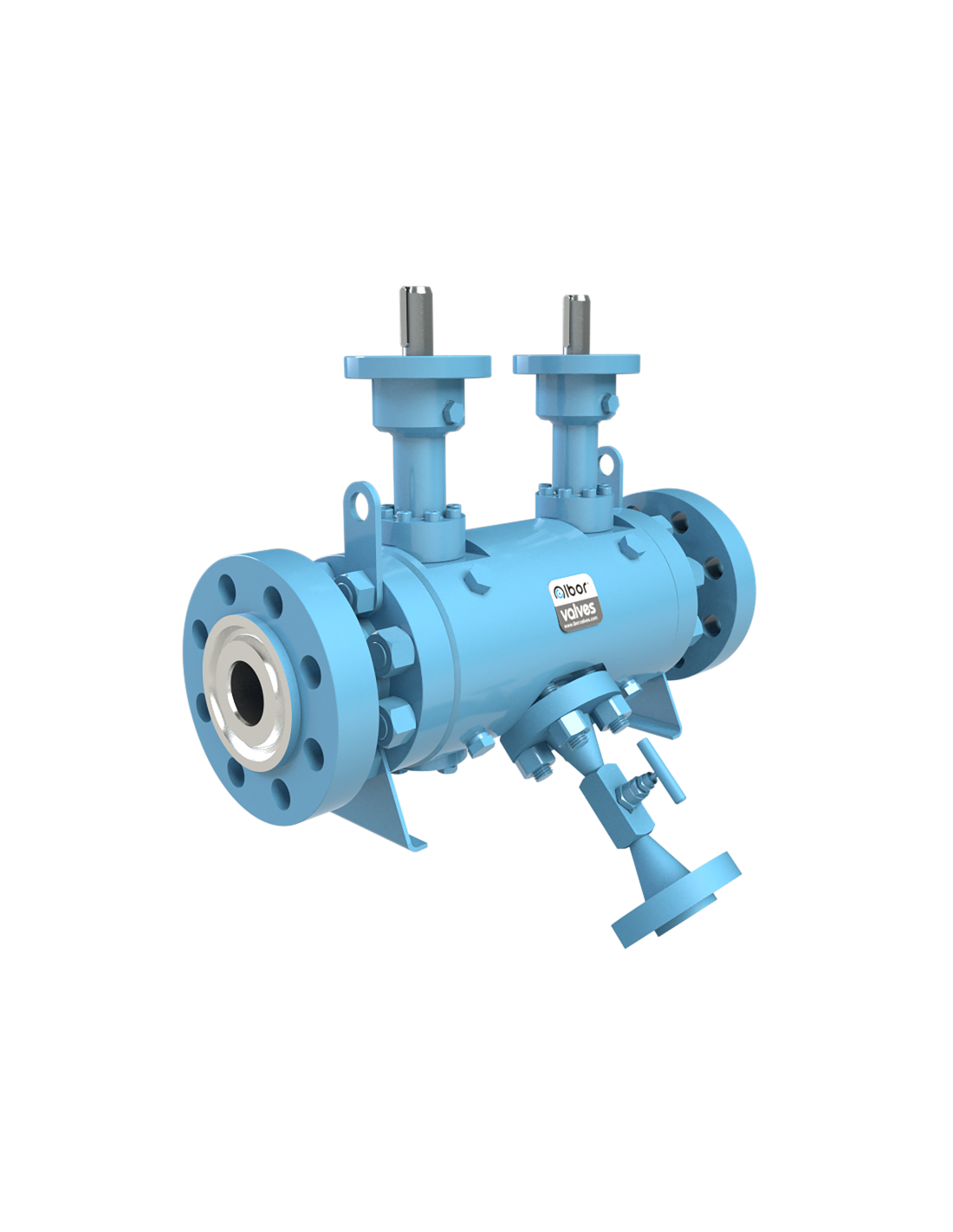

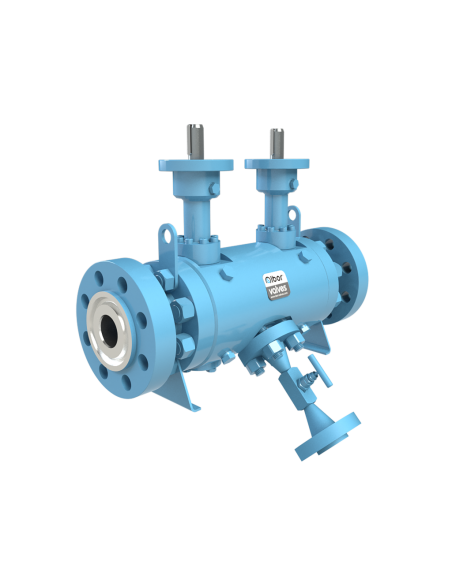

The Ball Valve - 29001 by Ibor Valves is a versatile and robust valve designed for various industrial applications. It features a sophisticated seat design with options for a double piston effect both downstream and upstream (DIB I) or a double piston effect downstream with a single piston effect upstream (DIB II), along with a secondary soft seat for enhanced sealing capabilities. The stem is equipped with a sealing injector, thermic extension, and is designed to minimize fugitive emissions, also featuring a locking device for added security. Additional features include an overlay on the seat area or all wetted parts and an optional heating jacket. The valve offers multiple connection types, including flanged ends (ASME B16.5, GOST 12815-80, EN 1092.1), socket weld ends (ASME B16.11), butt weld ends (ASME B16.25), and threaded ends (NPT ASME B1.20.1, BSPP or BSPT BS21), with integral nipples available for certain configurations.

Description

Seat design

  • Double piston effect downstream & upstream-DIB I
  • Double piston effect downstream & single piston effect upstream-DIB II
  • Secondary Soft Seat

Stem

  • Stem sealing injector
  • Thermic extension, stem or bonnet extension
  • Design according to fugitive emissions
  • Locking device

Others

  • Overlay on seat area or on all wetted parts
  • Heating jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 14313

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: ATEX 94/9/EC

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 2.1, 3.1, (3.2 upon request)
