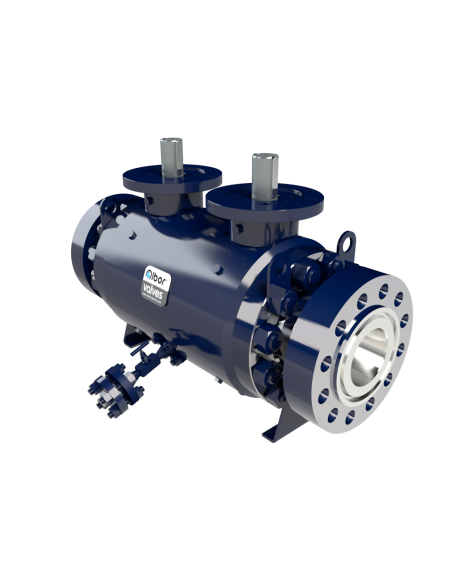

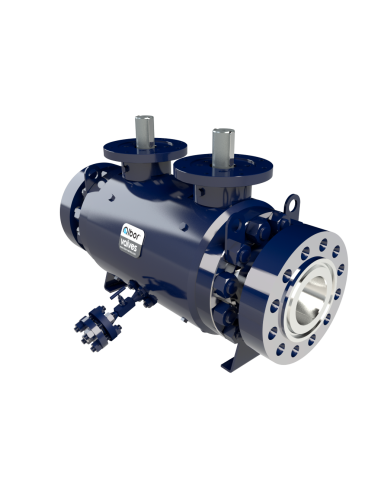

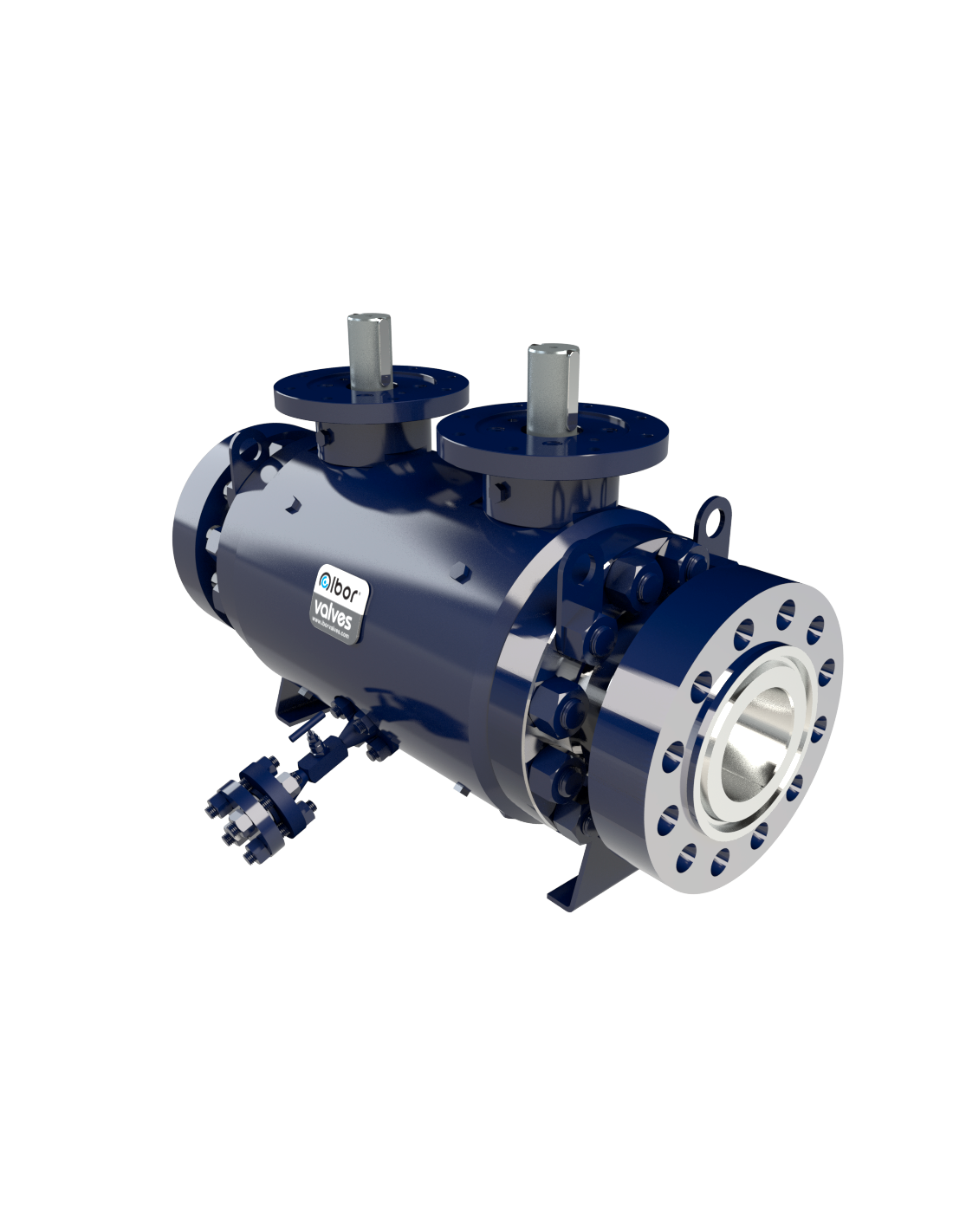

The Ball Valve - 29000 by Ibor Valves is a versatile and robust valve designed for various industrial applications. It features advanced seat designs, including a double piston effect both downstream and upstream (DIB I) and a combination of double piston effect downstream with a single piston effect upstream (DIB II). The valve is equipped with a seat sealing injector for enhanced sealing capabilities. The stem of the valve includes a sealing injector, options for stem or bonnet extension, and a locking device for secure operation. Additional features include an overlay on the seat area or all wetted parts, and the option for a heating or cooling jacket to suit specific process requirements. The valve offers multiple connection options to accommodate different piping standards, including flanged ends (ASME B16.5, GOST 12815-80, EN 1092.1), socket weld ends (ASME B16.11), butt weld ends (ASME B16.25), and threaded ends (NPT per ASME B1.20.1 and BSPP/BSPT per BS21). Integral nipples are also available for certain configurations.

Description

Seat design

  • Double piston effect downstream & upstream-DIB I
  • Double piston effect downstream & single piston effect upstream-DIB II
  • Seat sealing injector

Stem

  • Stem sealing injector
  • Stem or bonnet extension
  • Locking device

Others

  • Overlay on seat area or on all wetted parts
  • Heating or cooling jacket

Connections

Flanged End: ASME B16.5 / GOST 12815-80 / EN 1092.1

Socket Weld End: ASME B16.11

**integral nipples and available

Butt Weld End: ASME B16.25

**integral nipples and available

Threaded NPT End: ASME B1.20.1

Threaded BSPP OR BSPT: BS21

Others

Design & Certification

Normative: ANSI / DIN

Design: API 6D / ISO 14313

Face to Face: ASME B16.10 / EN 558.1 Serie 27

Top Flange: ISO 5211

Press-Temp Ratings & Thickness: ASME B16.34

Test: API 6D / API 598 / EN 12266-1

Pressure Equipment Directive: PED 2014/68/EU Mod. H1

Equipment Directive: ATEX 94/9/EC

Fire Safe: API 6FA / API 607 / ISO 10497-2

Fugitive Emissions: Class”A” acc.to ISO 15484-2

Safety integrity level: Sil 2 acc.to IEC 61508

Material: NACE MR0175 Lastest Edition

Certification:EN 10204 type 2.1, 3.1, (3.2 upon request)
