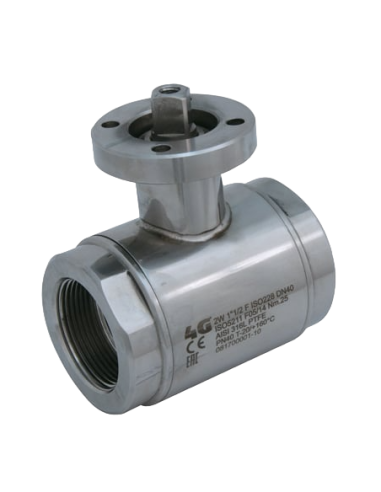

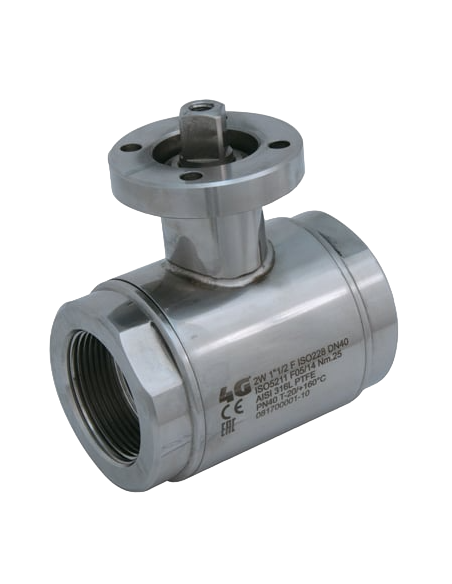

The Ball Valve STANDARD SEALS  1030 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an ISO 5211 – DIN 3337 flange for actuator drive. The valve is constructed from high-quality Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, ensuring durability and corrosion resistance. Available in sizes ranging from 1/4” to 4”, it offers full flow capabilities. The valve operates within a temperature range of -20°C to +170°C and includes a polished outer finish. It comes with screws for mounting an actuator. Optional features include an antistatic device compliant with ATEX standards and various seal materials, such as PTFE with glass, carbographite, inox, and UHMW polyethylene, catering to different temperature requirements.


Type : 103004
Standard (Options)
  • DIN
  • ANSI
Connection (Options)
  • NPT
  • Revolving Threaded Flanges
  • Butt Weld
  • Clamp
  • Garolla
  • KF
  • ISO 228-1
  • DIN 11851
  • SMS
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 25
  • PN 40
  • PN 64
  • PN 100
Seat (Options)
  • PTFE Virgin (Modified)

Description

TWO-way ball valve

Drive: ISO 5211 – DIN 3337 flange for actuator

Flow: Full

Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)

Measure: from 1/4” to 4”

Modified Virgin P.T.F.E.

Operating temperature: -20°C+170°C

Outer finish: Polished

Screws for mounting actuator included



On request:

Antistatic device ATEX:

II 2G Ex h IIC T4 Gb

II 2D Ex h IIIC T135°C Db

M.O.C.A. CE 1935/2004

• Seals made of:

PTFE with glass -20°C+170°C

PTFE with carbographite -20°C+180°C

PTFE with inox -20°C+200°C

UHMW High-molecular weight polyethylene -20°C+80°C
