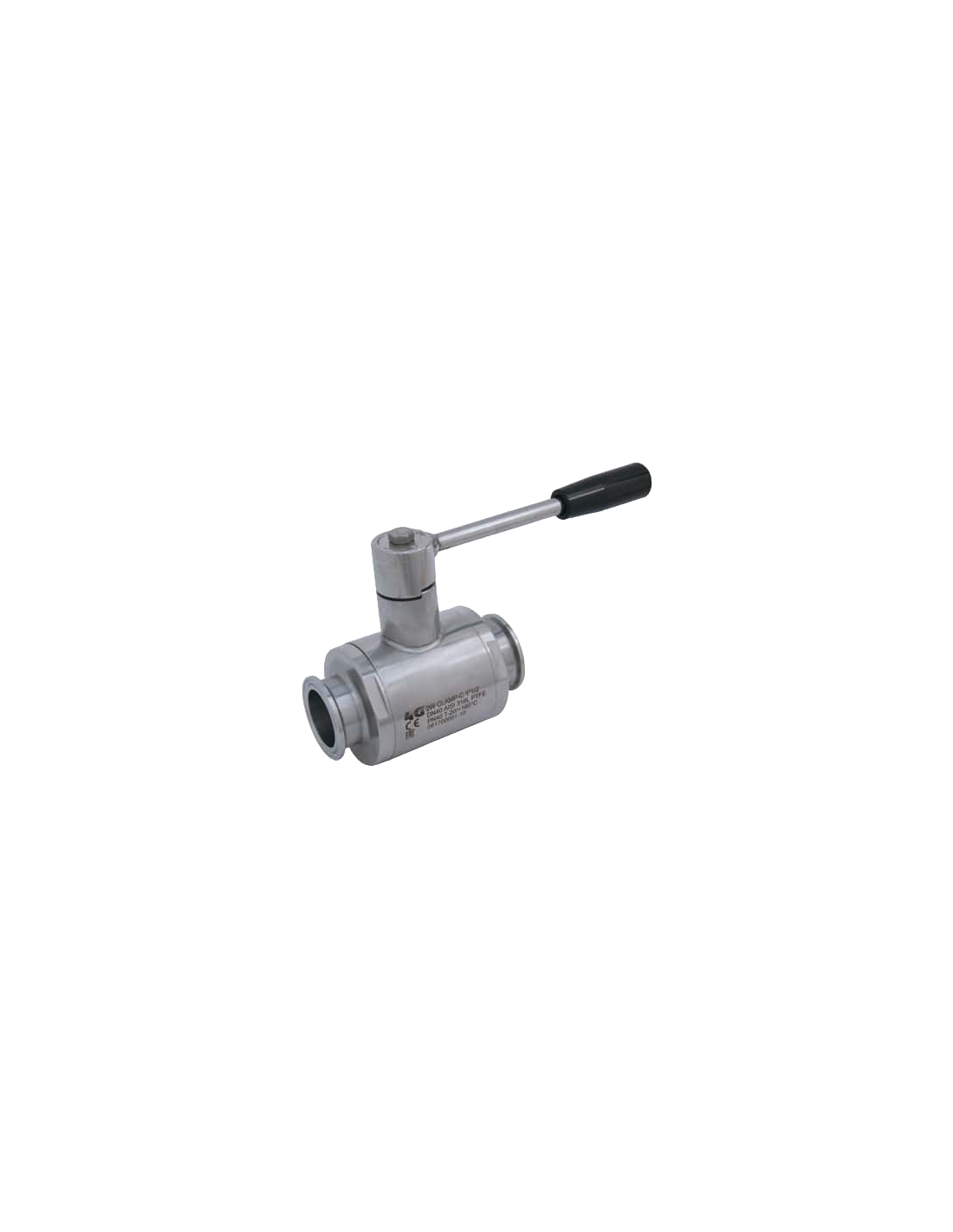

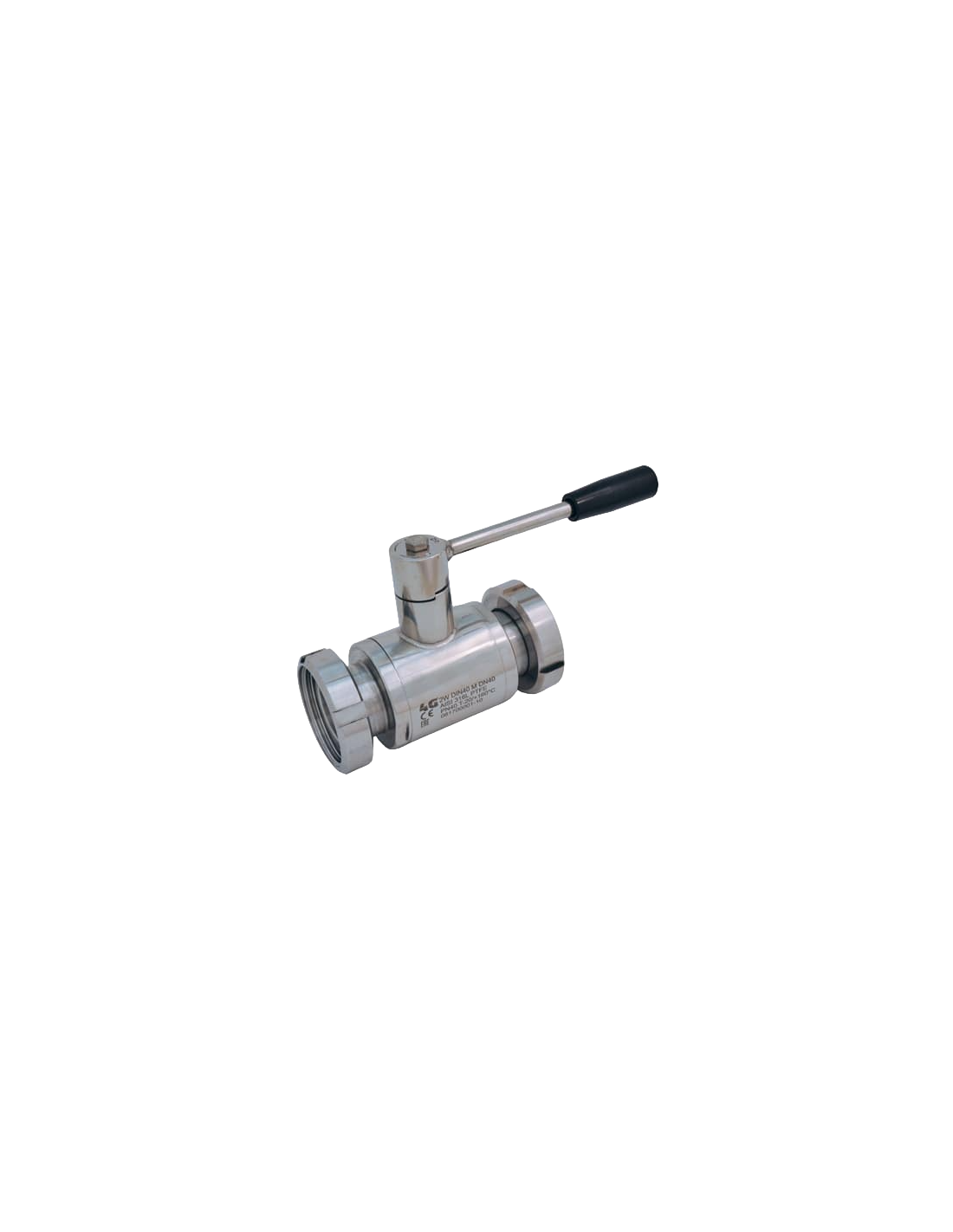

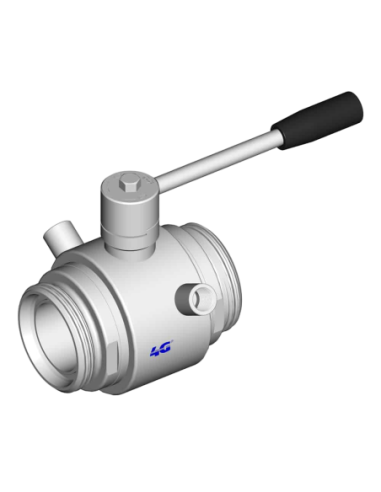

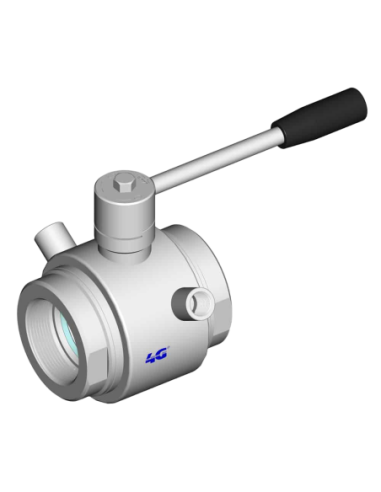

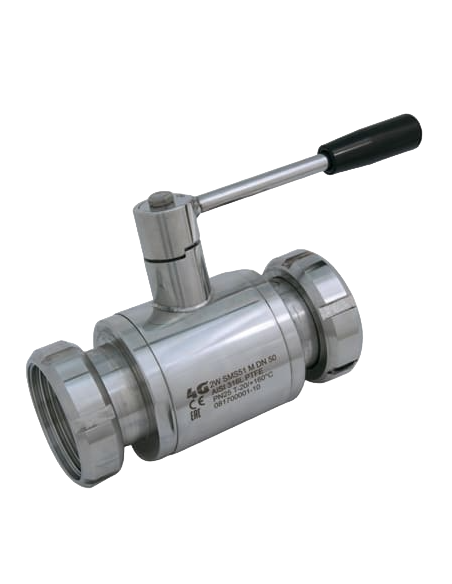

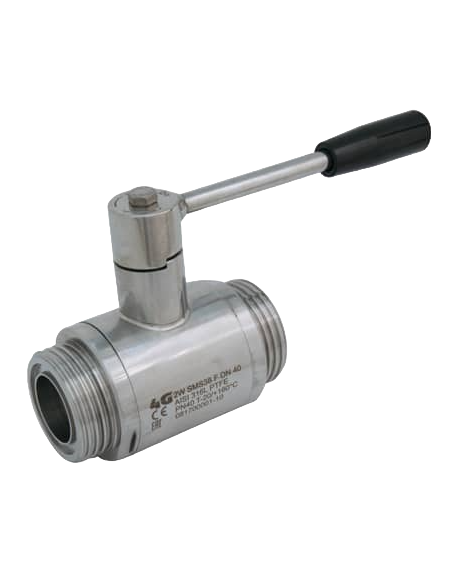

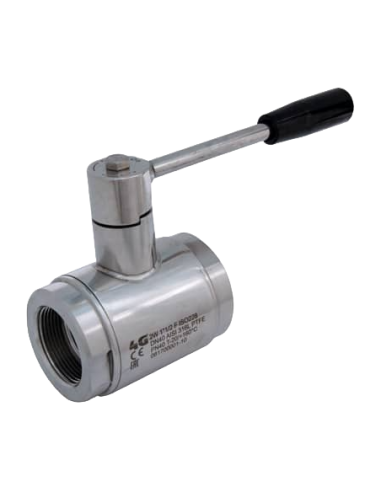

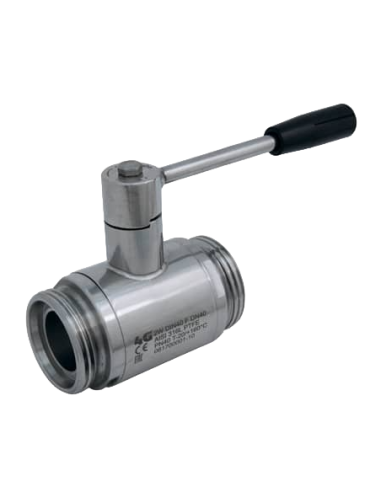

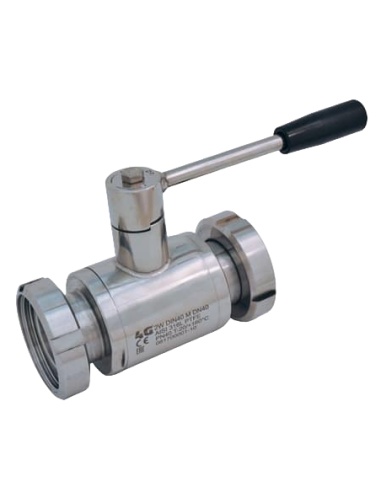

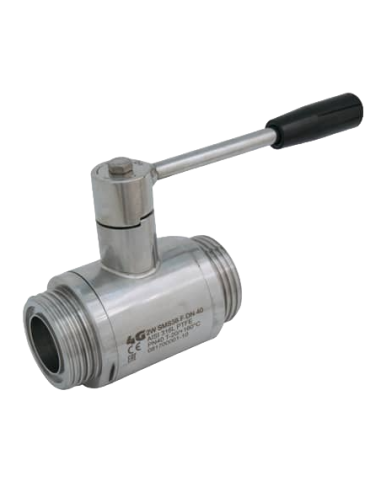

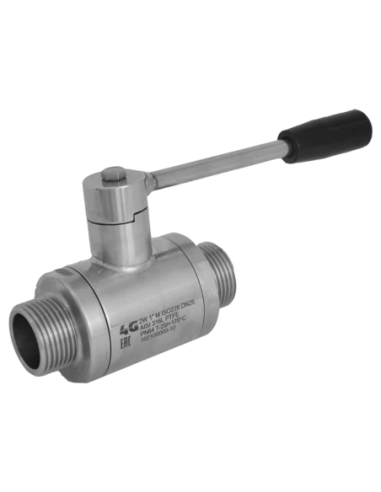

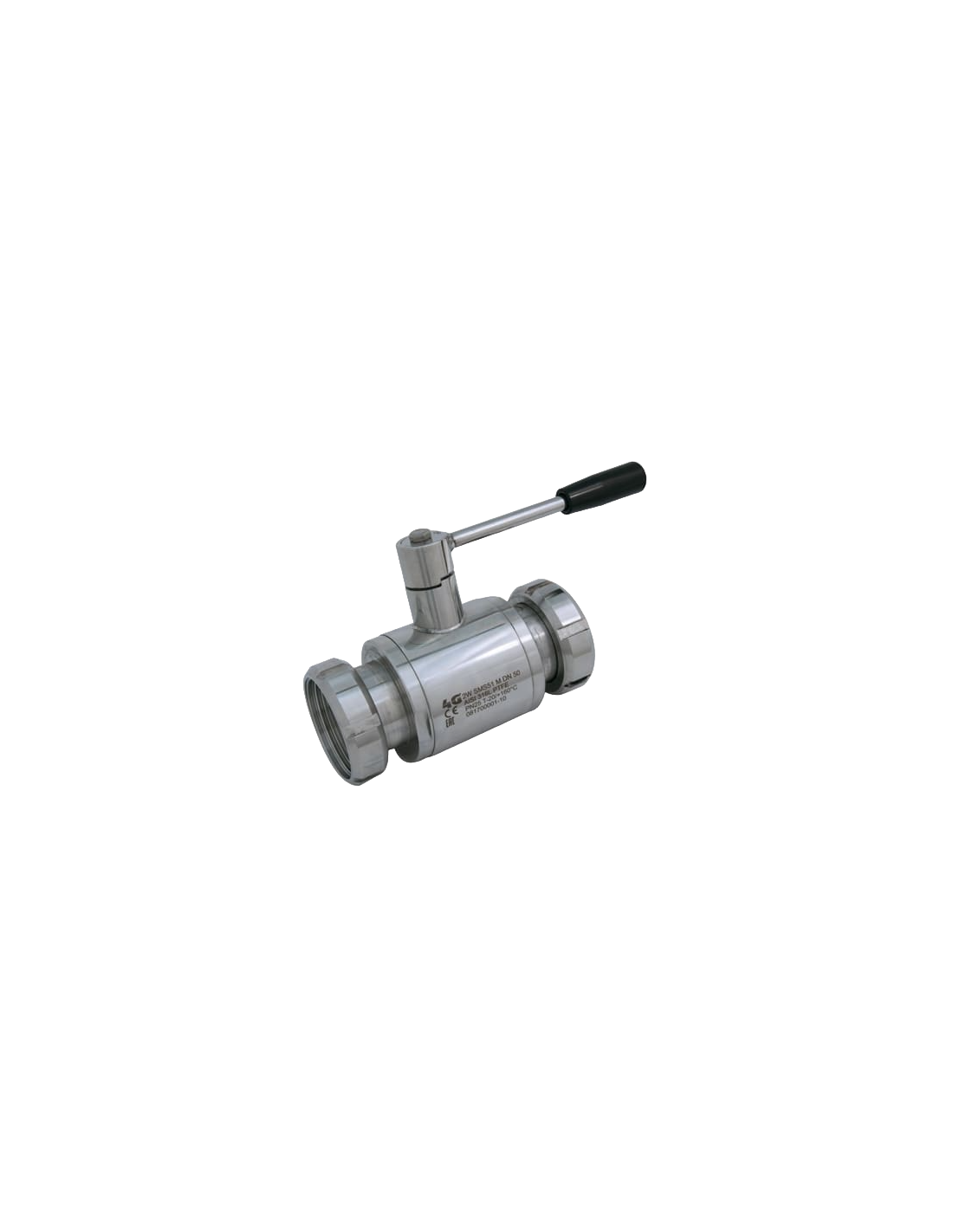

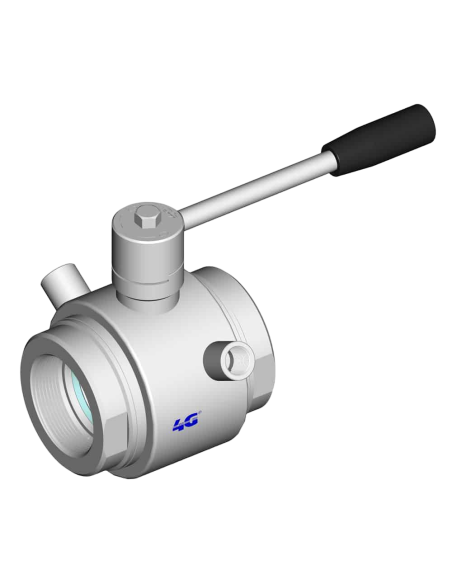

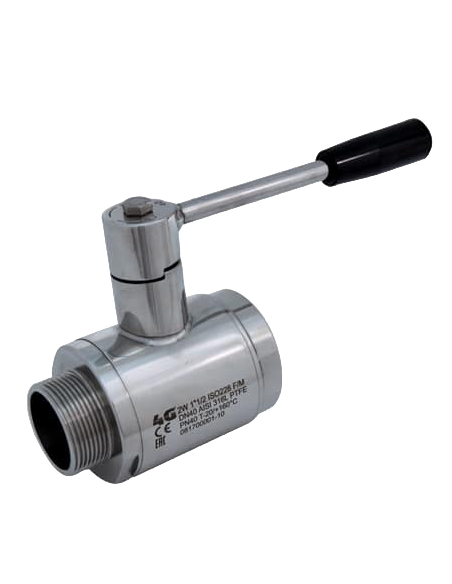

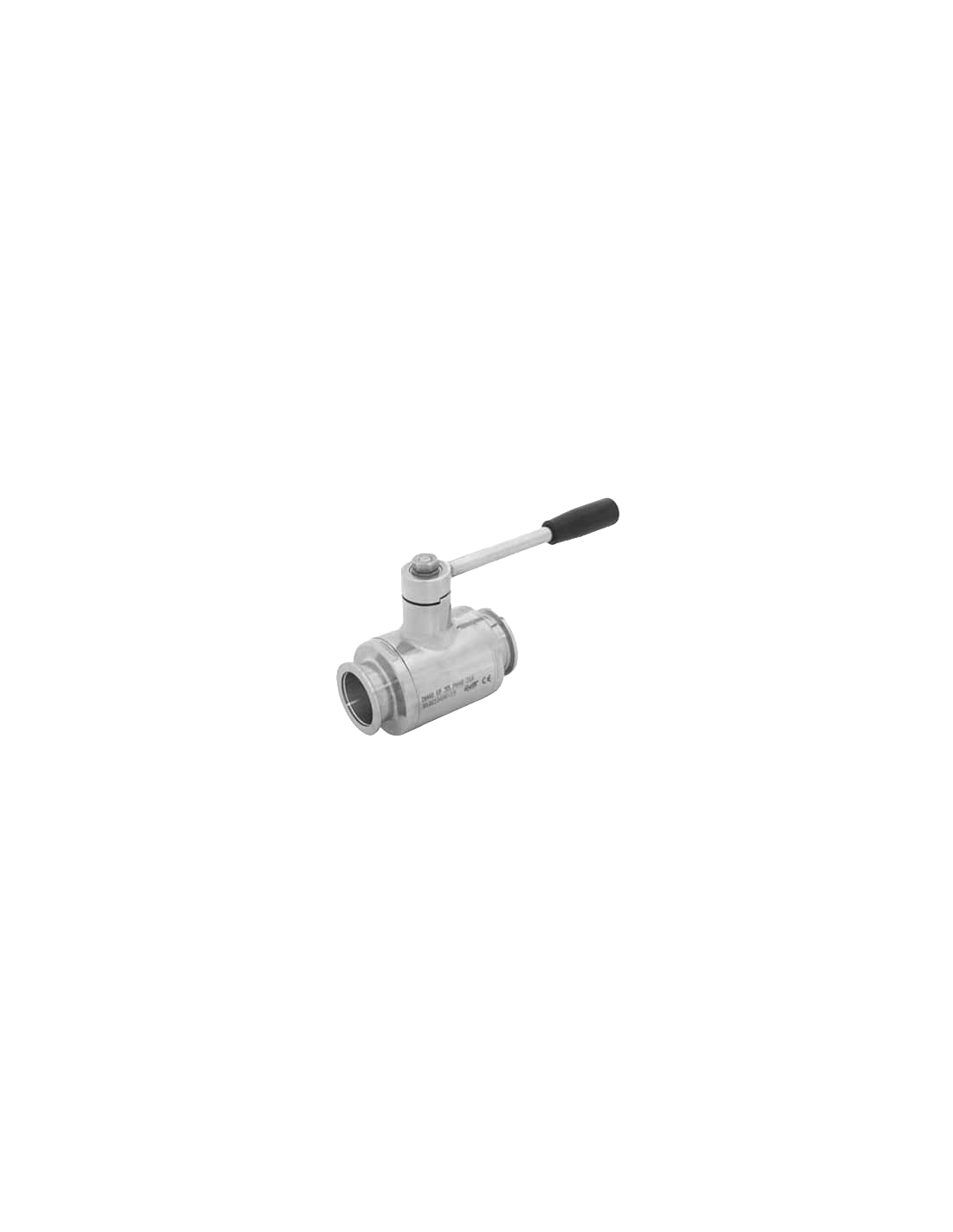

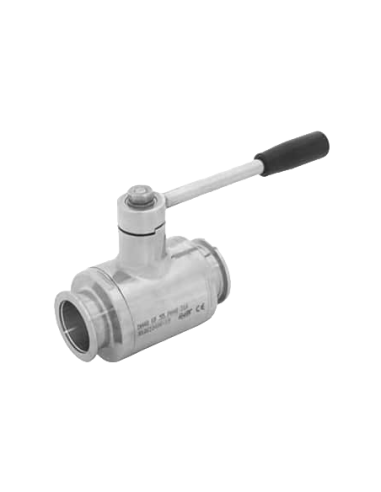

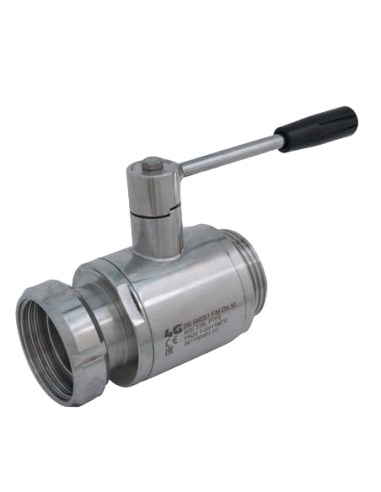

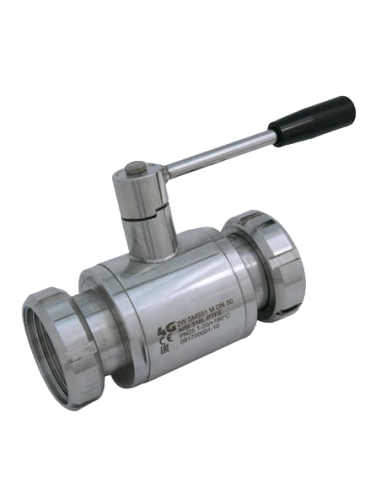

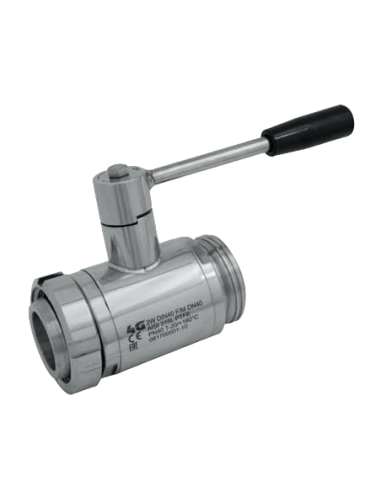

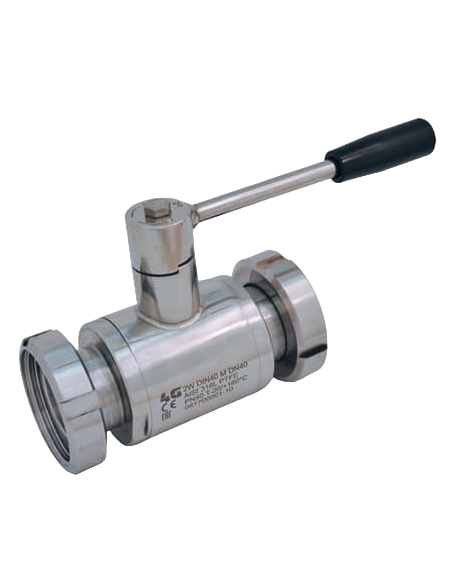

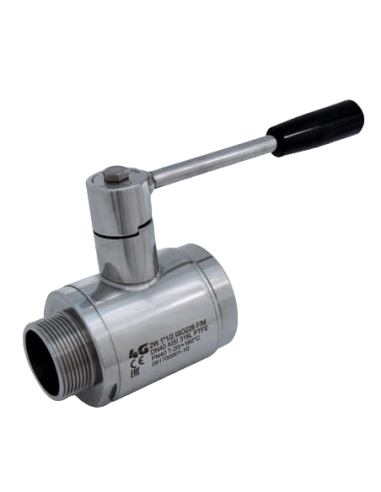

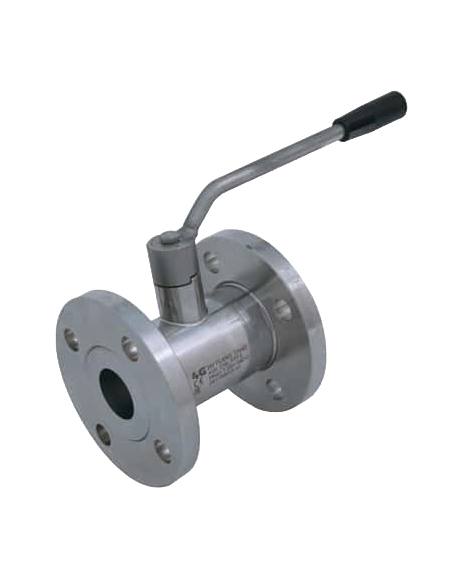

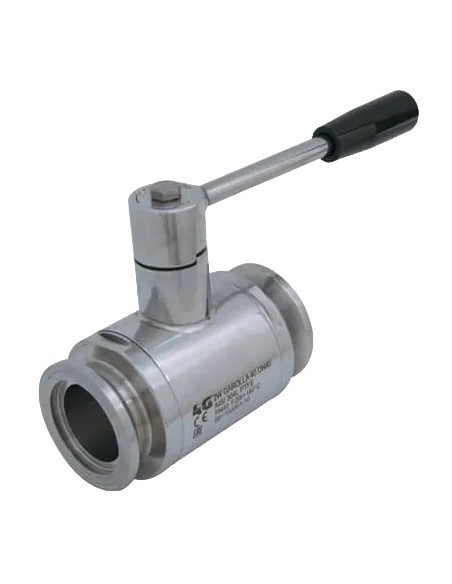

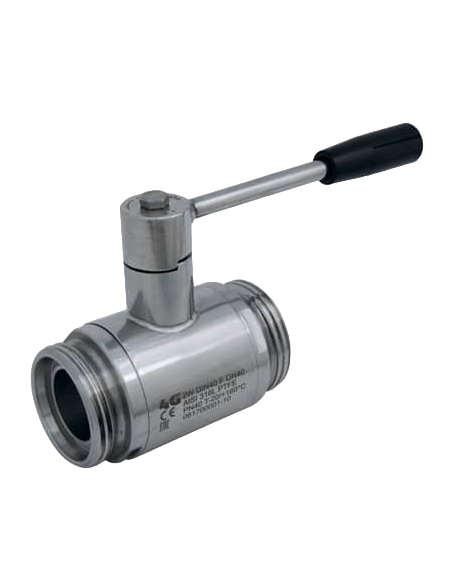

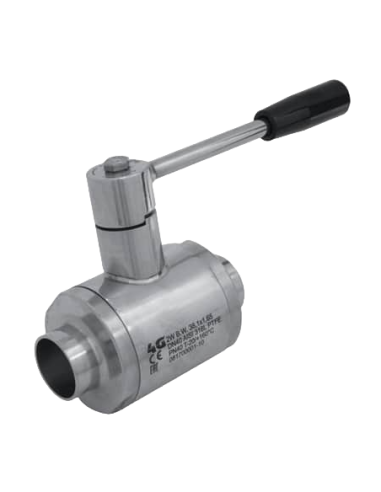

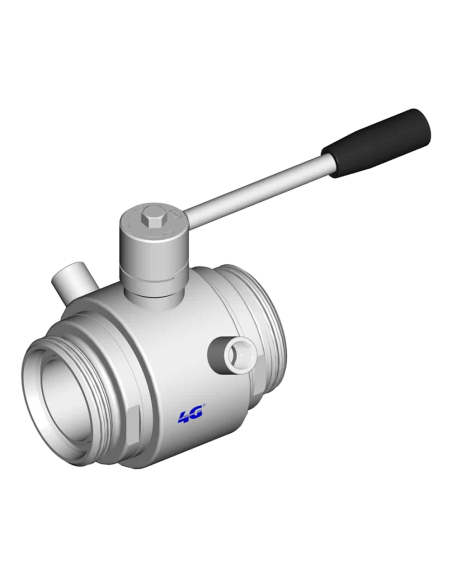

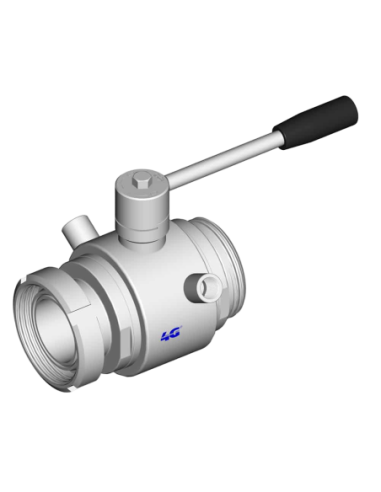

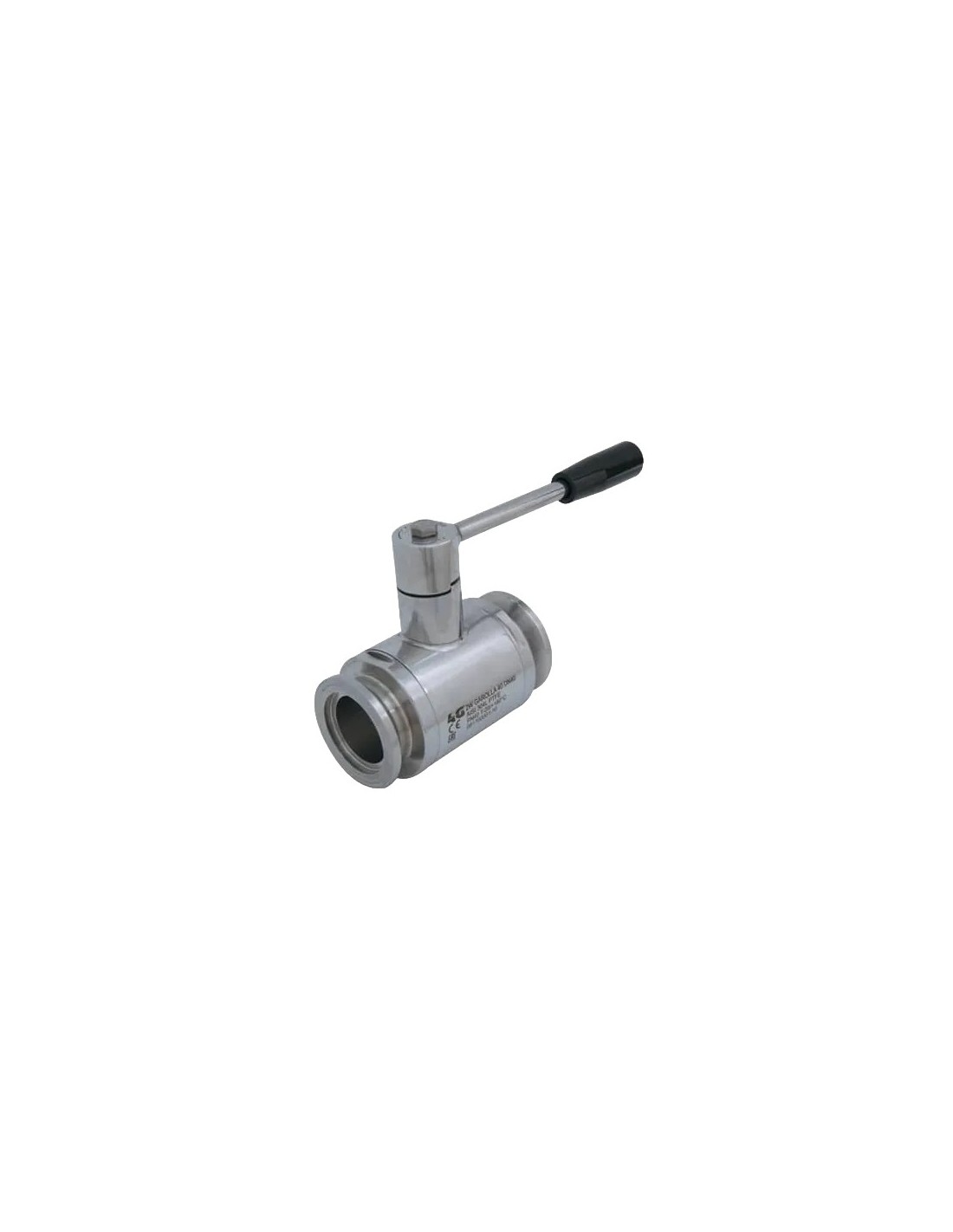

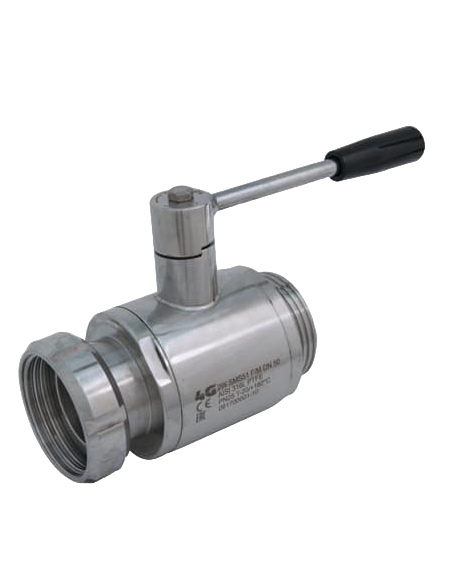

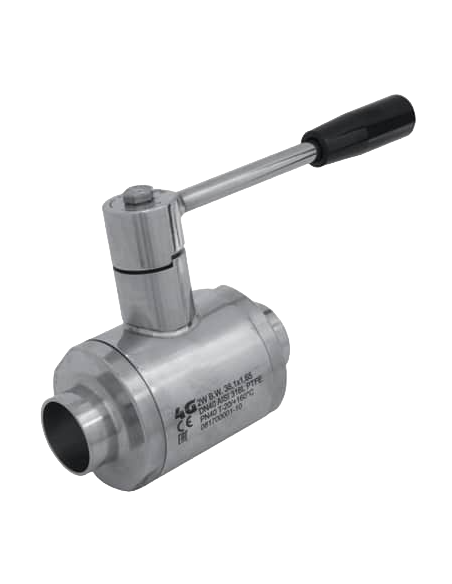

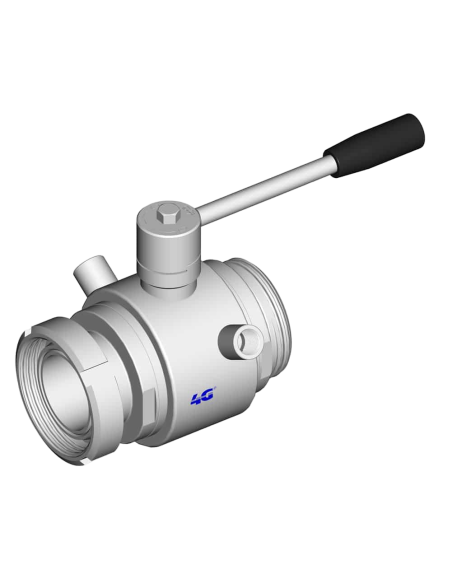

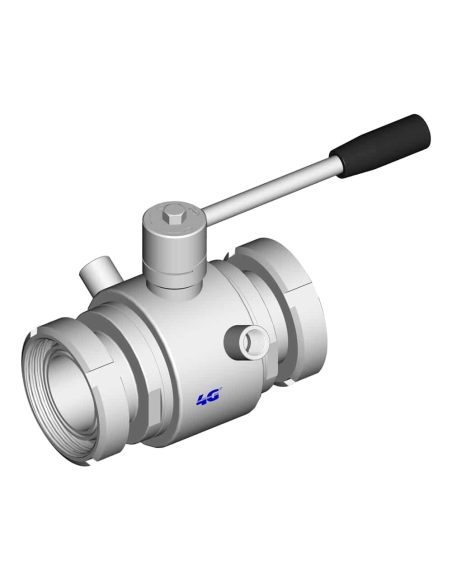

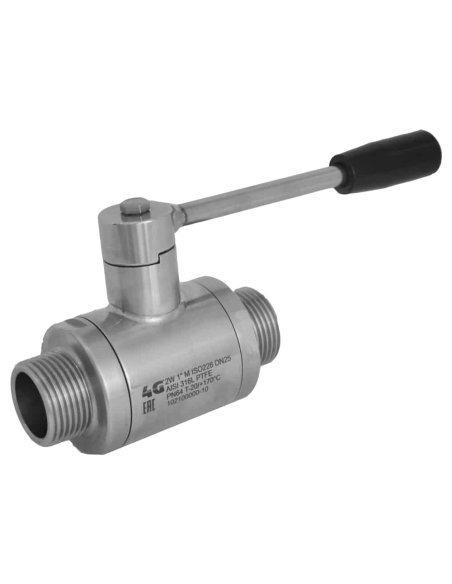

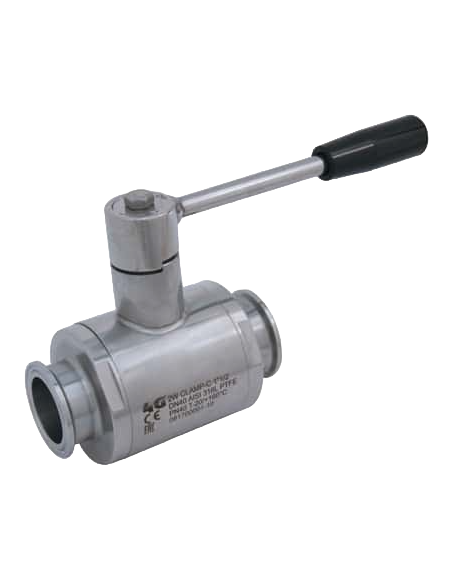

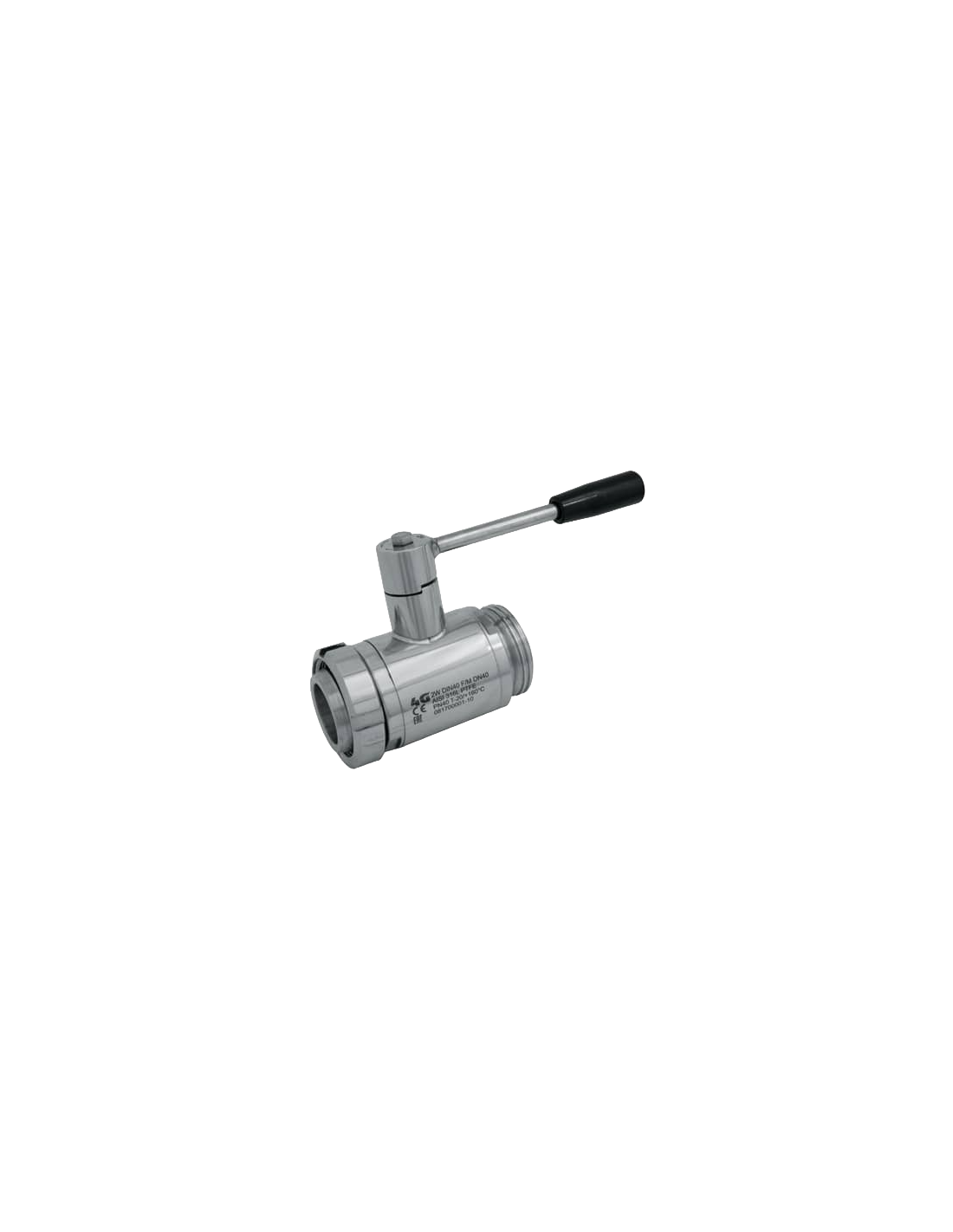

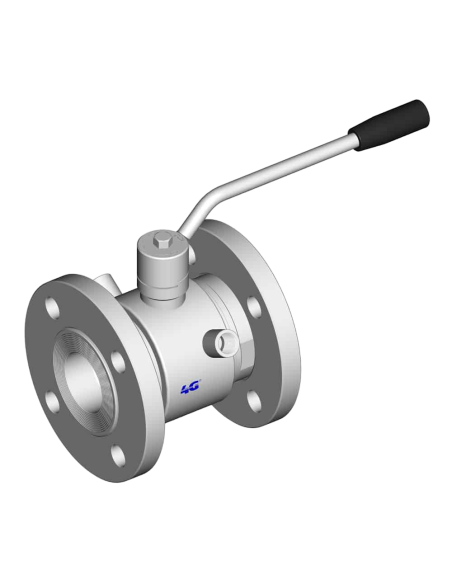

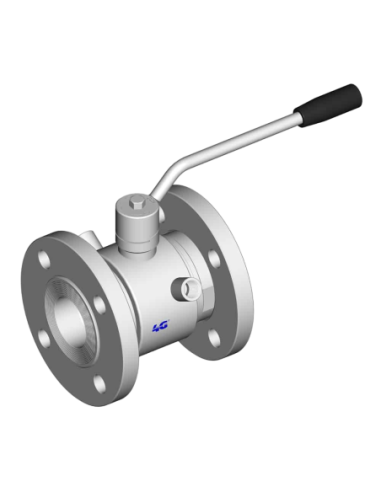

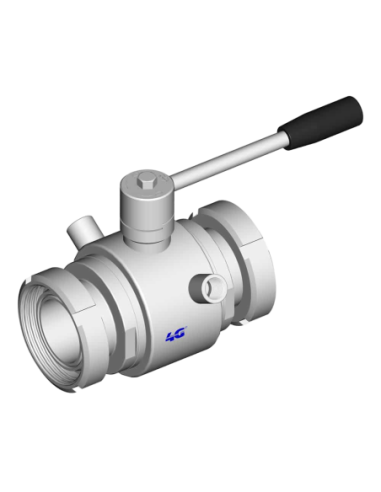

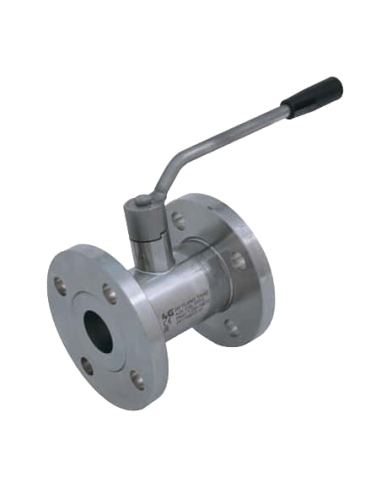

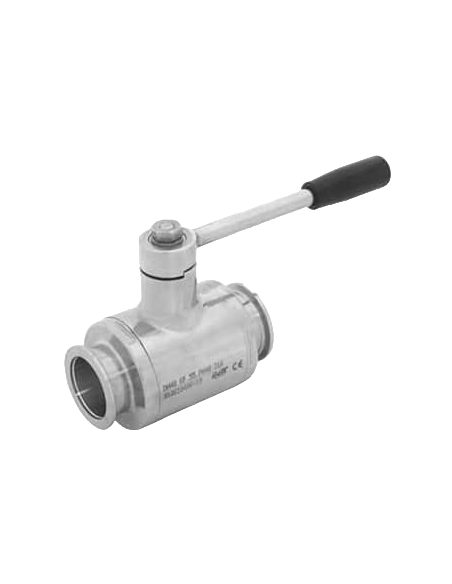

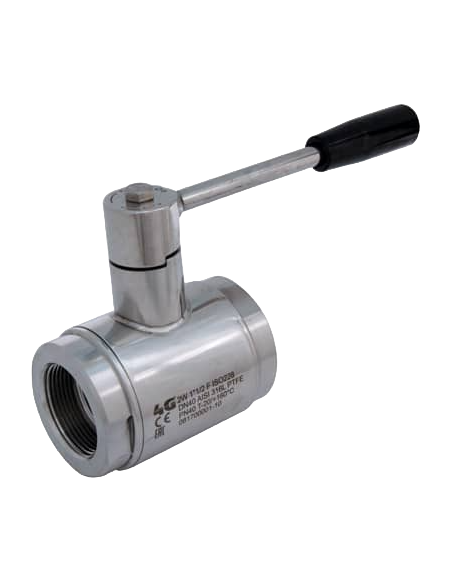

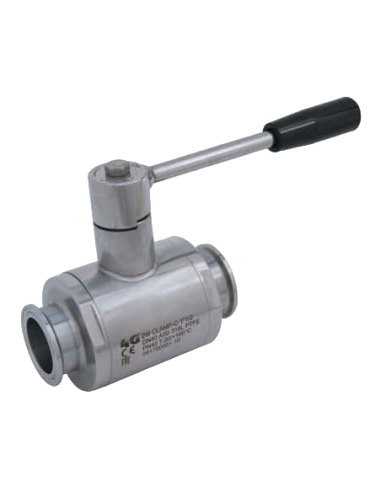

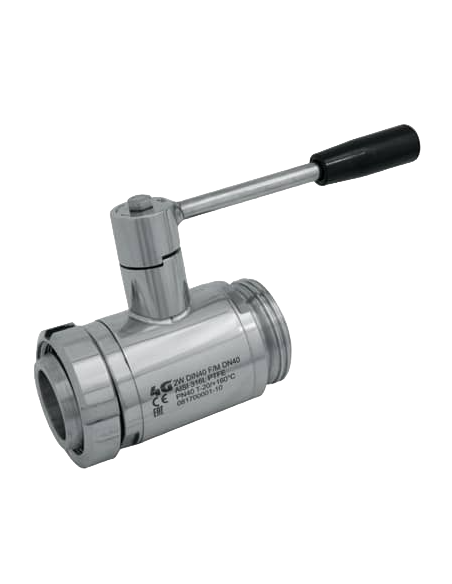

The Ball Valve 1001 by 4G Ghidini is a two-way ball valve designed for efficient flow control. It features an inox lever for operation. The valve supports full flow and is constructed from durable Aisi 304L (1.4307) and Aisi 316L (1.4404) stainless steel, with sizes ranging from 1/4” to 4”. It is equipped with modified virgin P.T.F.E. seals and can operate within a temperature range of -20°C to +170°C. The valve has a polished outer finish for enhanced durability and aesthetics. Optional features include an antistatic device compliant with ATEX standards and various seal materials for different temperature and chemical resistance requirements.
TWO-way ball valve
Drive: Inox lever
Flow: Full
Material: Aisi 304L (1.4307) – Aisi 316L (1.4404)
Measure: from 1/4” to 4”
Seals: Modified Virgin P.T.F.E.
Operating temperature: -20°C+170°C
Outer finish: Polished
On request:
Antistatic device ATEX:
II 2G Ex h IIC T4 Gb
II 2D Ex h IIIC T135°C Db
M.O.C.A. CE 1935/2004
• Seals made of:
PTFE with glass -20°C+170°C
PTFE with carbographite -20°C+180°C
PTFE with inox -20°C+200°C
UHMW High-molecular weight polyethylene -20°C+80°C
