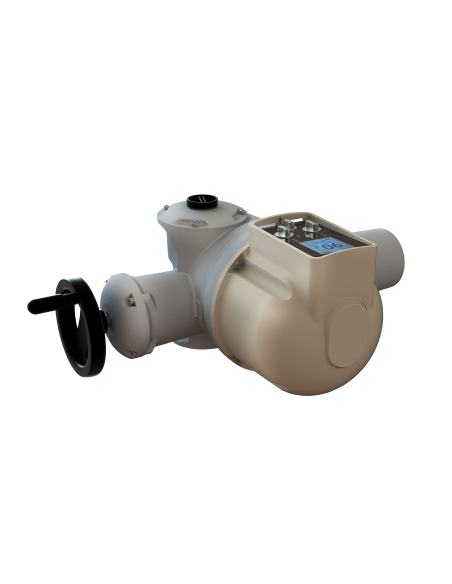

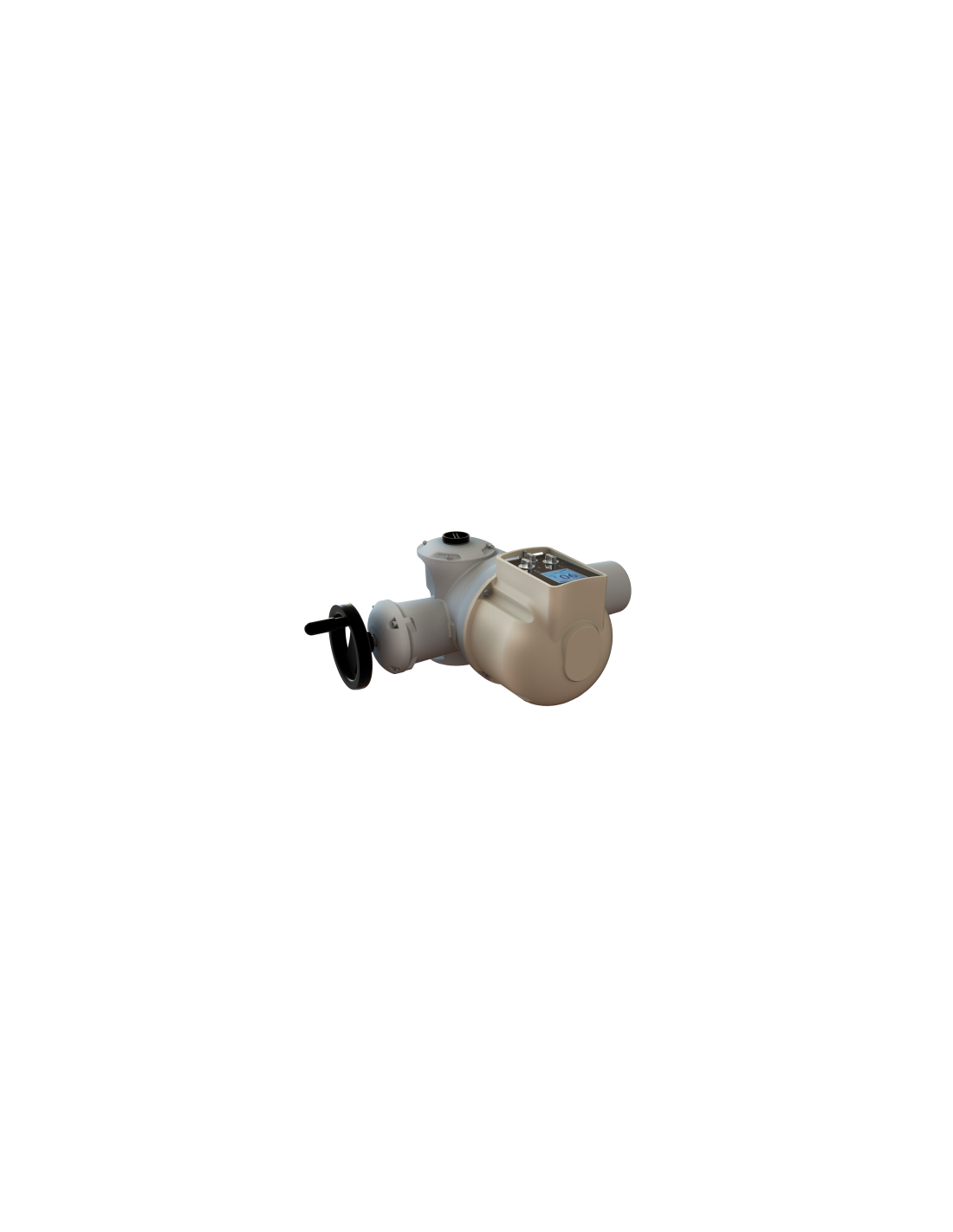

The Electric Actuator - AT Range by Bernard Controls is a versatile and robust solution designed for a wide range of industrial applications. It offers a torque range from 30 to 500 Nm directly, with options up to 32,000 Nm, and speeds from 10 to 180 RPM. The actuator features advanced control options, including electromechanical switches and Smart LOGIC (v2), making it suitable for various operational needs such as On-Off, Inching/Positioning, and Modulating (Class III). Built for durability, it boasts an IP68 rating and can operate in temperatures from -20°C to +70°C, with a low-temperature option available. The innovative design includes a reliable camblock system and modular position sensor, ensuring adaptability and compactness. Installation and maintenance are simplified with features like a large LCD display, declutch-free manual override, and Bluetooth communication for easy setup and troubleshooting via the BC App. The actuator is compatible with common fieldbus protocols, providing a user-friendly and cost-effective solution for multi-turn actuation.

Datasheet and documents

Description

PRODUCT SPECIFICATIONS

TORQUE RANGE:

  • 30 to 500 Nm (direct)
  • Up to 32,000 Nm on request

10 TO 180 RPM (DIRECT MOUNT)

TYPE OF CONTROLS:

  • Electromechanical SWITCH
  • Smart LOGIC (v2)

BC DUTY & MODULATING CLASSIFICATION:

  • On-Off: Class A
  • Inching / Positioning : Class B
  • Modulating : Class III

ENVIRONMENT: IP 68 / C4 (C5 OPTION) / T: -20°C ...+70°C (LOW T° OPTION -40°C)

PRODUCT BENEFITS

INNOVATIVE, RELIABLE & OPTIMIZED DESIGN

  • Product architecture & torque range adapted to customers’ requirements: 6 models from 30 to 500 Nm
  • Selection of the essential features to ensure a competitive but performing solution: actuator duty from On-Off to Modulating, heavy duty enclosure protection, IP68, integrated control, wide range of output speeds…
  • New reliable camblock system unaffected by vibrations. Fully new & unique design with internal modularity for compact solution, e.g. modular position sensor enables up to 1700 turns with the same product

PERFORMANCE FOR MULTI-TURN ACTUATION

  • From 30Nm (adjustable to 12Nm) to 500Nm (direct) and more with gearboxes
  • Wide range of speeds to address all types of applications
  • Wide stem acceptance
  • Self-locking at all speeds without any additional component*
  • S4 Motor Service Duty on all models
  • Suitable for modulating applications (BC Class III complying with EN15714-2 Class C)

EASY TO INSTALL

  • Easy commissioning: set up of travel limitation system (new camblock) with a standard screwdriver, only two standard tools required to install and set up the actuator on valve, wiring reduced to the minimum for fast assembly

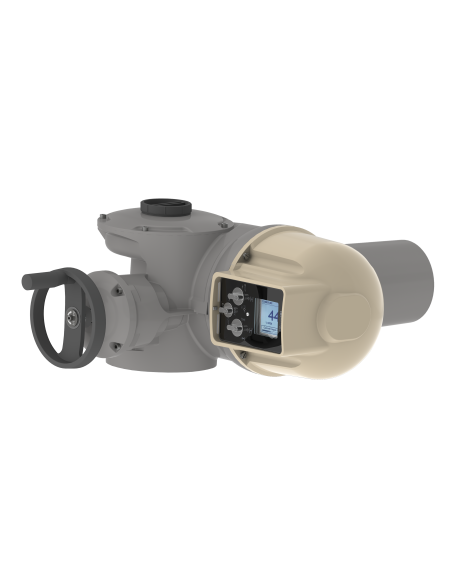

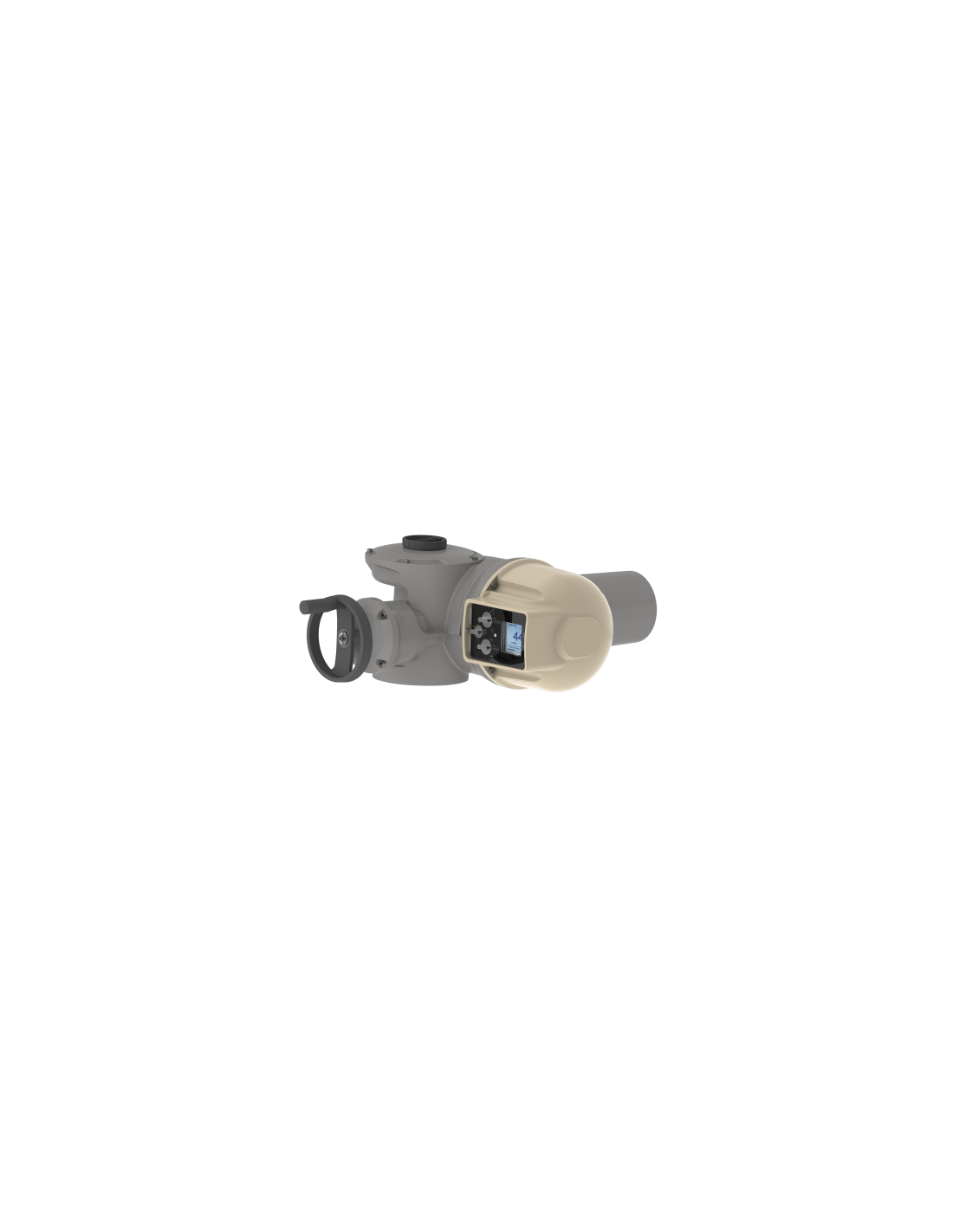

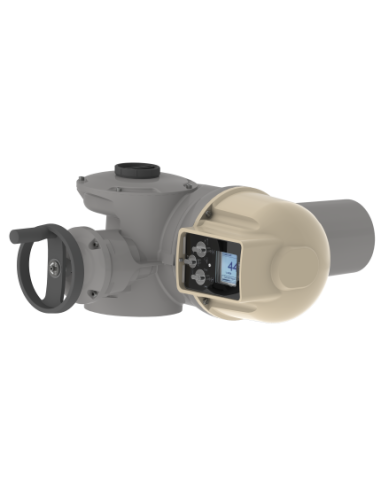

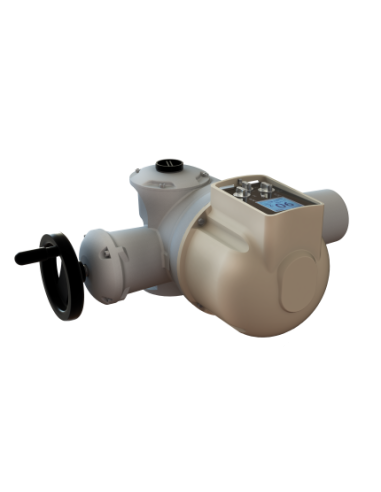

  • Large LCD display on LOGIC version for user-friendly commissioning and local command. Easily orientable (4-way direction) in few clicks

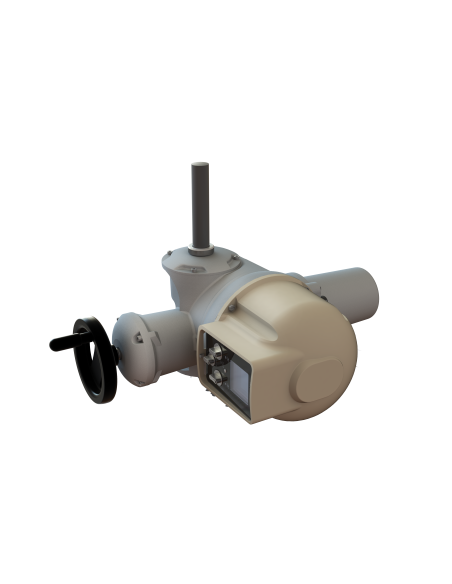

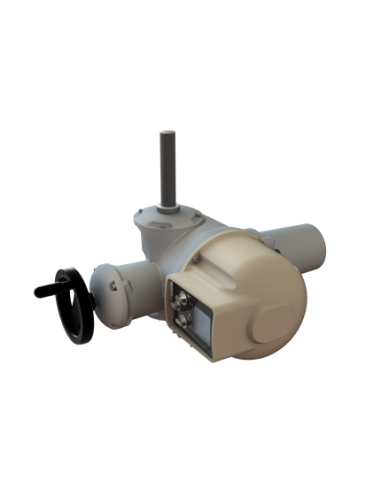

  • Product suitable for rising stem thanks to adjustable torque sensor from 40 to 100%

EASY TO MAINTAIN

  • Declutch-free manual override for quick intervention on site

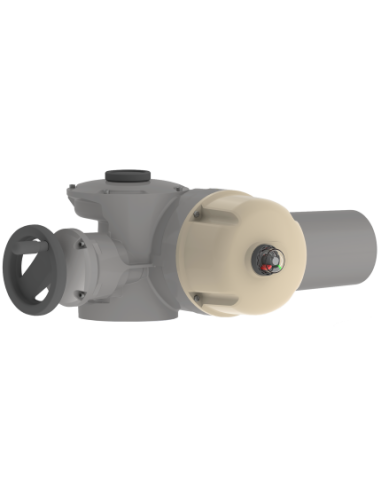

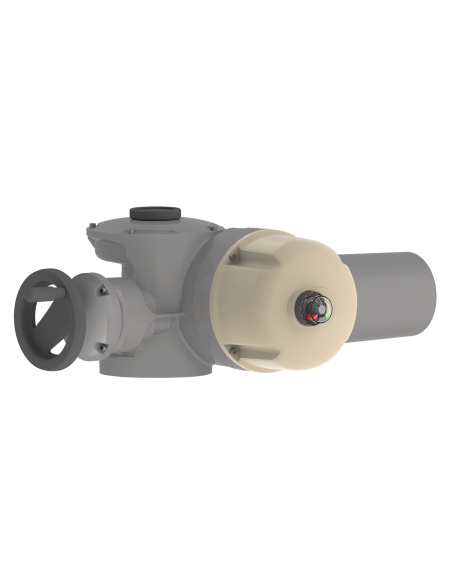

  • Mechanical position indicator on SWITCH versions: check the position of your valve at a glance
  • BC APP: Bernard Controls new mobile application for setting, operating, troubleshooting and easy access to documentation

THE MAIN FUNCTIONS OF INTEGRATED CONTROL WITH THE NEW LOGIC (V2)

  • Turn-key, time & cost-saving solution
  • User-friendly & intuitive
  • Non-intrusive setting for enhanced safety and reliability
  • Compatible with common fieldbus protocols: Modbus RTU, Profibus DPV1.
  • Bluetooth communication (as standard) to communicate with Bernard Controls’ BC App
