The Electric Actuator - AQ Range by Bernard Controls is a versatile and robust solution designed for a wide range of industrial applications. It offers a torque range from 50 to 10,000 Nm, with options available for up to 1,000,000 Nm upon request. The actuator features electromechanical switch controls and the advanced Smart LOGIC (v2) system, ensuring precise operation. It is classified for various duty and modulating applications, including On-Off (Class A), Inching/Positioning (Class B), and Modulating (Class III). The AQ Range is engineered for reliability and durability, with a compact design that includes integrated controls and a full aluminum enclosure with IP68 protection. It is suitable for extreme environments, operating in temperatures from -20°C to +70°C, with a low-temperature option down to -40°C. The actuator is multi-voltage compatible, supporting both AC and DC power sources, making it adaptable for global use. Ease of use is a key feature, with a large LCD display for straightforward commissioning and local command, a declutch-free manual override for quick on-site interventions, and the BC APP for mobile access to settings and documentation. The Smart LOGIC control offers a user-friendly, non-intrusive setup, compatible with common fieldbus protocols and Bluetooth communication for seamless integration and operation.

Datasheet and documents

Description

PRODUCT SPECIFICATIONS

TORQUE RANGE:

  • 50 to 10,000 Nm (up to 1000 Nm direct mount)
  • Up to 1,000,000 Nm on request

TYPE OF CONTROLS:

  • Electromechanical SWITCH
  • Smart LOGIC (v2)

BC DUTY & MODULATING CLASSIFICATION:

  • On-Off: Class A
  • Inching / Positioning : Class B
  • Modulating : Class III

ENVIRONMENT: IP 68 / C4 / T: -20°C ...+70°C (LOW T° OPTION -40°C)

PRODUCT BENEFITS

COMPACT & OPTIMIZED DESIGN

  • Super compact design (including integrated controls)
  • Product architecture & torque range adapted to customers’ requirements : 14 models from 50 to 10000 Nm
  • Multi-voltage (AC/DC) : suitable whatever your location on the globe
  • Optimized logistics : short delivery time

RELIABLE DESIGN

  • BERNARD CONTROLS design methodology built-up on the nuclear market highly demanding requirements
  • 80+ years of continuous experience and BC inventor of the compact quarter-turn electric actuator

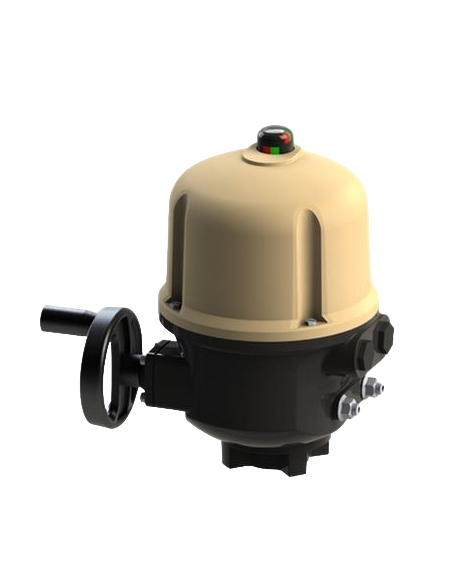

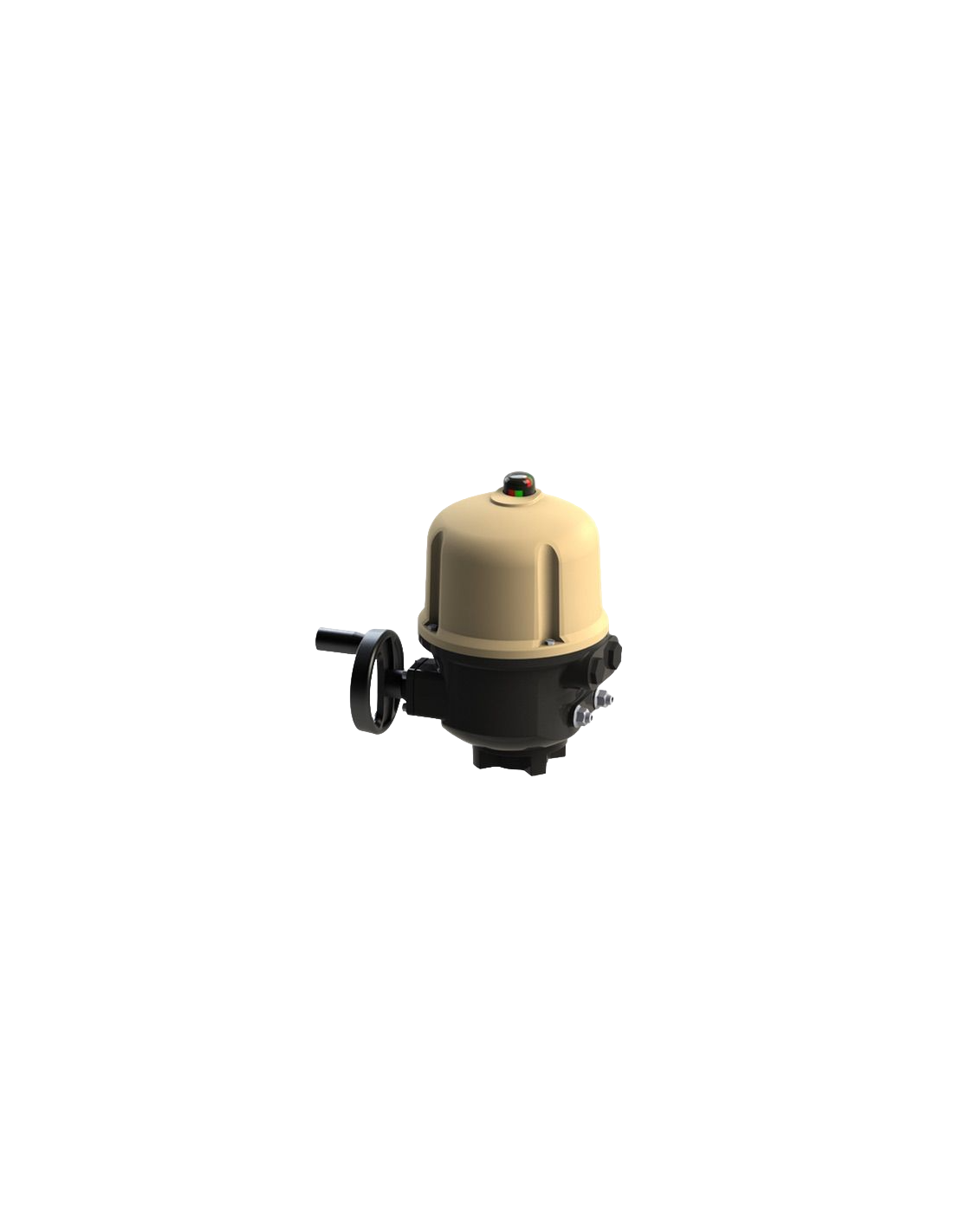

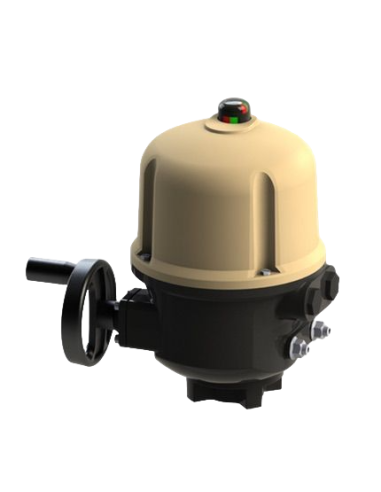

  • Heavy duty design : full aluminium enclosure protected by durable powder coating, IP68, low temperature option
  • 100% of delivered products are tested with automatic process before delivery
  • S4 Motor Service Duty on all models
  • Suitable for modulating applications (BC Class III complying with EN15714-2 Class C)

EASY TO USE

  • Easy commissioning: pre-wired version (1-phase only), set up of travel limitation system with a standard screwdriver…

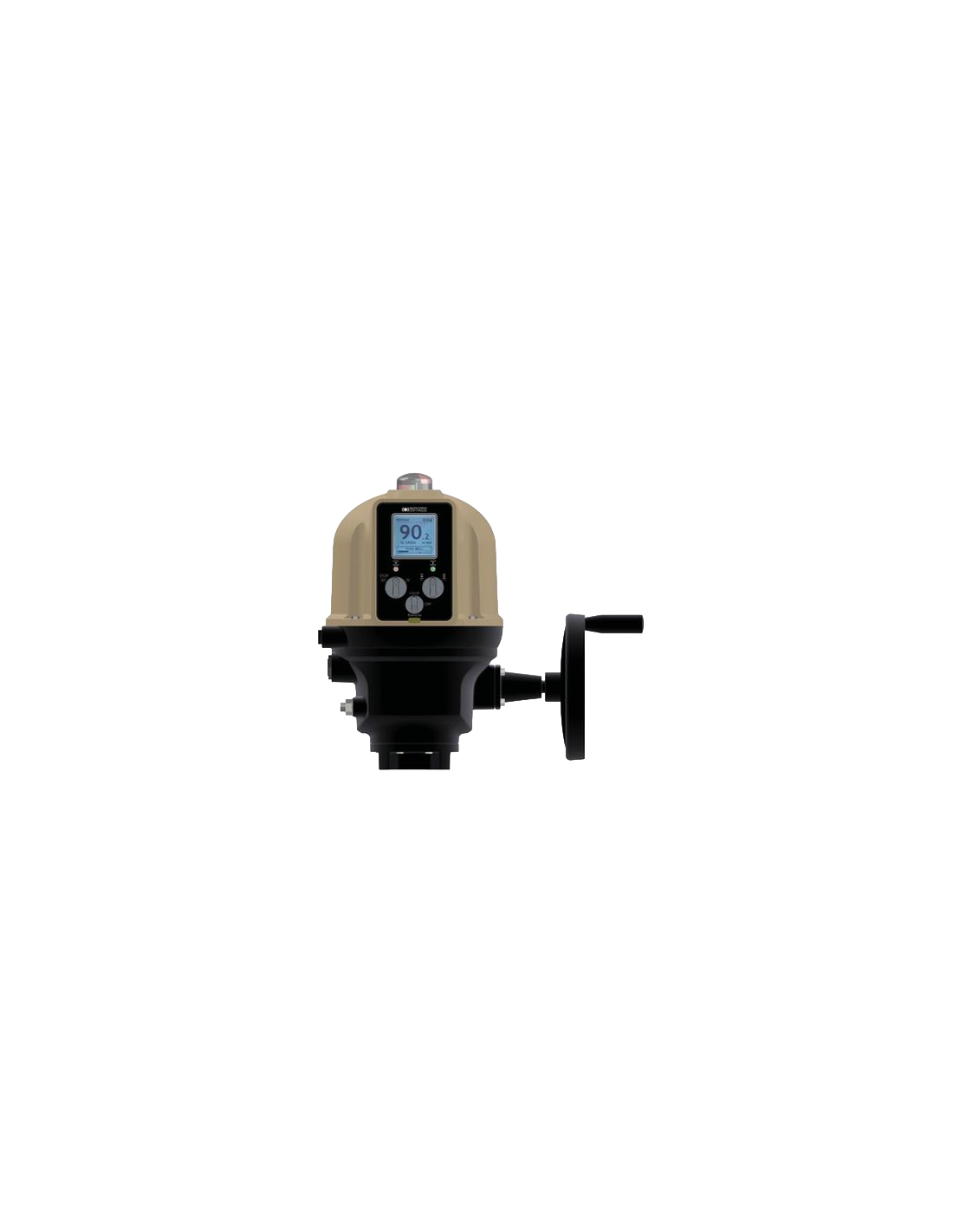

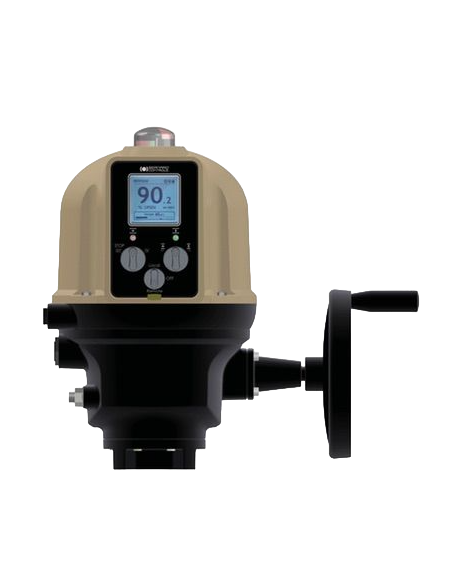

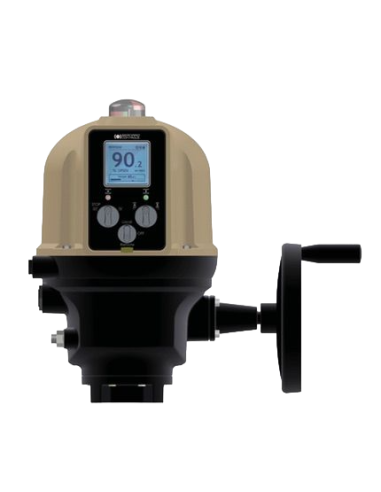

  • Large LCD display on LOGIC version for user-friendly commissioning and local command. Easily orientable (4- way direction) in few clicks
  • Declutch-free manual override: essential for quick intervention on site
  • BC APP: Bernard Controls new mobile application for setting, operating, troubleshooting and easy access to documentation

THE MAIN FUNCTIONS OF SMART CONTROL WITH THE NEW LOGIC CONTROL (V2)

  • Turn-key, time & cost-saving solution
  • User-friendly & intuitive
  • Non-intrusive setting for enhanced safety and reliability
  • Compatible with common fieldbus protocols: Modbus RTU, Profibus DPV1.
  • Bluetooth communication (as standard) to communicate with Bernard Controls’ BC Ap
