Cast Flow Valves – Technical profile of a check valve manufacturer

Cast Flow Valves S.L. is a manufacturer focused on check valves. The official product structure includes dual plate check valves, ball check valves and nozzle check valves for pumping stations, networks, viscous fluids and desalination plants.

The company states that it produces valves based on its own design and provides technical support related to valve selection and application.

Main product categories include:

  • dual plate check valves,
  • ball check valves,
  • nozzle check valves,
  • flanged check valves,
  • check valves for water networks,
  • check valves for desalination and pumping systems.

Dual plate check valves are compact non-return valves with two spring-assisted plates. They are used where short face-to-face length, quick closing and reduced reverse-flow effects are required.

Ball check valves are suitable for wastewater, viscous fluids and services where the moving element must tolerate suspended solids better than conventional hinged designs.

Nozzle check valves are used in pumping and desalination systems where dynamic response, reduced slam and controlled closing behaviour are important.

Check valve selection should include:

  • flow rate,
  • minimum flow velocity,
  • reverse flow velocity,
  • cracking pressure,
  • horizontal or vertical installation,
  • water hammer risk,
  • pressure drop,
  • body and disc material,
  • elastomer or metal seat,
  • maintenance access.

For water network engineers, pumping station designers and desalination engineers, Cast Flow valves should be selected according to hydraulic behaviour, not only nominal diameter.

Dual Plate Check Valves | Cast Flow | Philippopoulos s.a.

Dual Plate Check Valves | Cast Flow

Dual Plate Check Valves | Cast Flow
Cast Flow Valves
Cast Flow Dual Plate – Dual Plate Check Valve The Cast Flow Dual Plate is a spring-loaded check valve, available in wafer or flanged design, engineered to prevent reverse flow in liquid or gas pipelines. The two plates open under differential pressure and close via springs, without external actuators. Typical applications include pump stations, potable...
View

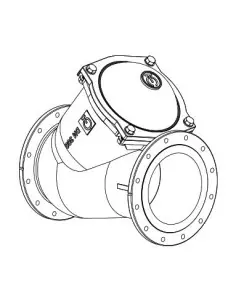

Ball Check Valves | Cast Flow | Philippopoulos s.a.

Ball Check Valves | Cast Flow

Ball Check Valves | Cast Flow
Cast Flow Valves
Cast Flow Ball Check Valves Cast Flow ball check valves are designed for use in clean water, wastewater, and viscous fluid lines. The check mechanism consists of a free-moving ball that responds to differential pressure, sealing against the seat when flow decreases or reverse pressure occurs. No actuator is required for operation. Versions and...
View

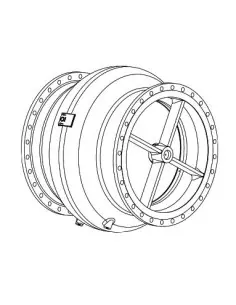

Nozzle Check Valves | Cast Flow | Philippopoulos s.a.

Nozzle Check Valves | Cast Flow

Nozzle Check Valves | Cast Flow
Cast Flow Valves
Cast Flow Nozzle Check Valve The Cast Flow Nozzle is an axial flow check valve with a short-stroke disc and return spring. The nozzle-type geometry channels flow through a Venturi effect, reducing pressure drop compared to conventional swing or dual plate designs, depending on body size and configuration. Operation is driven by differential pressure; no...
View
Retainerless Dual Plate Check Valve | Cast Flow | Philippopoulos s.a.

Retainerless Dual Plate Check Valve | Cast Flow

Retainerless Dual Plate Check Valve | Cast Flow
Cast Flow Valves
Cast Flow Retainerless Dual Plate Check Valve The Cast Flow retainerless dual plate check valve is designed without external shaft retention penetrations in the body, minimizing potential leakage paths to atmosphere. This construction is specified for oil & gas, steam, and process vapor applications where fugitive emissions must be controlled. Discs...
View
Rubber Lined Dual Plate & Ball Check Valve | Cast Flow | Philippopoulos s.a.

Rubber Lined Dual Plate & Ball Check Valve | Cast Flow

Rubber Lined Dual Plate & Ball Check Valve | Cast Flow
Cast Flow Valves
Cast Flow Rubber Lined – Rubber Lined Check Valve The Cast Flow Rubber Lined series includes ball check, dual plate, and retainerless dual plate variants with internal rubber lining. This construction is specified where corrosion or abrasion resistance is required via lining rather than full alloy body. Operation is automatic, actuated by differential...
View

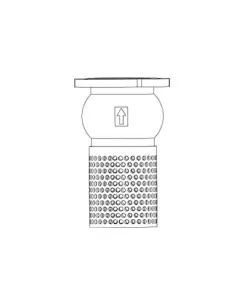

Foot Check Valves | Cast Flow | Philippopoulos s.a.

Foot Check Valves | Cast Flow

Foot Check Valves | Cast Flow
Cast Flow Valves
Cast Flow Foot Valve with Check Valve Function The Cast Flow foot valve integrates a check valve with a suction strainer basket. It is installed at the pump suction line inlet to prevent ingress of large solids and to maintain pump priming after shutdown. The assembly is not intended as a process filter; the basket retains coarse debris, while fine...
View
Axial Check Valves | Cast Flow | Philippopoulos s.a.

Axial Check Valves | Cast Flow

Axial Check Valves | Cast Flow
Cast Flow Valves
Cast Flow Axial Disc Check Valve The Cast Flow Axial Disc Check Valve is designed for axial disc movement with a return spring. Flow remains aligned with the pipeline axis, and the short disc travel enables rapid closure when flow decreases or reverses. This configuration is primarily used to limit reverse flow and mitigate hydraulic shock (water hammer)...
View
High Pressure Check Valve | Cast Flow | Philippopoulos s.a.

High Pressure Check Valve | Cast Flow

High Pressure Check Valve | Cast Flow
Cast Flow Valves
Cast Flow HP Dual Plate – High Pressure Dual Plate Check Valve The Cast Flow HP Dual Plate is a dual plate check valve designed for installation between flanges in piping systems where short face-to-face dimensions and prevention of reverse flow at elevated pressure ratings are required. The two plates open under differential pressure and are returned by...
View
