Discover Efficiency: Futura line | FS - Accessories - Filters | Hafner

Upgrade your industrial workspace with the Futura line | FS - Accessories - Filters | Hafner, designed to deliver reliable performance and ensure clean, contaminant-free operations. This advanced filter system is engineered for those who value smooth machinery function and consistent results.

Key Features & Benefits of the Futura line | FS - Accessories - Filters | Hafner

  • Superior Filtration Technology: The Futura line filters out dust, particles, and impurities with high efficiency, protecting sensitive equipment and extending service life.
  • Robust Construction: Built from quality materials, it withstands harsh industrial environments, ensuring your filter lasts longer and works at full capacity with minimal maintenance.
  • Easy to Install: Designed for straightforward installation, this filter fits seamlessly into your existing setup, minimizing downtime and boosting productivity.
  • Energy Saving: By keeping systems clean, the Futura line helps reduce energy consumption and running costs. Clean filters mean machines don’t have to work as hard.
  • Low Maintenance: Developed for convenience, the filter’s design makes checking and replacing elements simple and quick, keeping your operations running smoothly.
  • Reliable Protection: Safeguard vital machinery from clogging and wear caused by contaminants, reducing repair needs and unexpected failures.

With the Futura line | FS - Accessories - Filters | Hafner, daily operations become easier and safer. Advanced filtration keeps compressed air and fluids clean, meaning tools and machines operate at their best—day in, day out.

Whether you’re outfitting a new facility or upgrading your current system, this accessory is your partner for better performance and greater peace of mind. Choose the Futura line for dependable, efficient protection.

Datasheet and documents

Description

KAFI

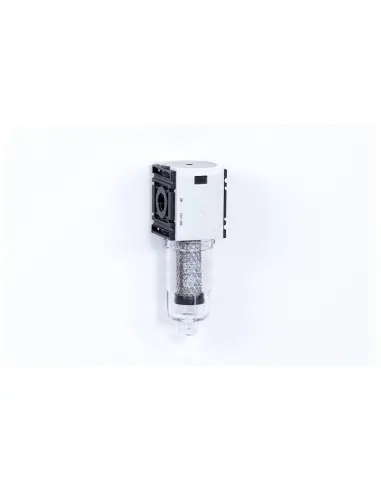

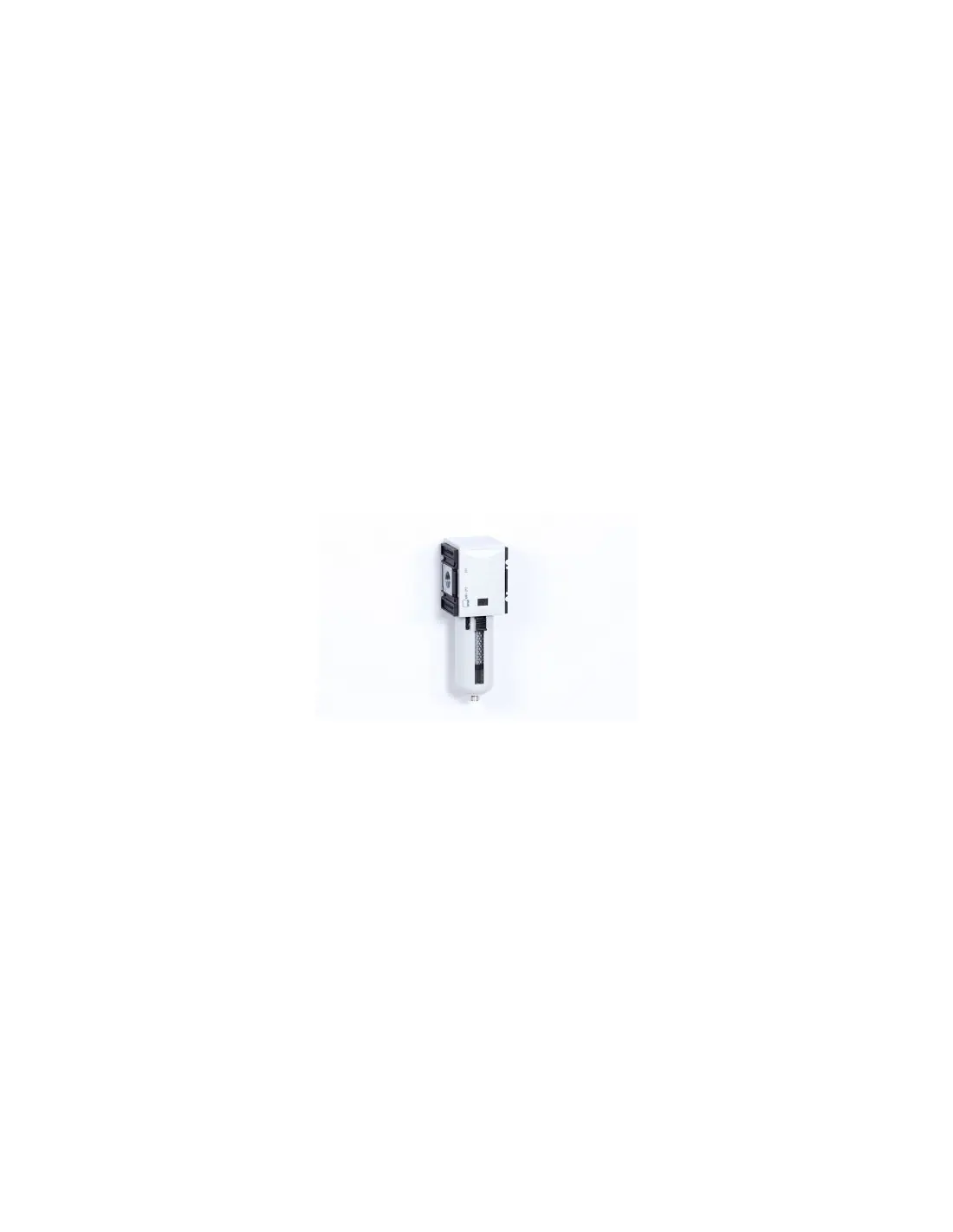

Activated carbon filter | 16 bar | residual oil content: 0,005 mg/m³ | Futura line

Type numberConnectionAir-flowOperating pressureResidual oil contentUnit size
KAFI-114G 1/4"1100 l/min0...16 bar0,005 mg/m3FS-1
KAFI-138G 3/8"1100 l/min0...16 bar0,005 mg/m3FS-1
KAFI-238G 3/8"2100 l/min0...16 bar0,005 mg/m3FS-2
KAFI-212G 1/2"2100 l/min0...16 bar0,005 mg/m3FS-2
KAFI-434G 3/4"6000 l/min0...16 bar0,005 mg/m3FS-4
KAFI-41G 1"6000 l/min0...16 bar0,005 mg/m3FS-4

KAFI-0

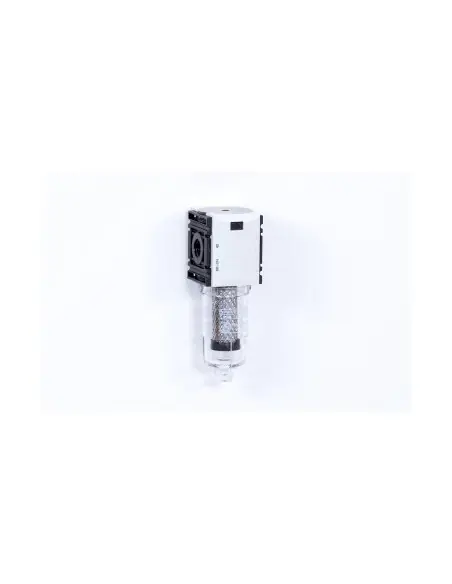

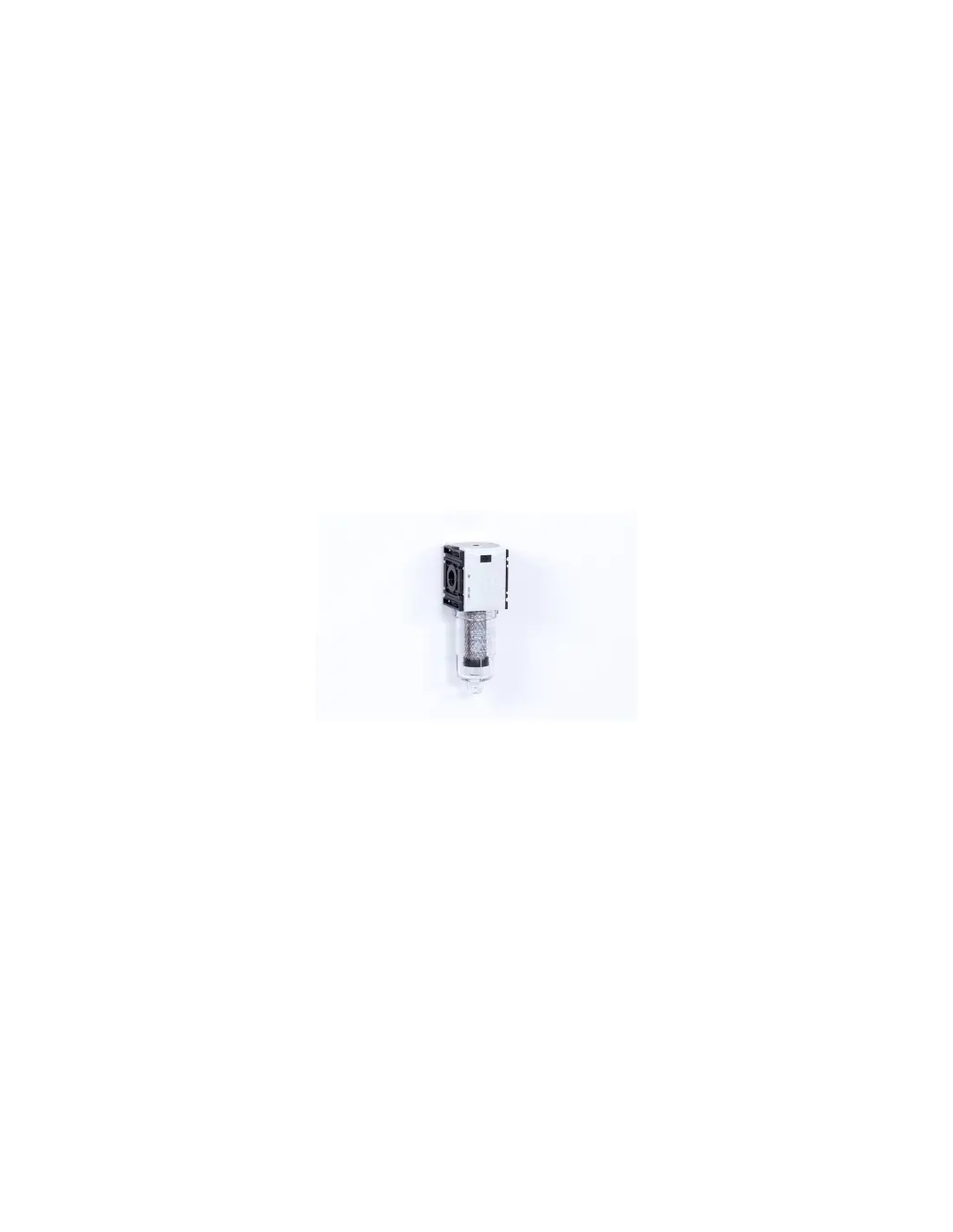

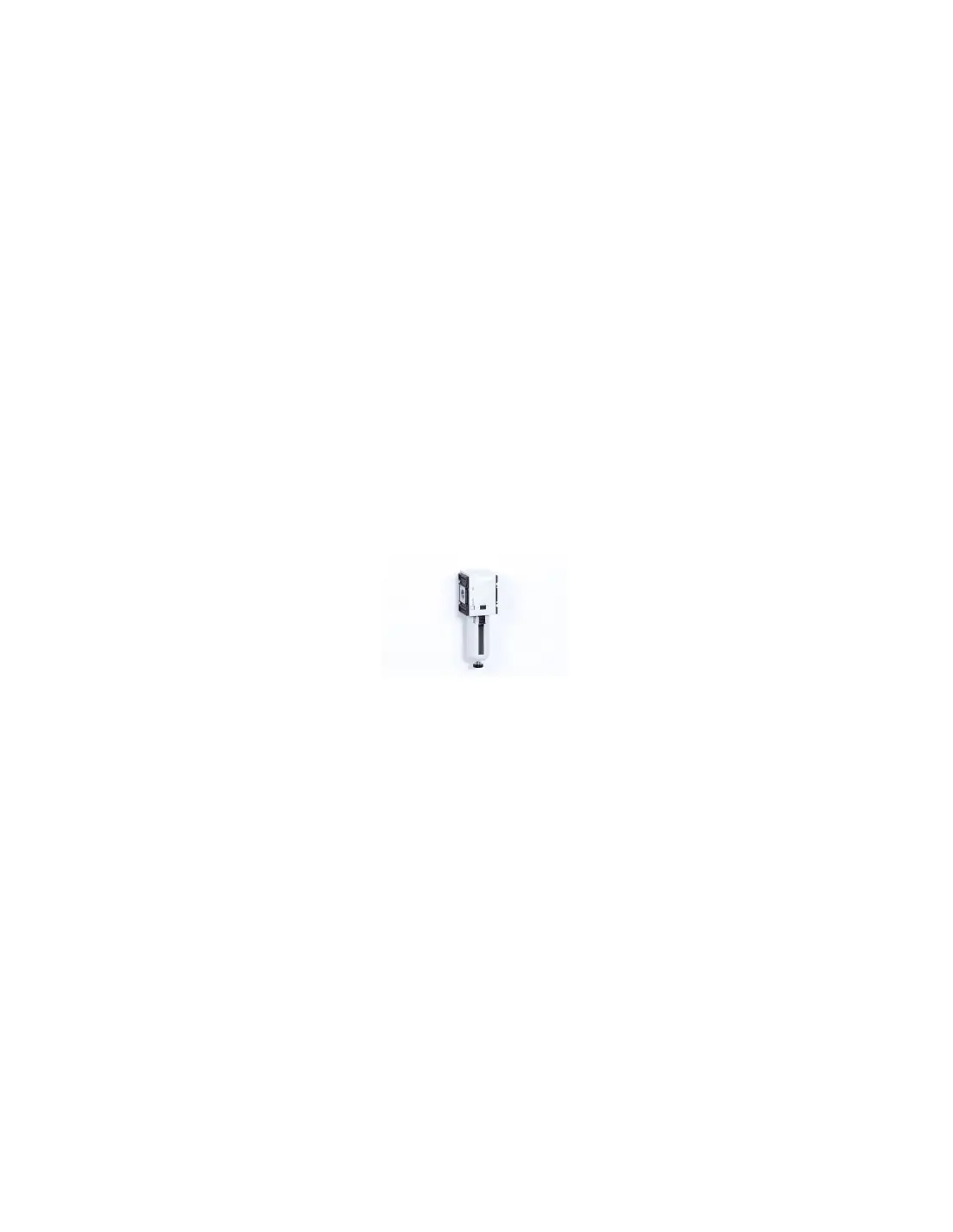

Activated carbon filter | 12 bar | residual oil content: 0,005 mg/m³ | Futura line - mini

Type numberConnectionAir-flowOperating pressureResidual oil contentUnit size
KAFI-014G 1/4"1100 l/min0...12 bar0,005 mg/m3FS-0

KFIL HA

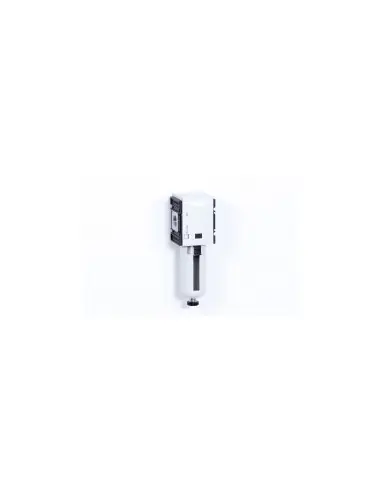

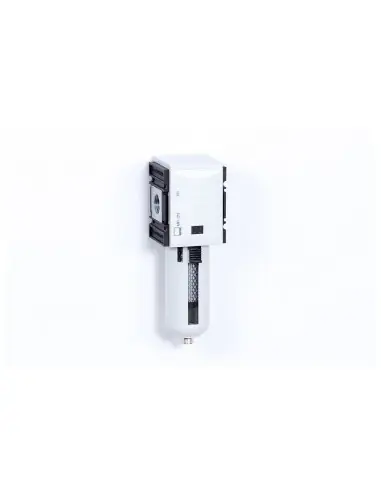

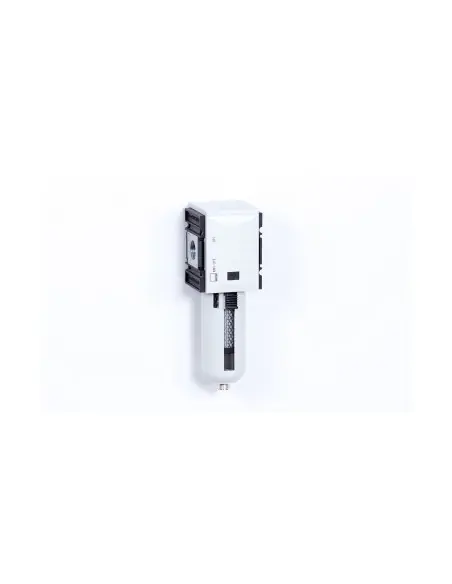

Filter | semiautomatic drain | 16 bar - 5 micron | Futura line

Type numberConnectionAir-flowOperating pressureFilter finenessUnit size
KFIL-114 HAG 1/4"2200 l/min1,5...16 bar5 micronFS-1
KFIL-138 HAG 3/8"2400 l/min1,5...16 bar5 micronFS-1
KFIL-238 HAG 3/8"3500 l/min1,5...16 bar5 micronFS-2
KFIL-212 HAG 1/2"3500 l/min1,5...16 bar5 micronFS-2
KFIL-434 HAG 3/4"7800 l/min1,5...16 bar5 micronFS-4
KFIL-41 HAG 1"7800 l/min1,5...16 bar5 micronFS-4

KFIL-0 HA

Filter | semiautomatic drain | 12 bar - 5 micron | Futura line - mini

Type numberConnectionAir-flowOperating pressureFilter finenessUnit size
KFIL-014 HAG 1/4"1000 l/min1,5...12 bar5 micronFS-0

KFIL AM

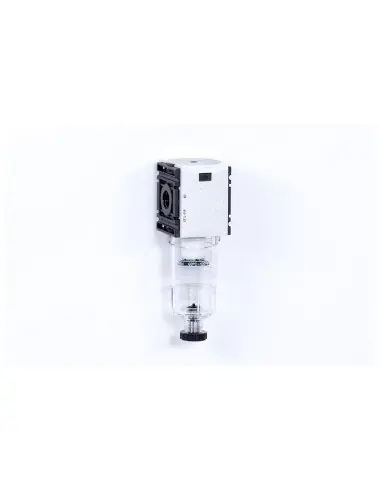

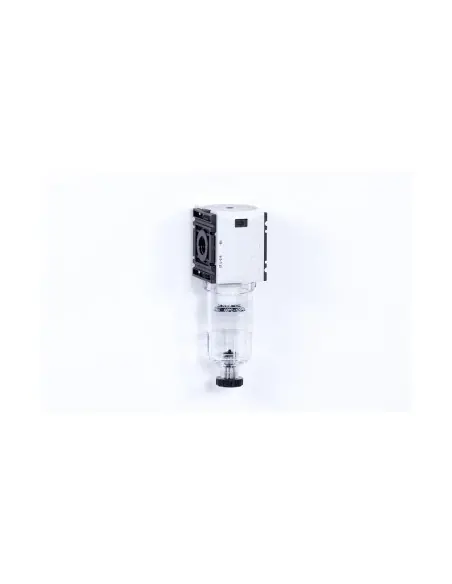

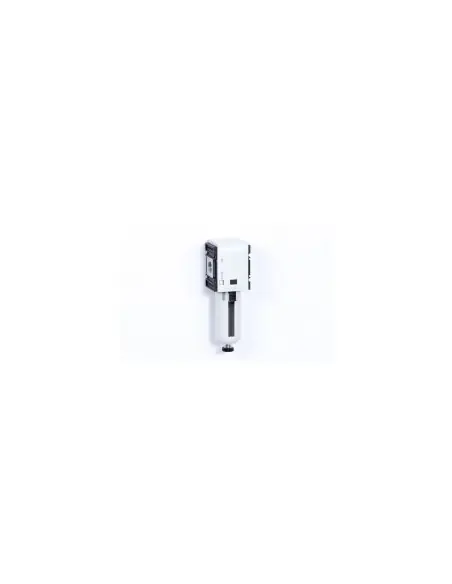

Filter | automatic drain | 16 bar - 5 micron | Futura line

Type numberConnectionAir-flowOperating pressureFilter finenessUnit size
KFIL-114 AMG 1/4"2200 l/min1,5...16 bar5 micronFS-1
KFIL-138 AMG 3/8"2400 l/min1,5...16 bar5 micronFS-1
KFIL-238 AMG 3/8"3500 l/min1,5...16 bar5 micronFS-2
KFIL-212 AMG 1/2"3500 l/min1,5...16 bar5 micronFS-2
KFIL-434 AMG 3/4"7800 l/min1,5...16 bar5 micronFS-4
KFIL-41 AMG 1"7800 l/min1,5...16 bar5 micronFS-4

KFIL-0 AM

Filter | automatic drain | 12 bar - 5 micron | Futura line - mini

Type numberConnectionAir-flowOperating pressureFilter finenessUnit size
KFIL-014 AMG 1/4"1000 l/min1,5...12 bar5 micronFS-0
