Surge Relief Valves - SR 6.2 | Mankenberg

Surge Relief Valves - SR 6.2 | Mankenberg: Reliable Protection for Your Water System

Guard your water systems against dangerous pressure surges with the Surge Relief Valves - SR 6.2 | Mankenberg. Designed for seamless operation, this valve is an essential safety solution that ensures constant performance and peace of mind for your entire setup. No more worry about sudden pressure changes or damage to your equipment—this valve is here to keep everything running smoothly.

Features and Benefits of the Surge Relief Valves - SR 6.2 | Mankenberg

  • Automatic Pressure Management: The valve responds instantly when unwanted pressure builds up, opening automatically to release excess pressure. This helps to prevent pipe bursts, leaks, and costly repairs.
  • Rugged Construction: Crafted from premium stainless steel, the Surge Relief Valves - SR 6.2 | Mankenberg is highly durable and rust-resistant, ensuring a long lifespan even in harsh environments.
  • Compact & Simple Design: Its user-friendly construction allows for easy installation and minimal maintenance, saving you time and effort. The compact size means it fits perfectly in different system configurations.
  • Accurate Pressure Relief: The advanced internal mechanism ensures precise activation at the set pressure, providing reliable and consistent protection for your water pipelines and components.
  • Safe and Efficient: By automatically limiting dangerous pressure spikes, the valve safeguards people, property, and your entire water system’s performance—helping you avoid unexpected downtime.
  • Wide Application Range: Ideal for irrigation, municipal water supply, industrial processes, and more. The valve adapts easily to new and existing water systems of all sizes.

The Surge Relief Valves - SR 6.2 | Mankenberg stands out for its blend of smart engineering and practical usability. Its innovative spring mechanism reacts instantly, opening just when needed and closing smoothly once safe conditions are restored. This means your operations stay safe without your constant supervision.

With easy-to-adjust pressure settings, you can fine-tune the valve to match your unique system’s requirements. Its sturdy body resists wear, corrosion, and temperature fluctuations, keeping your water flow stable over time. The clear instruction manual makes setup a breeze, and you can trust the valve to work reliably day in, day out.

Choose the Surge Relief Valves - SR 6.2 | Mankenberg for advanced protection, efficiency, and convenience—all in a compact, dependable package. Make water system safety stress-free and ensure everything flows just the way it should.

Datasheet and documents

Description

Product features

Surge relief valves are used for the decay of pressure surges and of permanent overpressures within pipeline systems.

Standard

  • ANSI or DIN flanges
  • Coating of the body: primer and top coat
  • MOD (manual opening device) for function control, bleeding or flushing
  • Vertical installation position
  • Transport lugs

Options

  • Coating as per DIN EN ISO 12944 C5-M, DIN 55633
  • Special materials such as Duplex steel ...
  • Various materials for O rings and seals, suitable for your medium
  • Version for horizontal installation position incl. bridge (supporting structure)
  • Enlarged MOD „manual opening device“ for viscous media
  • Flow switch on the outlet side
  • Media separator
  • Tamper-proof adjustment elements for protection against unauthorized access
  • Exchangeable filter for the pilot system (SR 6.2P)
  • Contamination level indicator for the pilot system (SR 6.2P)
  • Special connection upon request

Technical data

DN
100 - 400
PN
16 - 100
p1
max. 160 bar
Kvs
400 - 2400 m3/h
Cvs
465 - 2791 US gal/min
T
- 30 up to 130 °C
- 22 up to 266 °F

Liquids up to 130 °C | soft seal | body steel, stainless steel

Advantages

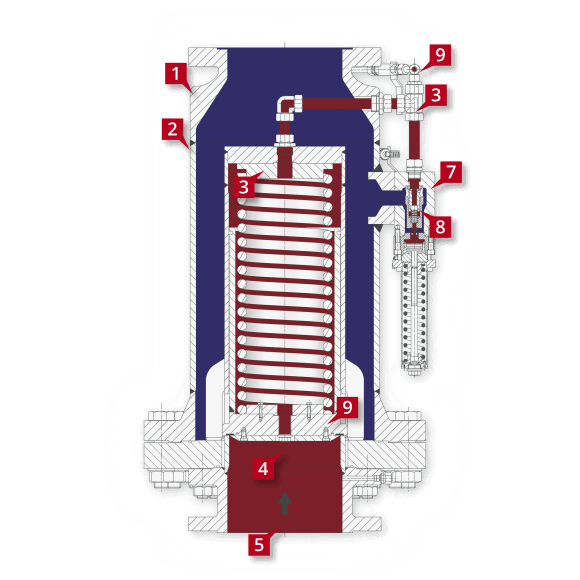

sr6-2-schnitt
1

Flow-optimized construction (CFD)

Higher flow rate at lower differential pressure

2

Valve in welded construction

Low weight compared with others, adapted overall length, special materials and individual flange standards possible, short delivery times

3

Internal parts, pilot valve, piping and operating elements made of CrNiMo steel, painting as per DIN ISO 12944 Teil 5 C5-M

High corrosion protection

4

Earthquake-proof

Can be used worldwide

5

Vacuum-tight

Suitable for operation in the vacuum range

6

MOD Manual Opening Device

Function control, bleeding, flushing, filling of the valve

7

Pilot control, closing time and response pressure can be adjusted

Optimal response behaviour, gentle closure protecting the plant

8

Spin-on filter in the pilot system

Filter replacement is possible during ongoing operation, trouble-free function

9

Balanced cone, customer-specific Kvs value

High seat tightness up to response pressure, smaller slop tanks possible, independent from counterpressure

Options

a

Second pilot valve

Switchable response pressure

b

Flow indicator and / or stroke sensor

Function monitoring, logging

Inlet Pressure

Outlet Pressure
