Pressure reducing valves - DM 586 | Mankenberg

Experience Superior Flow Control with Pressure Reducing Valves - DM 586 | Mankenberg

Achieve consistent, reliable pressure management in your industrial systems with the Pressure Reducing Valves - DM 586 | Mankenberg. Built for robust performance, this valve is the trusted choice for maintaining a safe and efficient environment in demanding applications. Whether you are dealing with steam, gases, or liquids, the DM 586 ensures your pressure stays right where you need it, every time.

Features and Benefits of Pressure Reducing Valves - DM 586 | Mankenberg

  • Exceptional Reliability: The DM 586 is engineered for continuous, trouble-free operation. Its sturdy design minimizes maintenance and downtime, so you can focus on production, not repairs.
  • Precise Pressure Control: Built with accuracy in mind, this valve delivers stable outlet pressure even when flow rates change. Enjoy smooth, predictable performance in all your processes.
  • Versatile Applications: The DM 586 is suitable for a wide range of industrial uses, including water treatment, chemical plants, and manufacturing lines. Its adaptability makes it a must-have for any dynamic operation.
  • Long-Lasting Durability: Crafted from high-grade materials, the DM 586 stands up to harsh conditions. Strong seals and a corrosion-resistant body ensure a long service life, even in tough environments.
  • Simple Installation: The compact, user-friendly design allows for quick setup and easy integration into existing systems, reducing installation time and effort.

Ideal for industries that demand precise control and dependable safety, the Pressure Reducing Valves - DM 586 | Mankenberg offers peace of mind with every use. Its advanced spring-loaded mechanism automatically adjusts to fluctuations, keeping pressure constant without manual intervention.

For operations where every second counts and every detail matters, the DM 586 is the solution that delivers. Make the smart choice for your industrial pressure management needs and experience the difference in stability, efficiency, and value.

Standard (Options)
  • DIN
Connection (Options)
  • Flanged
Material (Options)
  • 1.4404
Pressure Rating (Options)
  • PN 16

Description

Product features

Standard

  • Completely made of stainless steel (1.4404 / 316L)
  • Deep-drawn body with excellent surface quality
  • Corrosion-resistant, very lightweight and compact
  • Soft seal
  • Non-rising adjusting screw
  • Quick-release body clamp ring

Options

  • ATEX version
  • Pressure gauge connection
  • Leakage line connection and sealed adjusting screw
  • Elastomers as per FDA and USP Class VI
  • Electro-pneumatic control
  • Aseptic or ANSI flanges, NPT, welding ends

Technical data

DN
20 - 50
G
3/4 - 2
PN
16
p1
up to 16 bar
p2
0.003 - 0.95 bar
Kvs
7 - 22 m³/h
T
130 °C



Advantages

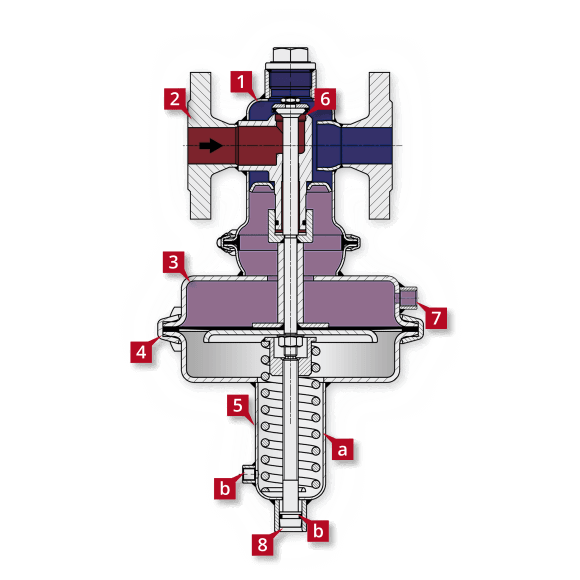

dm586-schnitt
1

Stainless steel (1.4404 / 316L), deep-drawn, corrosion-resistant, light and compact

Long operational lifespan, manageable installation, minimum space required

2

Versatile connection options: Aseptic flanges, clamp connections, DIN or ANSI flanges, welding ends ...

No adapters or fitting pieces required

3

Excellent standard surface quality

Easy to clean

4

Mankenberg clamp system

Easy maintenance

5

Many control modules available

Most precise control, also millibar ranges

6

Balanced cone

Downstream pressure control independent from the upstream pressure

7

Sense line connection

High control accuracy

8

EASY-CHECK – Non-rising adjusting screw

Function visible from outside, simple and precise setpoint adjustment, unchanged overall height

Options

a

Electro-pneumatic control

b

Leakage line connection and sealed adjusting screw

Suitable for flammable and hazardous media

Inlet Pressure

Outlet Pressure

Control Pressure
