The Hydraulic Pressure Control Valves - 750-01 Pressure Relief, Sustaining & Back Pressure Valve | Cla-Val is a reliable solution designed to ensure safety and consistent performance in any fluid handling system. Built for durability and precise control, this advanced valve offers all-in-one pressure relief, sustaining, and back pressure functions. If you need peace of mind knowing your system is protected from sudden pressure surges and operates smoothly, this valve delivers the answer.

Features & Benefits of Hydraulic Pressure Control Valves - 750-01 Pressure Relief, Sustaining & Back Pressure Valve | Cla-Val

  • All-in-One Control: This valve combines three essential functions—relief, sustaining, and back pressure control—in a single, compact unit. That means less maintenance and easy installation for you.
  • Automatic Pressure Regulation: The 750-01 valve automatically opens or closes to keep system pressure at safe, preset levels. It reduces the risk of equipment damage and keeps operations running without interruption.
  • Reliable Performance: Designed with quality materials and proven hydraulic technology, it works consistently in demanding environments, from industrial facilities to municipal water systems.
  • Energy Efficiency: By preventing pressure spikes and unnecessary energy loss, the valve helps save on energy costs over time.
  • Simple Operation: Even for those new to hydraulic systems, this valve is easy to understand and use. Clear settings and automatic action make pressure management hassle-free.
  • Low Maintenance: The robust design is built to last, with minimal need for adjustments or servicing. This means less downtime and fewer worries.

With the Hydraulic Pressure Control Valves - 750-01 Pressure Relief, Sustaining & Back Pressure Valve | Cla-Val, you gain more than just a valve—you get a safeguard for your entire hydraulic setup. Protect your pumps and pipes from damaging overpressure, maintain stable flow, and enjoy reliable, worry-free operation. For anyone who values safety, efficiency, and simple controls, this is an excellent choice.

Datasheet and documents

Description

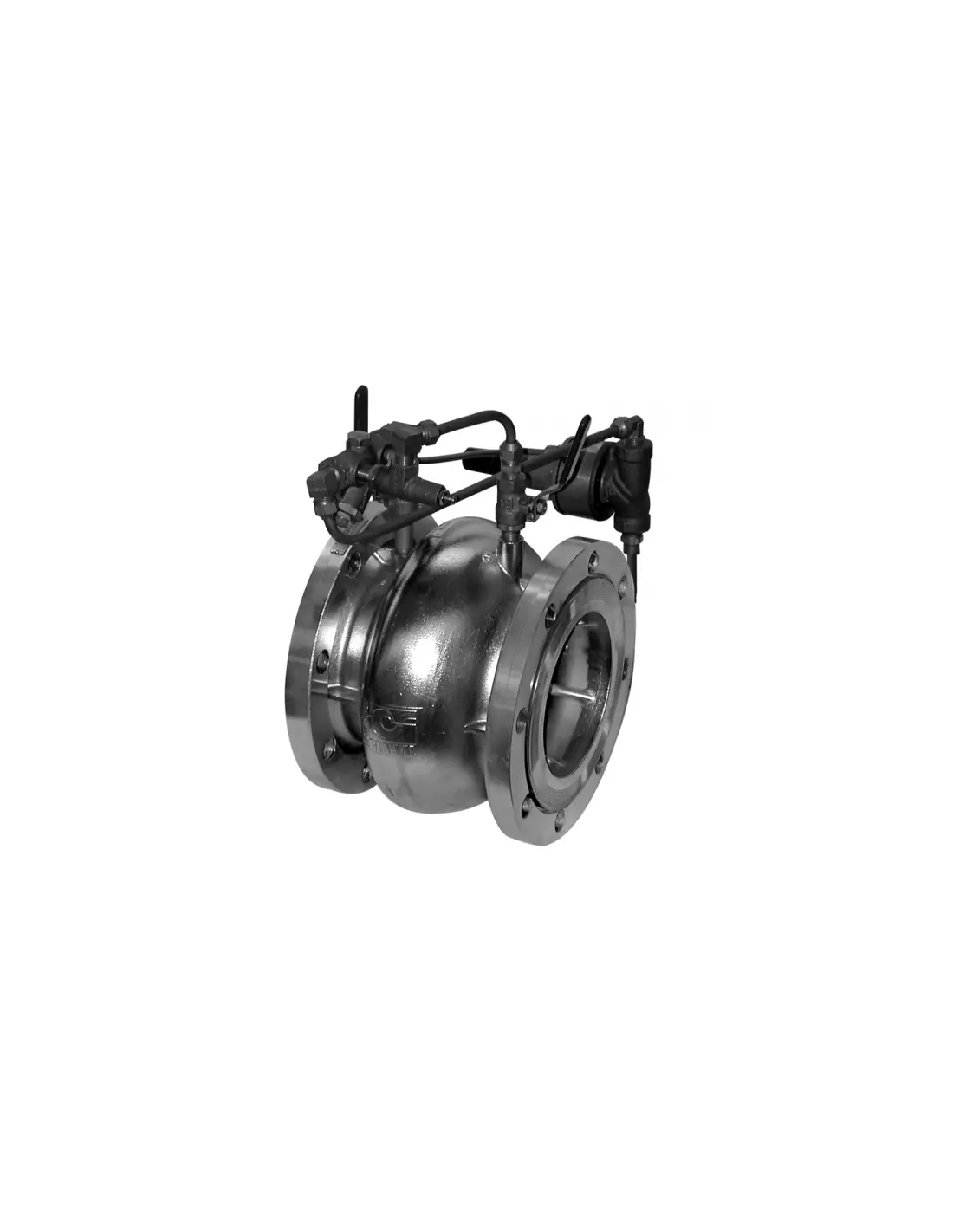

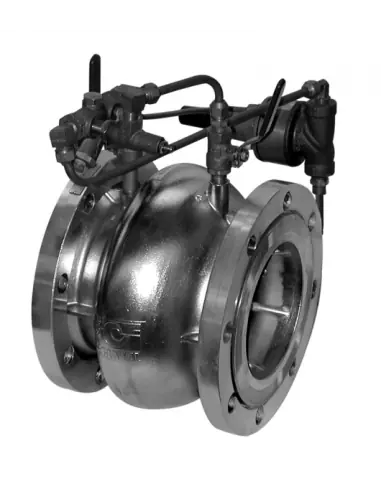

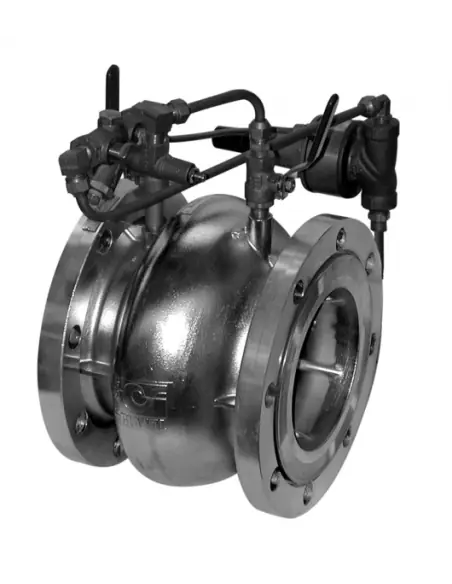

The Cla-Val Model 750-01 Pressure Relief, Sustaining and Back Pressure Valve is a hydraulically operated pilot actuated automatic control valve. The main valve consists of only two parts, a stainless steel body and an elastomeric liner or control element.

The main valve opens when inlet pressure begins to exceed a preset pressure and will allow enough flow to maintain that inlet pressure. In pressure sustaining service, Model 750-01 will conserve pressure in an upper system during periods of high demand in a system below. In pressure relief service, this valve will modulate to exhaust line pressure to keep it below a set point maximum. On a pump bypass system, the valve will allow flow back to the pump suction when pump discharge pressure exceeds the set point.

Cla-Val Model 750-01 will control from no flow to full open flow without any chattering or slamming under low flow conditions. For this reason, on by-pass, relief, and pressure sustaining service, there is never a region of control instability.
