Hydraulic Flow Control Valves - X52E Orifice Plate Assembly | Cla-Val

Hydraulic Flow Control Valves - X52E Orifice Plate Assembly | Cla-Val: Precision and Reliability for Every Water System

The Hydraulic Flow Control Valves - X52E Orifice Plate Assembly | Cla-Val is expertly engineered to deliver consistent and accurate water flow regulation in any hydraulic system. Whether you’re managing municipal water distribution or a commercial irrigation setup, this orifice plate assembly adapts seamlessly to your needs, providing peace of mind and operational efficiency.

Discover how the X52E model stands out with its advanced design, ensuring precise water flow control and longer system lifespan. Even if you’re new to water engineering, this valve makes your system easier to manage and maintain.

Key Features & Benefits of Hydraulic Flow Control Valves - X52E Orifice Plate Assembly | Cla-Val

  • Effortless Flow Regulation:
    The X52E Orifice Plate Assembly lets you fine-tune water flow quickly and accurately, preventing waste and helping maintain steady pressure throughout your system.
  • Durable Construction:
    Made from robust, corrosion-resistant materials, this assembly withstands tough environments and daily use, reducing repair costs and downtime.
  • Universal Compatibility:
    Designed to integrate effortlessly with various hydraulic systems, it’s suitable for both new installations and upgrades.
  • Low Maintenance:
    Enjoy fewer maintenance checks, thanks to a design that resists clogging and build-ups, keeping operations smooth for longer periods.
  • Precise Measurement:
    The orifice plate ensures accurate water flow measurement, helping you monitor usage and avoid over-consumption.
  • Safe and Reliable:
    By maintaining consistent flow rates, it protects pipes and equipment from pressure surges, extending the life of your entire water delivery system.

Integrating the Hydraulic Flow Control Valves - X52E Orifice Plate Assembly | Cla-Val into your system is straightforward, with clear installation guidelines that make setup easy for experienced professionals and novices alike. Its user-friendly design means you can be confident your water system is always optimized, without the need for complicated adjustments.

Choose the X52E Orifice Plate Assembly from Cla-Val and experience a new standard in water flow control – simple to use, built to last, and reliable in every situation.

Datasheet and documents

Description

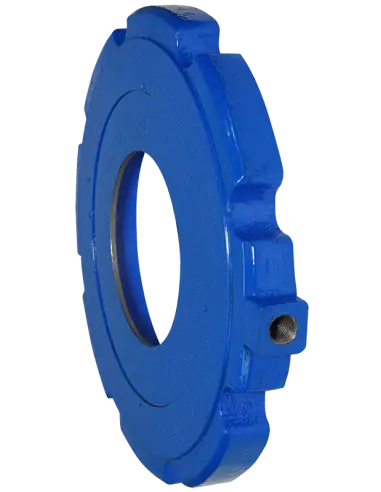

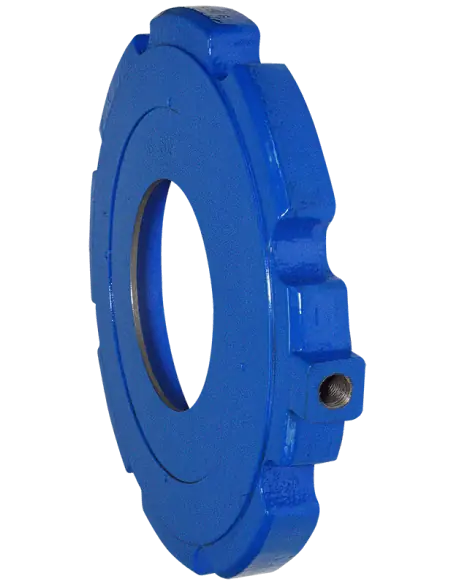

The Cla-Val Model X52E Orifice Plate Assembly is typically used with Cla-Val flow control valves. The orifice plate is an essential component used to generate a specific, predictable pressure drop in the system. The X52E uses a wafer design holder that offers a compact lightweight assembly that is easy to install. The X52E has a Chamfered “Inlet” side so even after installation, correct orientation can be easily verified.

We recommend the installation of this assembly with the sensing port to the side of the pipeline to prevent air pockets and obstructions in the sensing line. Installation adjacent to a butterfly valve is not recommended as the orifice plate assembly may interfere with the opening of this type of valve.
